Radar Basics
An introduction to radar principles and the typical system configurations used on board vessels.
- Marine Radar
15" MULTI-COLOR LCD RADAR
Model FAR-1426
Enhance your safety at sea and enjoy more productive fishing with the new Target Analyzer function!
25 kW, High-Performance Marine Radar with Chart Plotter
– Simple operation with “point-and-click” menu functionality –
- Fishing Vessels
Features
Target Analyzer function* spots hazardous targets instantly!
FURUNO's new technology makes it possible to distinctly display targets closing in, while detecting and eliminating sea surface reflection and rain patches. With the Target Analyzer function turned on, each moving target, rain patches, and sea surface reflection are colored according to the degree of the hazard. This helps improve your safety and situational awareness by displaying different, easy to see colors.
- Heading data and position data required.
Target Analyzer, Echo Average, and Rain Echo Hatching: ON
- Sea surface: Green
- Rain: Gray
- Moving targets: Red or Pink*
- Closing in targets: Pink or White*
- Colors can be selected by the setting.
Fast Target Tracking™ (TT) to Immediately Grasp Your Surroundings

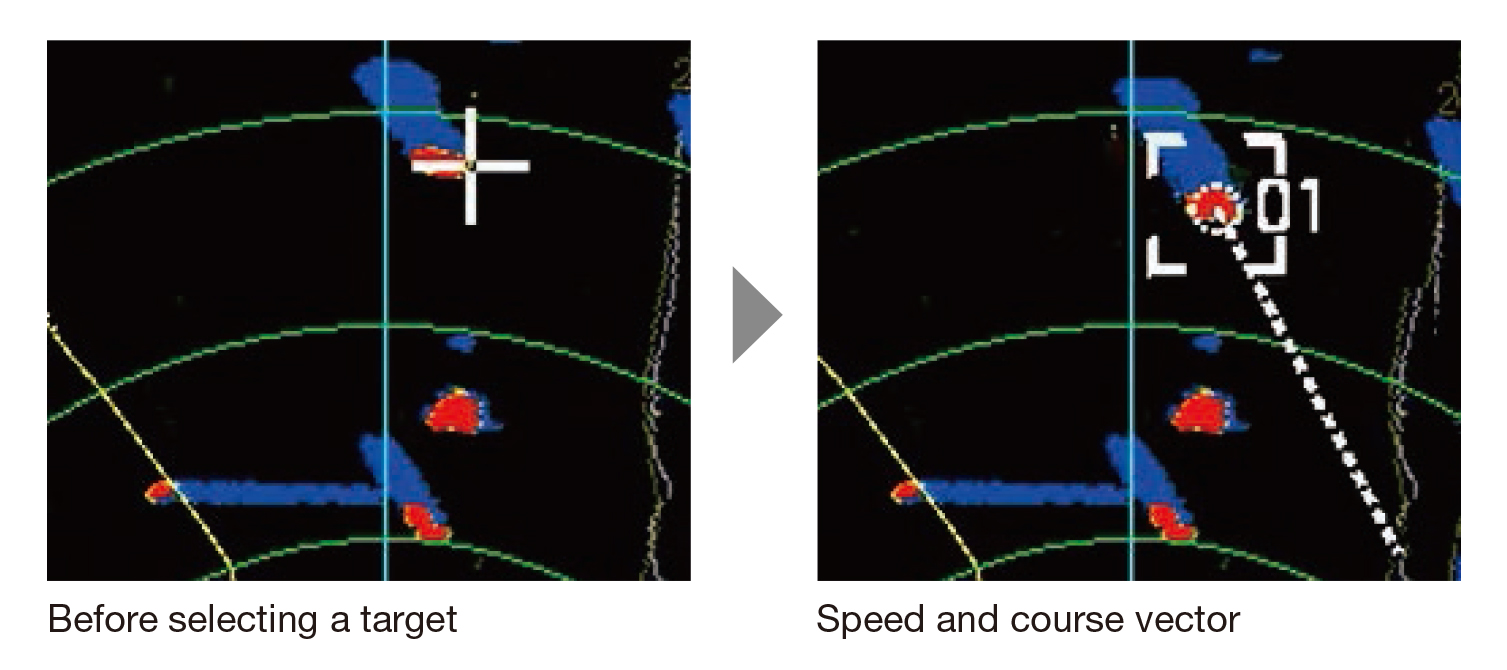

After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels course and speed is made easier.
- Heading data and position data required.
Chart overlay on radar presentation

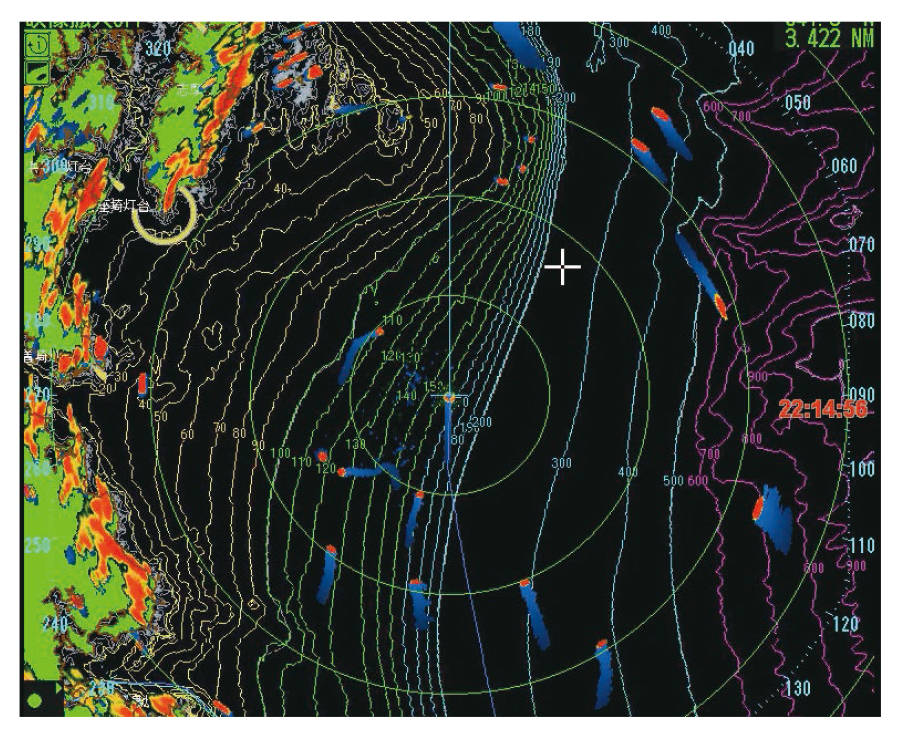

By overlaying the radar presentation with MapMedia vector charts, you can clearly recognize coastlines and buoys at a glance. Records of your vessel’s track points and waypoints will help memorizing shing spots. North-up, Course-up, and Head-up direction modes are available.
Automatic Clutter Elimination (ACE) for unprecedented echo clarity

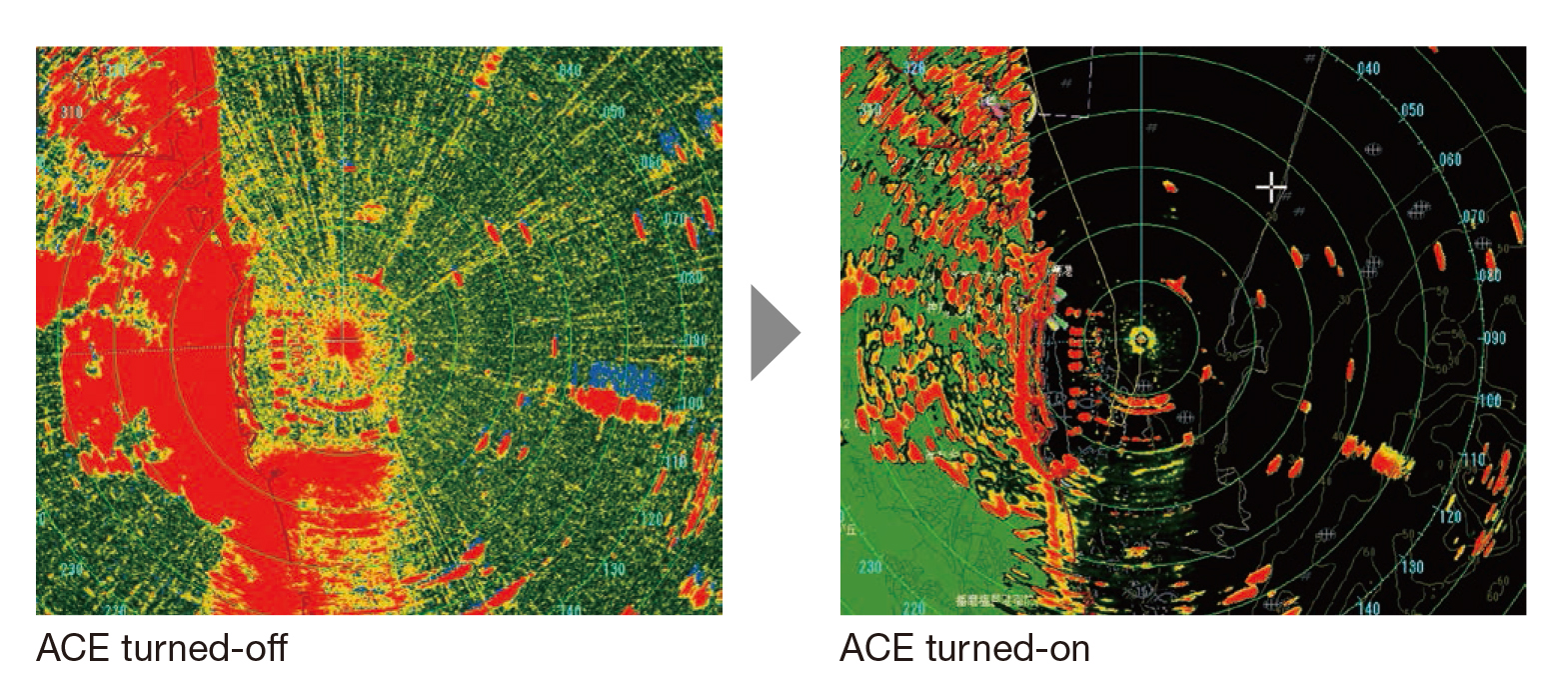

Quickly adjust the radar image with the push of a single button. With ACE activated, the system automatically adjusts clutter reduction lters and gain control according to sea and weather conditions selected by the user (calm/rough sea/hard rain). You will be free from the trouble of adjusting the image and be able to concentrate on the operation of the vessel.
Seamless Zoom and Cursor operation
Easy Operation
Enjoy a very intuitive operation, with the use of shortcut keys and the trackball.
Space-saving and straightforward installation with the display unit built-in processor
Both Portrait and landscape are available to fit customers’ preference.

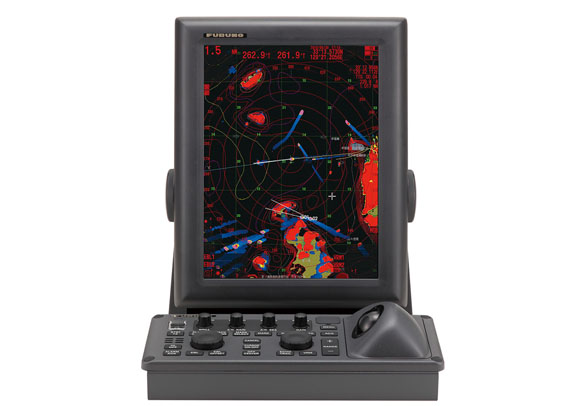

Control Unit RCU-029 (Standard)

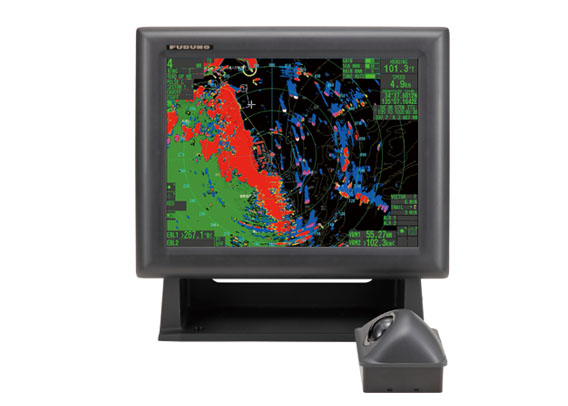

Trackball Controller Unit RCU-030 (Option)
Easily Upgrade from FR-8002/8005 Series
Utilizing the antenna of FURUNO FR-8002/8005 series, you can easily install this new radar FAR-1416/1426 and upgrade the radar function.
Specifications
Antenna
Peak Output Power
25 kW
Frequency
9410±30 MHz (X-band), P0N
Beam Width (Horizontal)
XN12A: 1.9°, XN13A: 1.4°
Beam Width (Vertical)
22°
Range Scales
0.125 to 96 NM
Antenna Rotation Speed
24 rpm or 48 rpm*
*Specify the antenna length and rotation speed when ordering.
Weight
XN12A: 25 kg
XN13A: 27 kg
Environment
Temperature
Antenna Unit: -25 °C to +55 °C
Display Unit: -15 °C to +55 °C
Waterproofing
Antenna Unit: IP26
Display Unit: IP22
Control Unit: IP22
Power Supply
Power Supply/Consumption Current
24 VDC: 5.6 A max
Equipment List
Standard
Display Unit
RDP-155
Control Unit
RCU-029

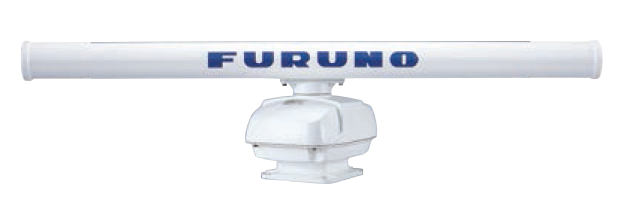

Antenna Unit
RSB-0070 or RSB-0073
specify when ordering
Antenna Cable
Spare Parts & Installation Materials
Option
Flush Mount Kit
Trackball Controller Unit
RCU-030
Remote Controller
RCU-019
AD Converter
AD-100
Rectifier
RU-1746B-2/RU-3424
AD-DC Power Supply Unit
PR-240/PR-850A
Switching Hub
HUB-100
LAN Cable
2 m/5 m/10 m
NMEA2000 Connector
Cable Assembly

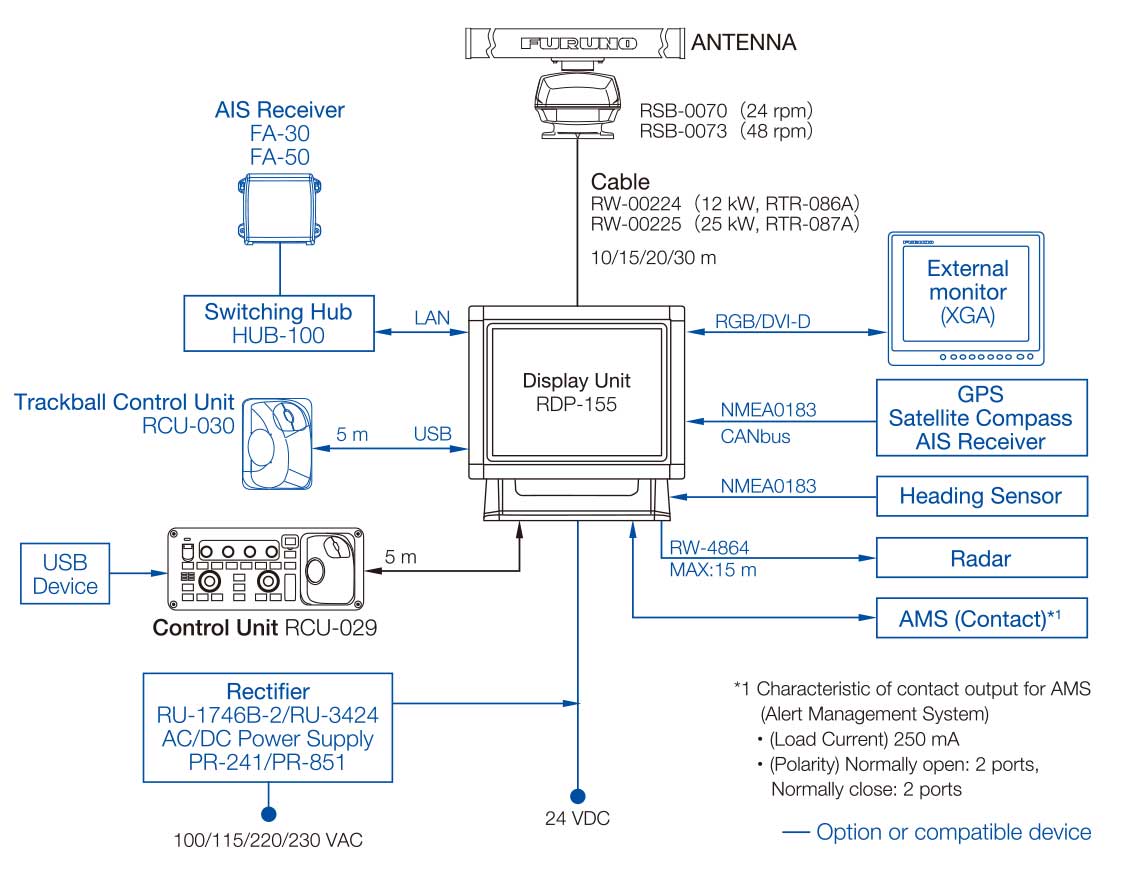

Interconnection Diagram
