High Power X-band Fishing Radar (50kW)

Model FAR-2258

Powerful X-band Fishing Radar

New high performance Radar with excellent signal processing technology offering high resolution echoes and with long range detection. Perfect for fishing.

Fishing Vessels

Downloads

Features
Specifications

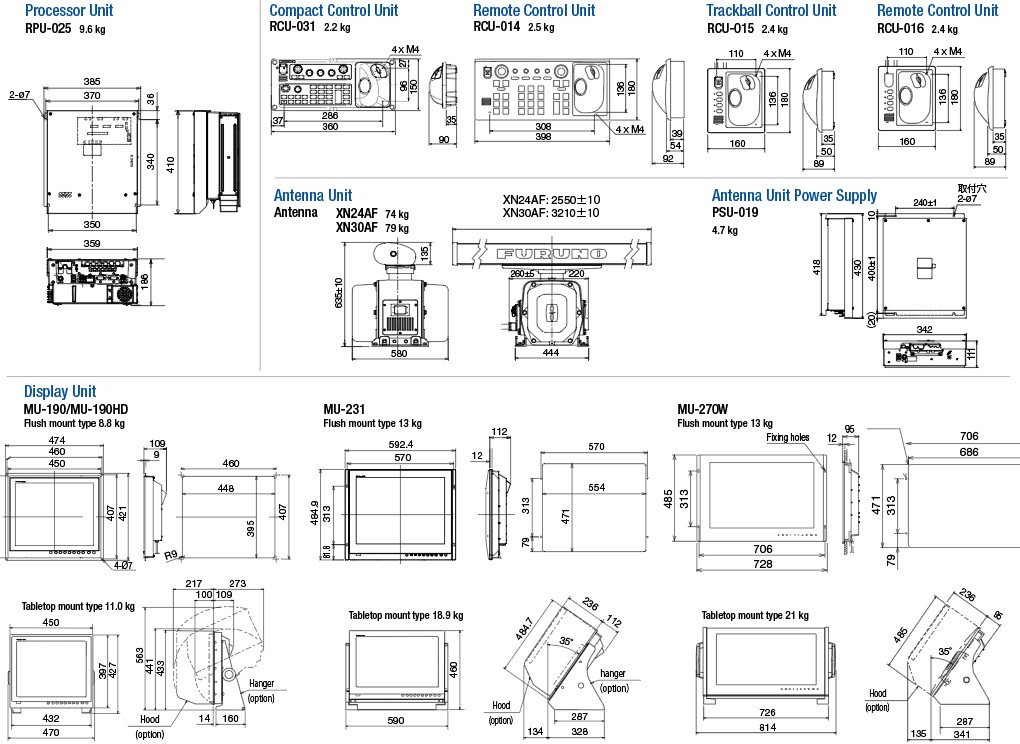

Drawing

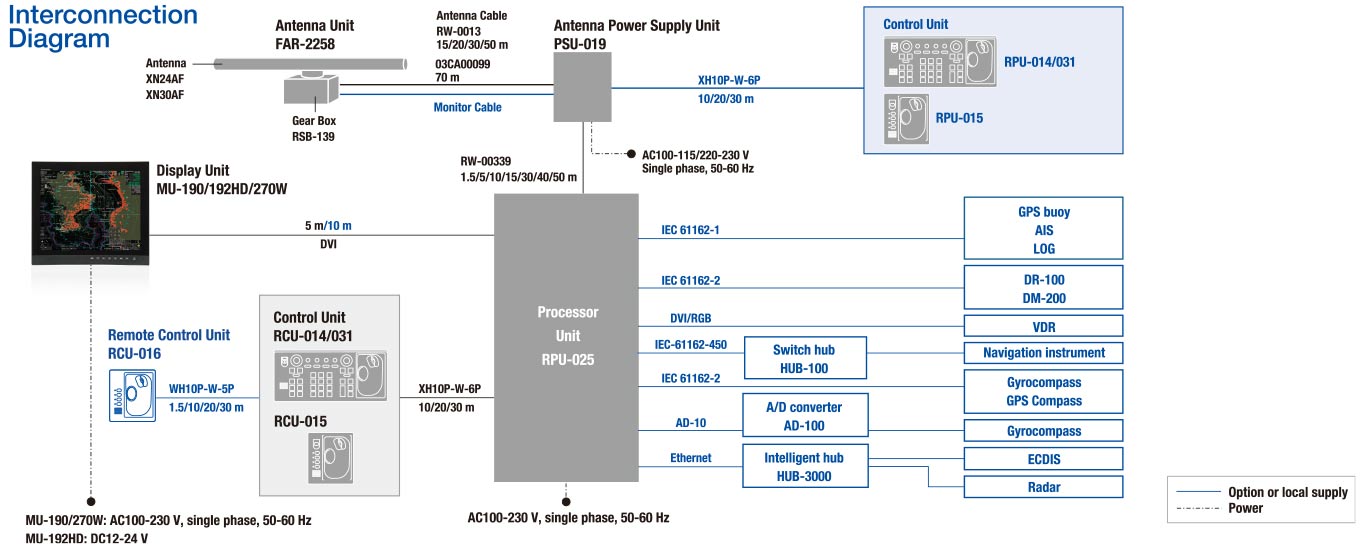

Interconnection Diagram
Downloads
Contact

Features

Powerful Radar delivering stronger and farther detection with very high resolution

With a high output power of 50 kW, it is an excellent Radar for long-range detection. The new and improved receiver reduces noise and ensures that even the
weakest echoes are not missed and are presented clearly.

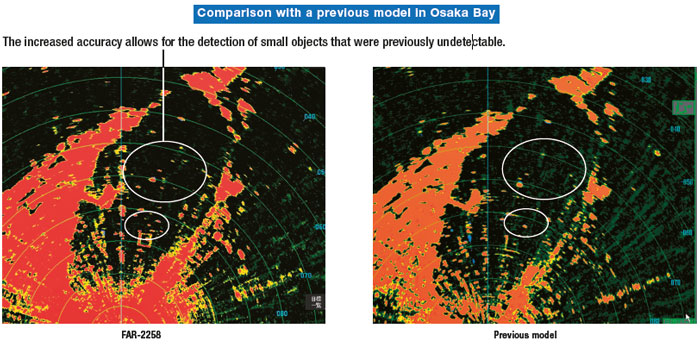

Improved detection performance compared to previous models

Function keys support up to 32 customizable features & settings

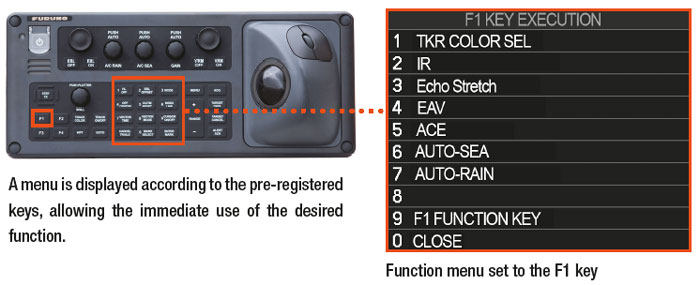

Each key can be assigned a single function or multiple functions. When [multiple functions] is selected, up to eight functions can be assigned to one key, which can be utilized by pressing the function key and then the numeric keypad. It is possible to assign up to 32 functions.

A total of 40 origin marks can be entered

The number of origin marks that can be entered has been increased from 20 (previous model) to a maximum of 40. By displaying a list of origin marks, the distance and direction from the registered position to the cursor can be determined at a glance. Additionnally, users can choose between “sea fixed” (blue) and “land fixed” (green), plus, land fixed origin marks are backed up even after the power is turned off.

Easily identify fishing grounds with colored track lines

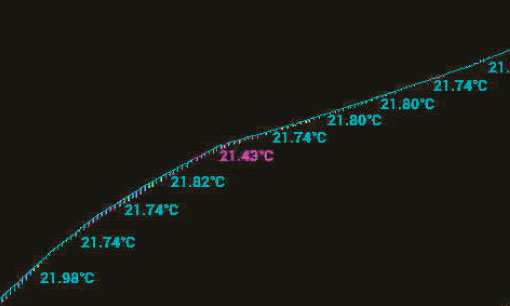

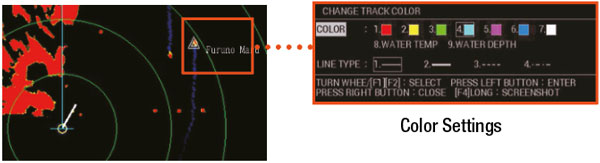

The water temperature is automatically displayed in the vessel track line, with the color changing according to water temperature. This allows the user to intuitively
understand changes in water temperature and easily identify fishing grounds.

Intuitive off-center function with trackball

To off-center the display, the user can either move the cursor to the desired area or do so directly with the trackball when the cursor is hidden, which allows for
intuitive use.

Fishing gear echoes easily visible with the addition of the Echo Average feature (EAV) and its wide dynamic range

Echo Average with the wide dynamic range
The new wider dynamic range EAV removes unwanted echoes and clearly shows the shape of the net

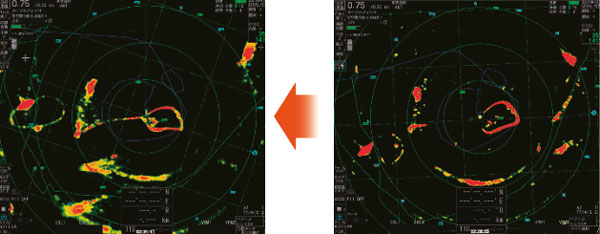

The new wide dynamic range of the EAV function allows the display of both weak and strong echoes in a richly colored image as shown on the right.

Did you Know?

EAV stands for Echo Average
It is a signal processing technology that suppresses unnecessary echoes on the screen by utilizing image correlation techniques, making it easier to distinguish echoes

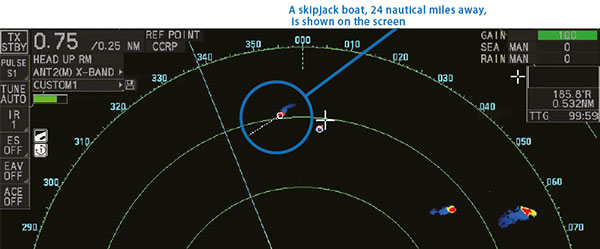

TT target acquisition up to a distance of 48 NM

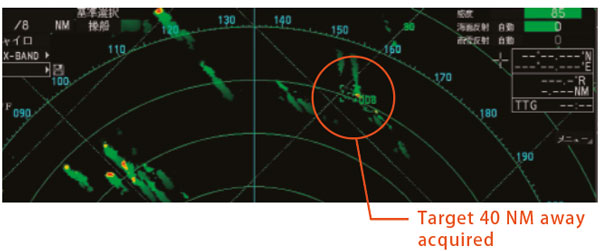

The FAR-2258 is capable of capturing targets within a range of 48 NM, whereas the previous model was limited to a distance of 32 NM. This allows users to keep a close eye on more distant targets.

AIS customization helps you keep an eye on other vessels

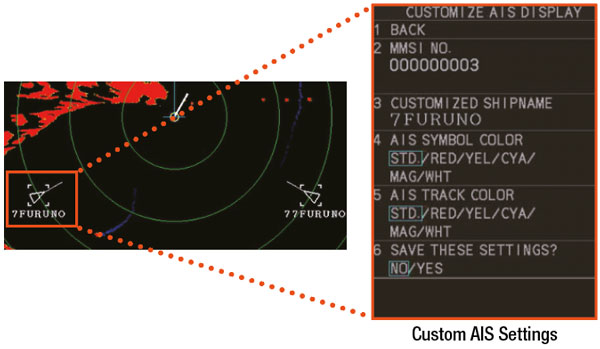

Users can register a color and a ship track color for each AIS target, so that you can identify other ships at a glance. (Maximum number of entries is 100).

TT custom settings make it easier to distinguish other ships!

Users can set the name, color, shape and track color of the acquired TT target. Custom TT settings can be pre-registered (up to 10) and these can be quickly assigned to targets.

Specifications

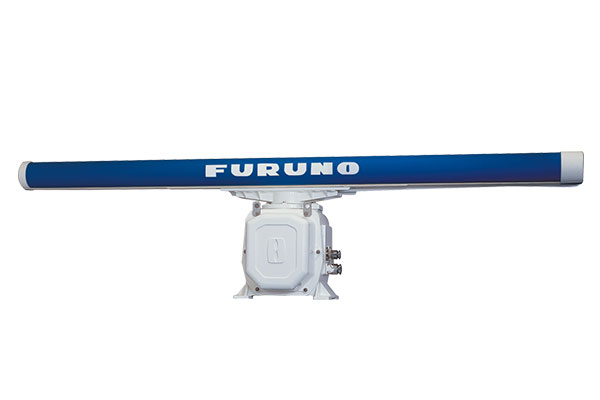

Antenna

Peak Output Power

50 kW

Type

240 / 300 cm Slotted Array

Frequency

9410 MHz ±30 MHz, P0N

Beam Width (Horizontal)

0.95° (240 cm), 0.75° (300 cm)

Beam Width (Vertical)

20°

Range Scales

0.125 ～ 96 NM

Antenna Rotation Speed

24 rpm

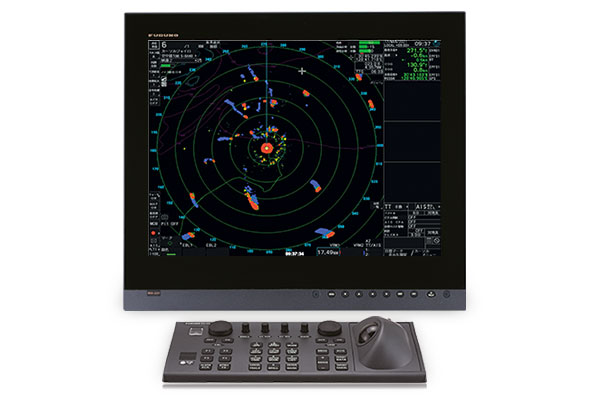

Display

Display Unit

19-inch Color LCD, 1280×1024 (SXGA)
23.1-inch Color LCD, 1600×1200 (UXGA)
27-inch Color LCD, 1920×1200 (WUXGA)

Display Modes

Head-up, STAB head-up, Course-up, North-up, (RM/TM), Stern-up

Other Mode/Functions

Target Tracking (TT), Plotter function, AIS

Environment

Temperature

Antenna Unit: -25℃ to + 55℃ (Storage: -25℃ to + 70℃）
Other: -15℃ to + 55℃ (Storage: -20℃ to + 70℃)

Waterproofing

Antenna Unit: IP56
Processor Unit/Display Unit: IP22
Control Unit: IP20 (RCU-014/015/016), IP22 (RCU-031)
Hub: IP20 (HUB-100), IP22(HUB-3000)

Power Supply

Power Supply/Consumption Current

Antenna Unit
100-115/220-230 VAC: 3.1/1.5 A, Phase, 50-60 Hz

Processor Unit
100-230 VAC: 2.2-1.1 A, Phase, 50-60 Hz

Display Unit
[MU-190] VAC100-230: 0.5-0.4 A, 1 phase, 50-60 Hz
[MU-192HD] VDC12-24 / 4.9-2.3 A
[MU-270W] VAC100-230: 0.7-0.4 A, 1 phase, 50-60 Hz

Hub (Option)
100-230 VAC: 0.1 A, 1 Phase, 50-60 Hz
