- Marine Radar

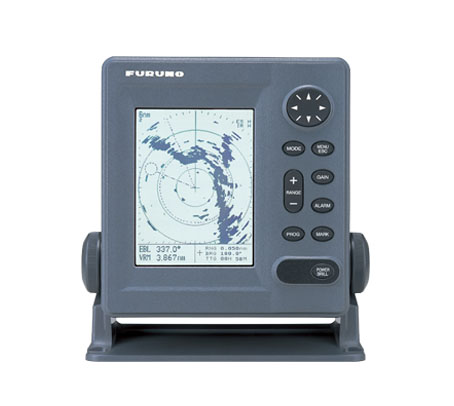

6" SILVER LCD RADAR
Model MODEL1623
High-performance 2.2 kW transceiver in a 15" radome
The MODEL 1623 is a high contrast LCD radar designed for pleasure craft and small fishing boats. Radar echoes are presented in four shades of gray on the 6 Silver Bright LCD.
- Recreational Boats
Features
High Contrast 6" Silver Bright LCD
13 range scales from 0.125 to 16 nm
Optional GPS/DGPS/WAAS navigator shows waypoint position with "lollipop mark"
Low power consumption 8 Watts in Watchman mode
Reverse video feature for effective use at night
Improved short range target detection by using narrower pulselengths and dual IF bandwidths
Zoom window for close observation of a specific area
Screenshots

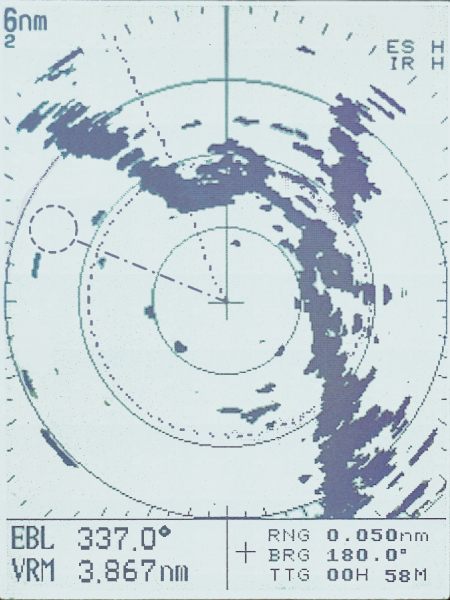

NORMAL

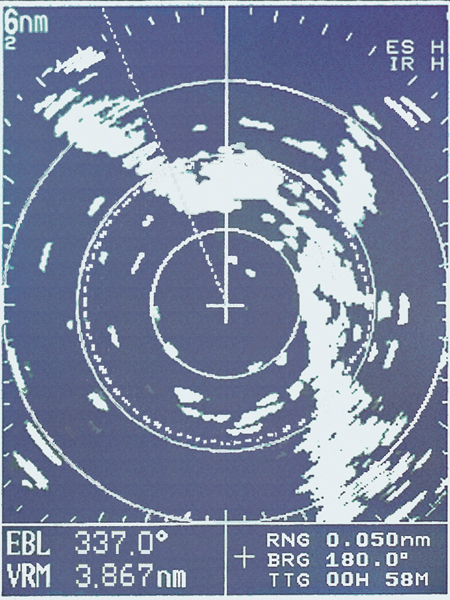

REVERSE

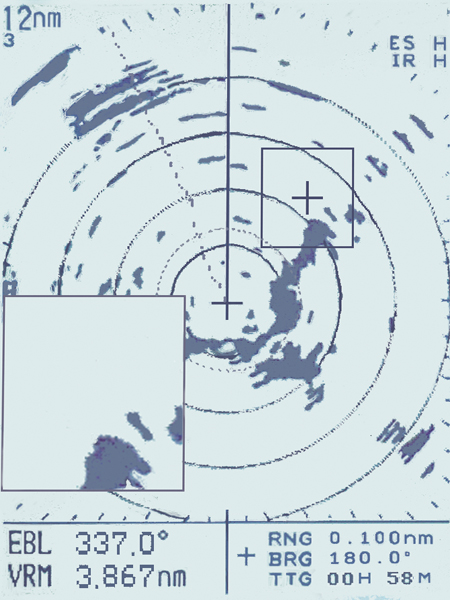

ZOOM

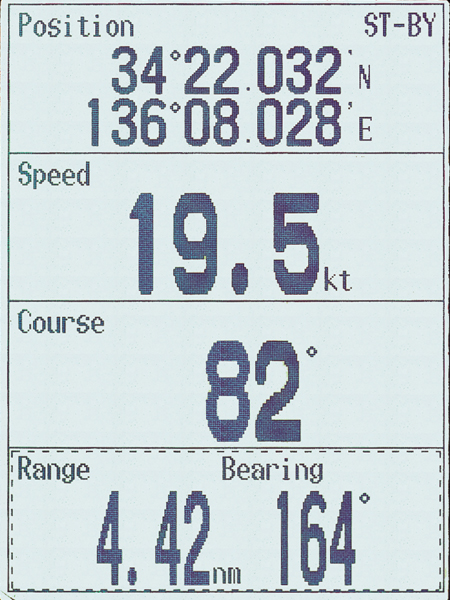

NAV DATA 1

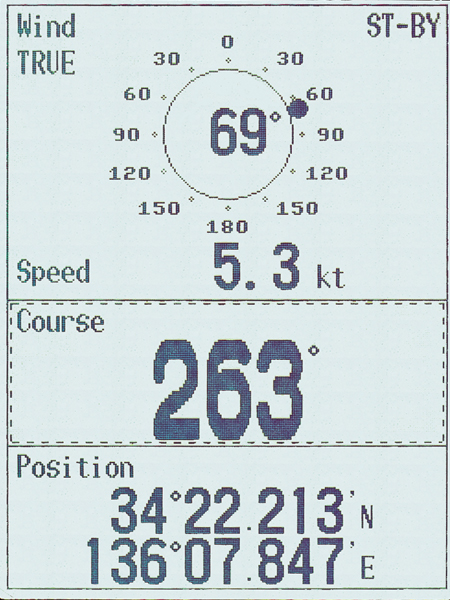

NAV DATA 2
Specifications
Antenna
Peak Output Power
2.2 kW
Type
ø380 mm radome (15.0'')
Frequency
9410±30 MHz (X-band)
Beam Width (Horizontal)
6.2˚
Beam Width (Vertical)
25˚
Range Scales
0.125-16nm
Antenna Rotation Speed
24/31/41 rpm (auto-select according to pulselength)
Weight
4.6 kg
Display
Display Unit
6'' monochrome LCD
Weight
1.3 kg
Environment
Temperature
Display unit: -15°C to +55°C
Antenna unit: -25°C to +70°C
Waterproofing
Display unit: IPX5
Antenna unit: IPX6
Power Supply
Power Supply/Consumption Current
12-24 VDC: 3.2-1.4 A
Equipment List
Standard
DISPLAY UNIT
1 UNIT
RADOME ANTENNA UNIT RSB-0093
1 UNIT
STANDARD INSTALLATION MATERIALS
1 SET
STANDARD SPARE PARTS
1 SET
Option
NMEA CABLE
MJ-A15A7F0004-005
SIGNAL CABLE ASSEMBLY
5 M
RADOME MOUNT
RECTIFIER (CHINA)
PR-62 (100/220 VAC)
EXTERNAL ALARM BUZZER

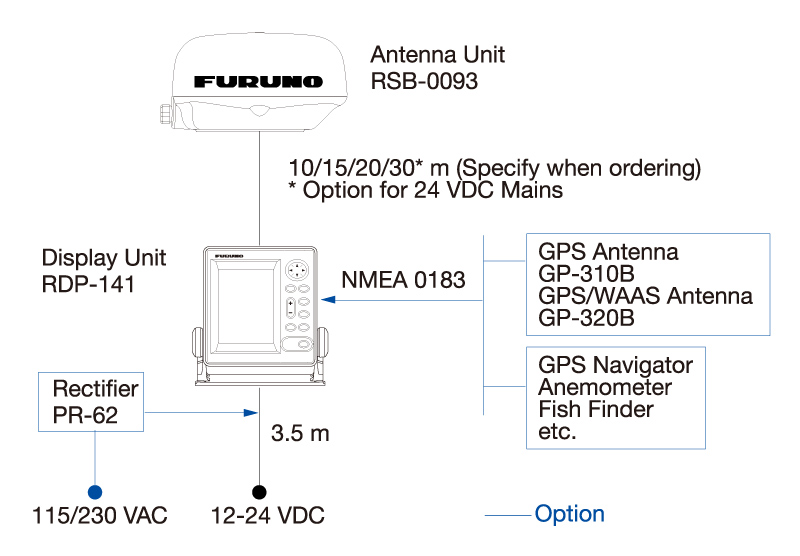

Interconnection Diagram

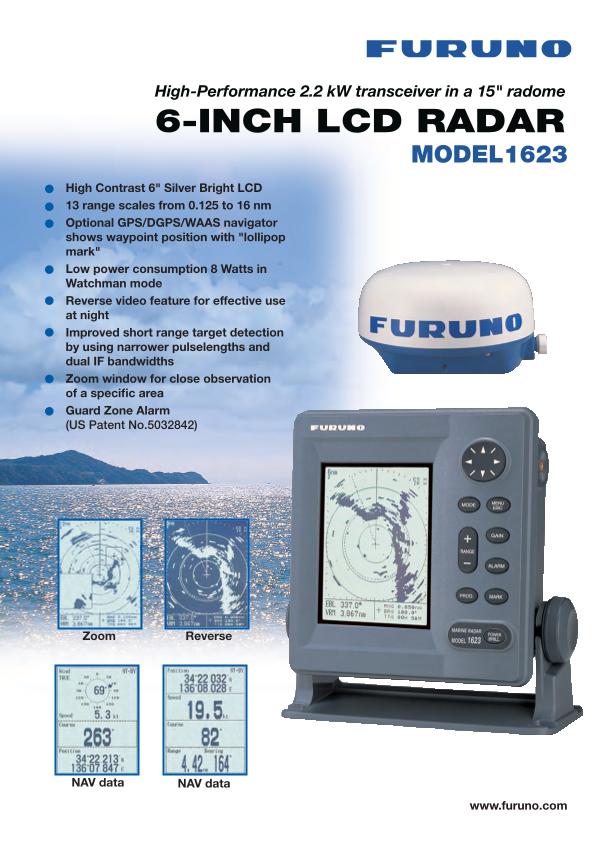

Downloads
| Name | Last update |
|---|---|
| Jul 5, 2022 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
