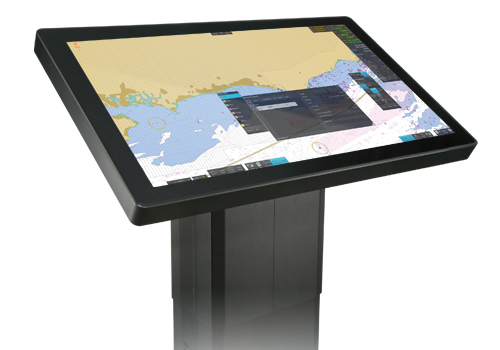

Voyage Planning System

Planning Station

Model PS-100

NEW

From voyage planning to monitoring, supporting safer and more efficient navigation

FURUNO’s unique rendering technology enables high-speed drawing and seamless operation on a 4K-compatible high-definition charts (ENC)

Merchant Marine

Downloads

Features
Specifications
Equipment List

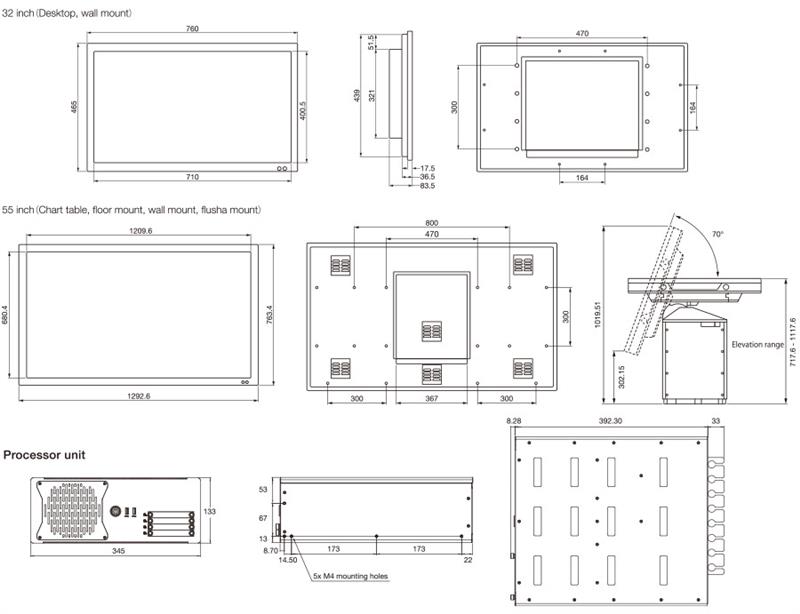

Drawing

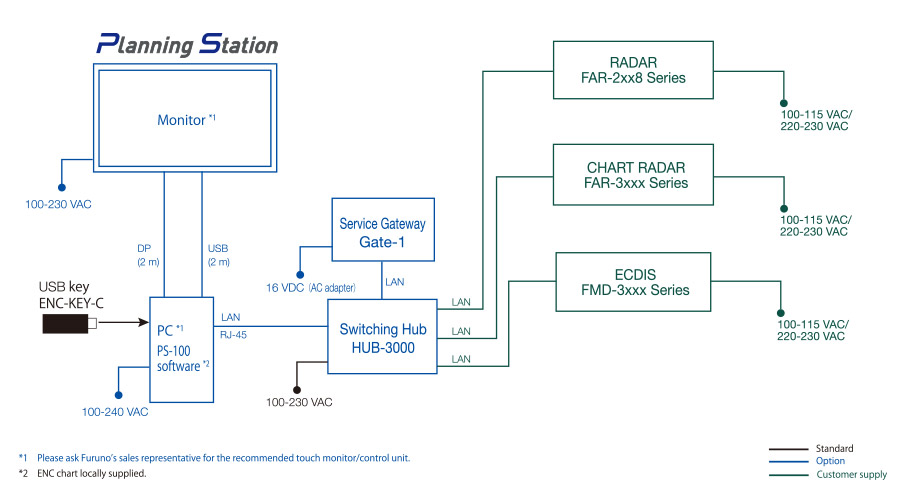

Interconnection Diagram
Downloads
Contact

Features

Compliant with IACS UR E27*

For IACS UR E27, click here.

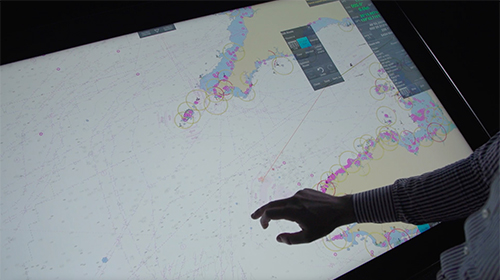

Remarkably seamless operability

This product features 4K high-definition images that are suitable for large-screen displays, while also achieving smooth operation that does not cause stress during operation.

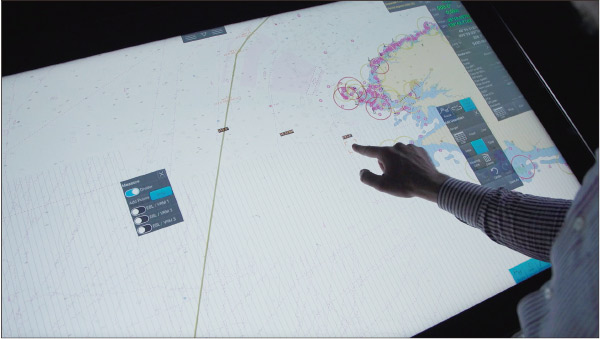

Graphic user interface specifically designed for voyage planning

Touchscreen interface for easy and intuitive use. Floating windows allow you to move settings screens, information frames, and documents to any location within the frame with one touch.

Useful functions for voyage planning and the monitoring

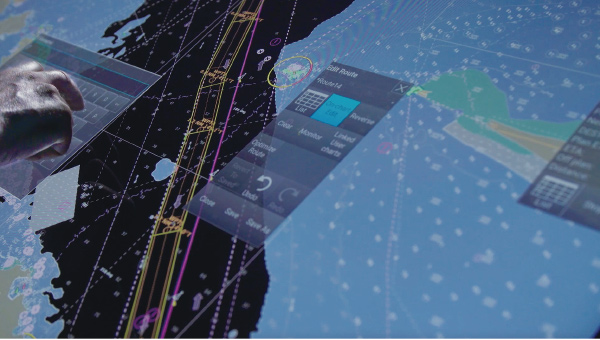

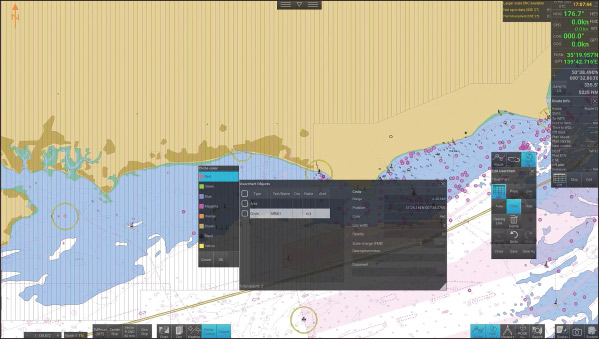

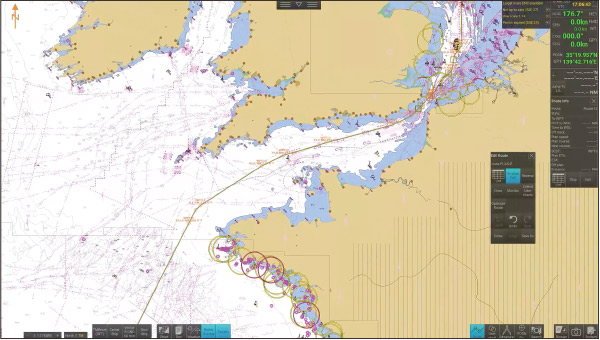

Create route/user chart

You can easily create new routes, edit existing routes, and create new points, lines, areas, and circles by simply tapping the screen.

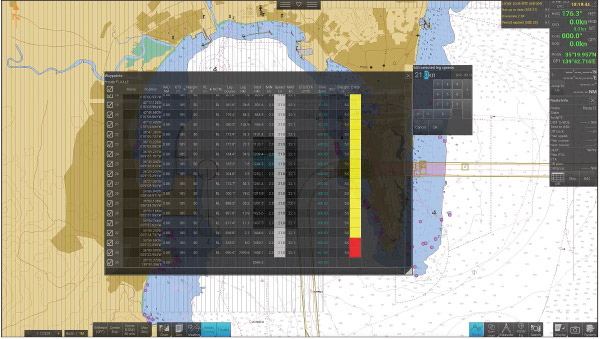

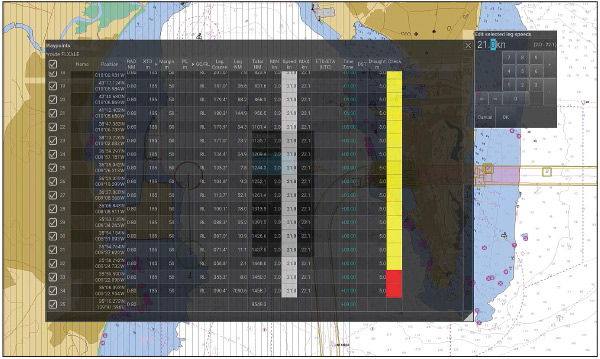

Calculate recommended ship speed

Green: Nothing found
Yellow: Cautions found
Red: Safety contour warning

By setting ETD/ETA*¹ for each waypoint in the route, the recommended ship’s speed can be calculated and displayed automatically. In addition, the results of the route analysis in your planning routes are automatically displayed with green, yellow, and red color-coded status.

At least one waypoint must be set. If the ETA for that waypoint is not the final destination, the remaining route will be calculated based on the maximum ship speed.
Automatic calculation using the maximum ship speed set in the ship's parameters and taking into account various information.

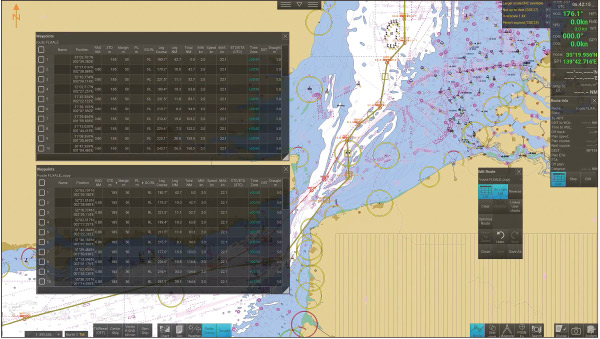

Route comparison/route playback function

Display and review multiple routes for comparison, including those you wish to assess and those previously utilized. This feature proves valuable for sharing information among crew members.

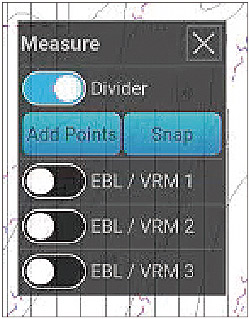

Divider

The divider can be used to measure distance between two or more points.

EBL/VRM

Three sets of EBL/VRM can be used for measuring bearing and distance.

Sensor information

The heading, speed, course over ground, speed over ground, and own ship position are displayed on the ENC chart.
The own ship symbol is displayed on the ENC chart, and the position information of the own ship is automatically recorded as a voyage log along with the sensor information.

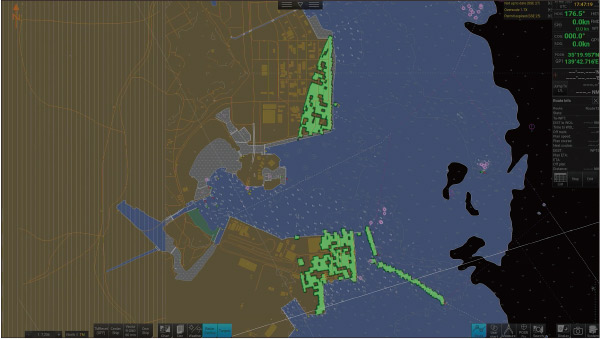

Radar information*

With a single click on the menu, you can overlay radar images and check landforms and sea obstacles. It is also possible to superimpose the trail display.

ECDIS, radar, and AIS receiver must be connected to the same network.

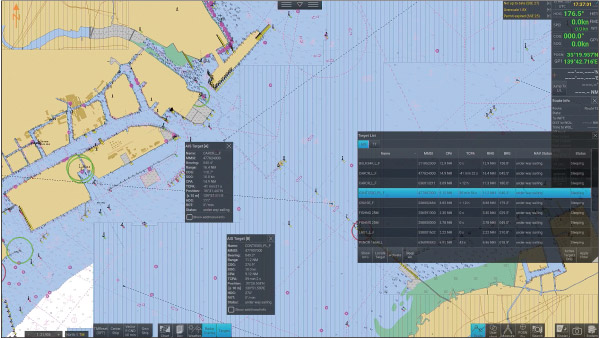

Target information*

AIS target information and TT information can be displayed. In addition, you can select the display status (target information, position display, filter addition, selected target pause/activation, etc.) from the list of targets.

ECDIS, radar, and AIS receiver must be connected to the same network.

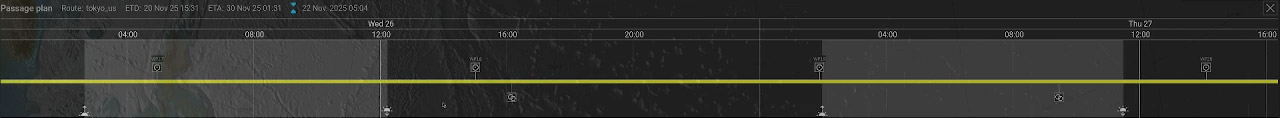

Passage Plan

Passage Plan displays the planned route on a timeline, showing scheduled waypoint passages, sunrise and sunset times, and other key events in a clear visual format.When you drag the cursor, the shipʼs position advances along the planned route.

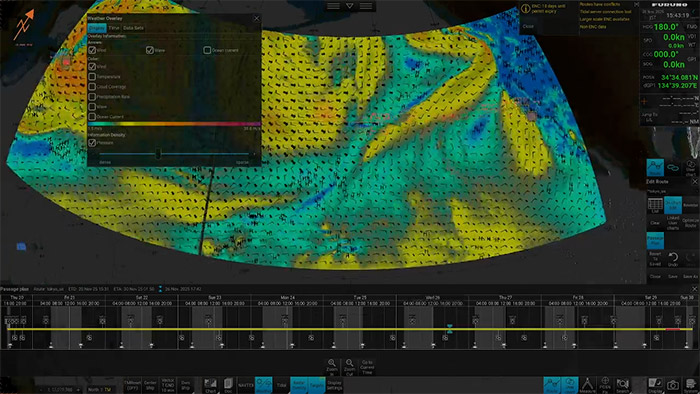

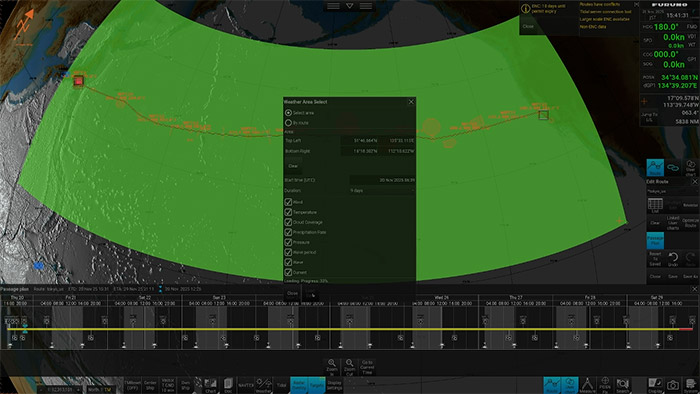

Weather information

In addition to importing GRIB1 (.grb) data, weather information can also be obtained via the Internet.* Weather data such as wind, waves, and currents can be overlaid on the chart.

Gate-1 connection and an optional contract are required.

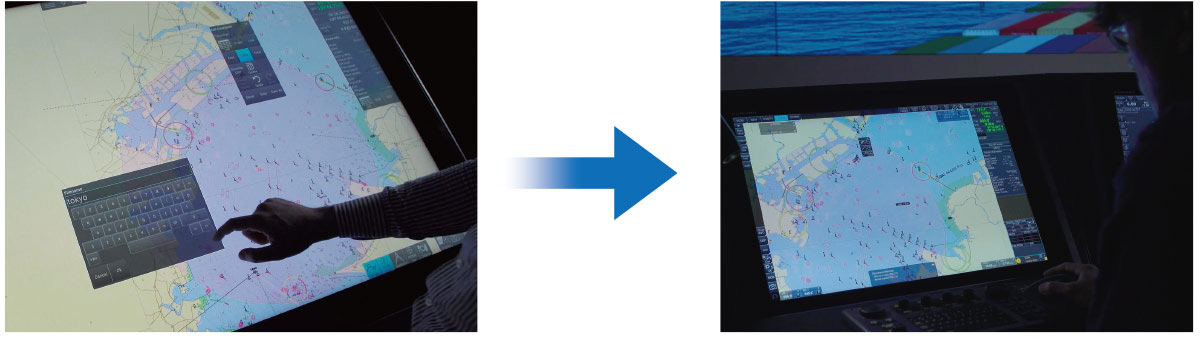

Automatic synchronization with ECDIS eliminates the hassle of data transfer (*same network connection required)

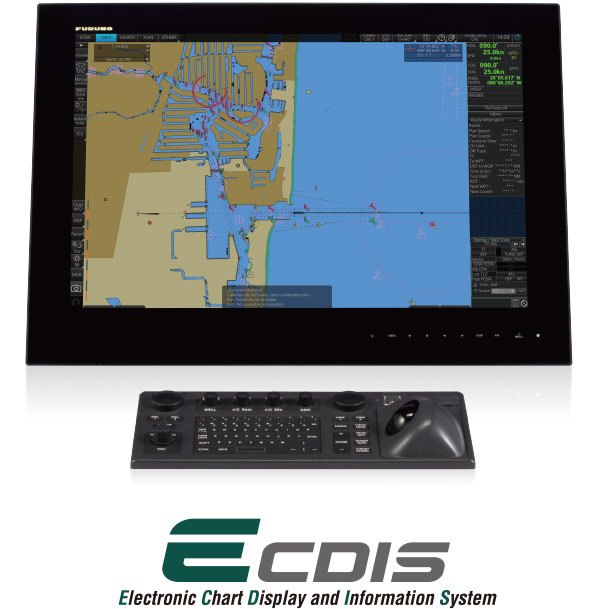

ECDIS Integration*

Routes and user charts created with the PS-100 and ECDIS can be shared between units. Data that is created or modified is automatically distributed to other units, eliminating the need for manual data migration.

ECDIS, radar, and AIS receiver must be connected to the same network.
FMD-3xxxSeries, FAR-3xxxSeries： version 5.03 or later

Call the same Circle from ECDIS created by PS-100.

Shareable Data

Charts
Route files
User chart
Own ship parameters
Sensor information used by ECDIS
Radar overlay
Own ship setting
Voyage log

NAVTEX Viewing

By selecting the NAVTEX button on the screen, you can view NAVTEX messages received by the ECDIS.

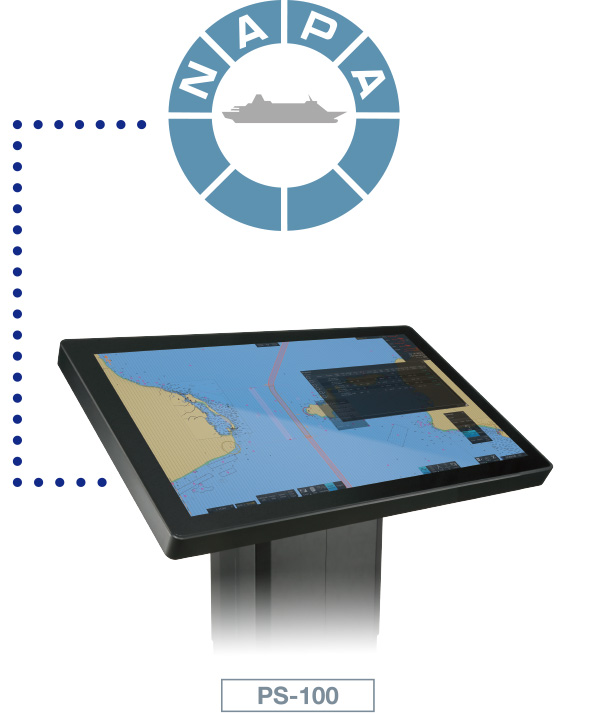

NAPA Voyage Optimization improves voyage efficiency by optimizing route and speed profiles with the Planning Station

Voyage Optimization, an operation performance optimization service provided by NAPA, can be accessed through Service Gateway Gate-1 (optional). NAPA Voyage Optimization is a solution that leverages a vessel's unique performance model to optimize the voyage plan (route/vessel speed allocation), enhance operational safety, and decrease fuel consumption and GHG emissions.

Option contact required.

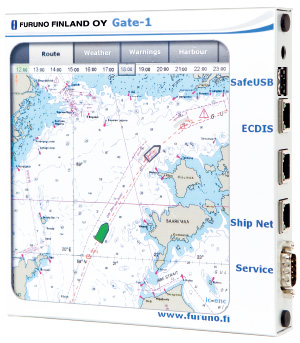

Service Gateway Gate-1 (option)

Chart can be automatically updated by purchasing and updating chart licenses via Gate-1.
Compatible with UKHO charts (raster/ENC)*¹
Pay as You Sail (PAYS) available*²

UKHO contract required.
2 PAYS contract required.

Please check here about NAPA Voyage Optimization.

https://www.napa.fi/software-and-services/ship-operations/napa-fleet-intelligence/voyage-optimization/

Contributes to sharing information easily during your briefing/debriefing meetings.

The Planning Station can centrally manage information and display route comparisons and playback on a large screen.

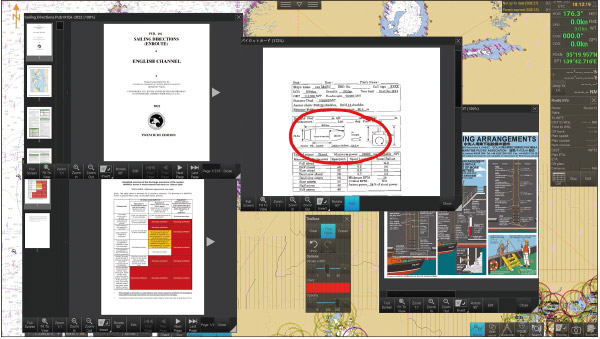

Document Viewing

You can centrally manage information by importing documents into the planning station. In addition, by attaching documents to any user chart object, you can efficiently view and share information in the sea areas and timings where confirmation of documents is required.
Imported videos can be played back without audio.

Schedule management

Enter the speed to calculate the estimated arrival time, and set the ETA to the waypoint to automatically calculate the speed.

Specifications

General

Functions

Route planning, Route monitoring, User chart, Own ship’s mark, Weather forecast*¹, ENC chart, Document viewer, Position fixing, Voyage log, Playback log, Radar overlay, Tidal overlay*²
＊1 grib file required. ＊2 future planning

Mark/Data

Own ship’s speed/course/position, Clock/Time zone, Color pallet, Screenshot, System reboot, Route, User chart, Search, Target tracking control, Graph, User interface switching, Safety message

Interface

LAN

1 port、Ethernet 100Base-TX/1000Base-T、RJ45

Data sentences

IEC61162-1/2

Input

GGA, GLL, GNS, HDT, OSD, THS, TLB, TTD, TTM, RMC, ROT, VBW, VDM, VDO, VHW, VTG, ZDA

Equipment List

Option

Processor unit (Local supply)

CPU

Core i7 9th generation or later

Clock

2.4 GHz or more

Grahic board

Nvidia Quadro P2200 or later

Memory

RAM: 16 GB, SSD: 240 GB

Power Supply

350 W or more

Monitor (Local supply)

Type

Touch monitor

Brightness

3840 x 2160 （4K）

Size

55 inch, 32 inch

Brightness

55 inch: 450 cd/m²
32 inch: 350 cd/m²

Output power

55 inch: 115-230/VAC 50/60 Hz
32 inch: 100-240 VAC 50/60 Hz, 24 VDC
