- VR Navigation System
VR Navigation System
Model
VNS-100
- NEW
Navigating in 3D
Supporting situational awareness in congested waters
Supporting situational awareness in congested waters

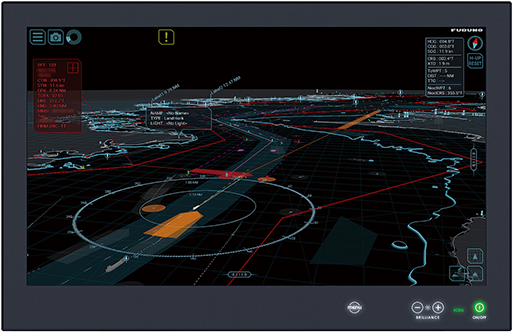

The VNS-100 is an advanced VR Navigation System designed to enhance situational awareness and support navigational decision-making. By integrating chart data, Radar targets, AIS information, and collision risk visualization into an intuitive 3D environment, VNS-100 helps navigators quickly understand complex traffic situations, particularly in congested waters.
- Merchant Marine、Workboats
Features

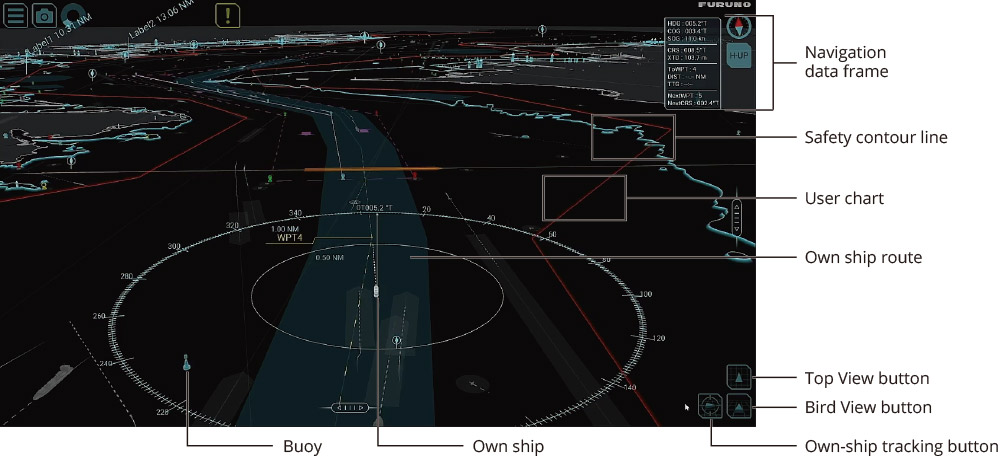

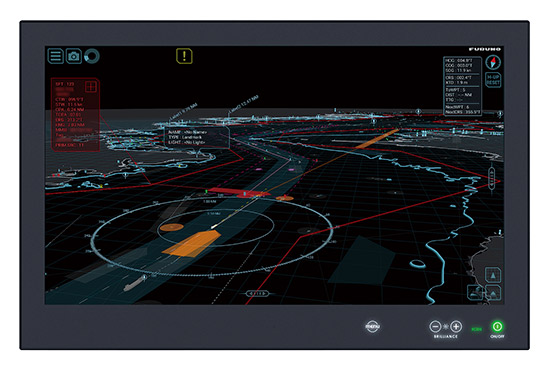

Bird View (bird’s-eye)
Bird View provides an intuitive understanding of the surrounding environment by displaying vessel traffic, routes, and potential hazards in a realistic 3D perspective. With freely adjustable viewpoints, navigators can assess situations from any angle. This makes complex traffic situations easier to understand and helps improve situational awareness regardless of experience level.
Fully Automatic Acquisition and Tracking
Fully Automatic Acquisition and Tracking automatically detects and tracks all radar targets in the vessel’s surroundings, eliminating the need for manual acquisition*. By continuously monitoring target movements, it reduces operator workload, minimizes the risk of overlooking vessels, and enhances situational awareness, especially in congested waters and low-visibility conditions.
- Target acquisition performance may vary depending on radar detection conditions and environmental factors.
- Compatible with selected Furuno X-band radar models. Please contact your local Furuno representative for the latest list of supported radar models.

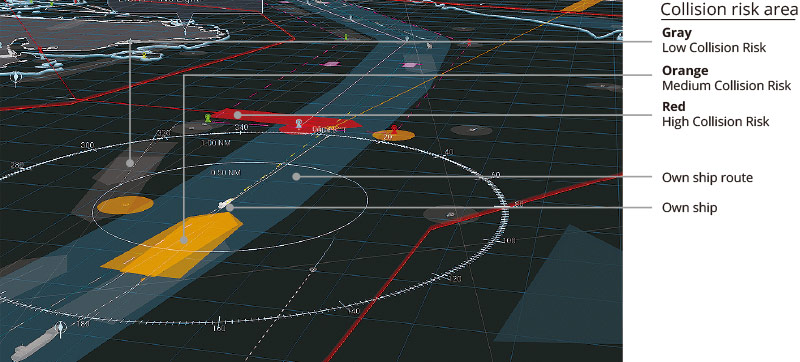

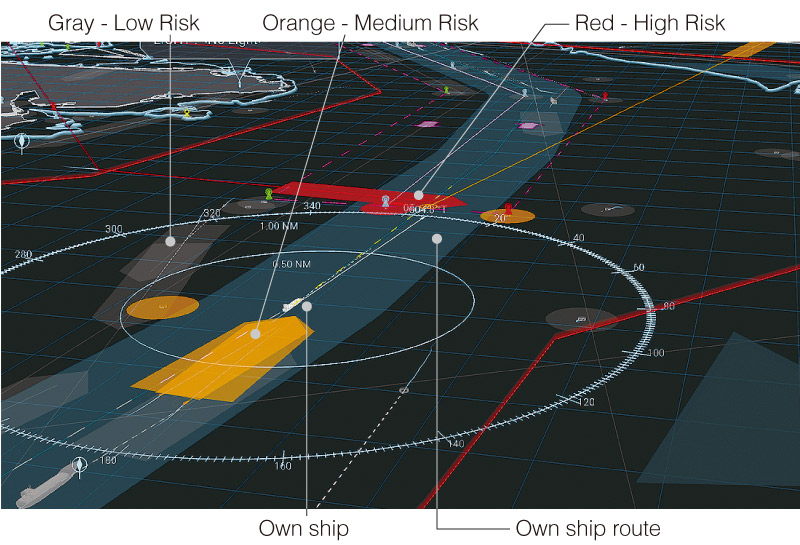

Risk Visualizer™
Risk Visualizer™ assists operators in making avoidance decisions by visualizing the areas where there is a risk of collision if own ship keeps current speed and other ship(s) continue to navigate at their current speed and course.
Powered by Automatic Target Acquisition & Tracking, Risk Visualizer™ for VNS-100 evaluates collision risks for all detected targets, including non-AIS vessels. Its unique forward-focused risk model reduces unnecessary alarms and helps navigators identify the most critical threats at a glance.
Touch displays and multi-touch operation
The VR Navigation System supports multi-touch operation on touch-enabled displays, allowing navigators to zoom, pan, rotate, and adjust viewpoints with simple gestures.
This intuitive interface reduces operational complexity, improves usability, and enables quicker understanding of the surrounding situation.

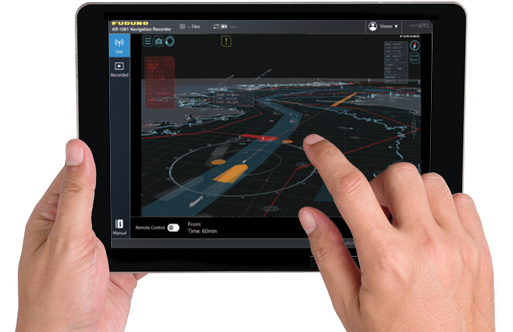

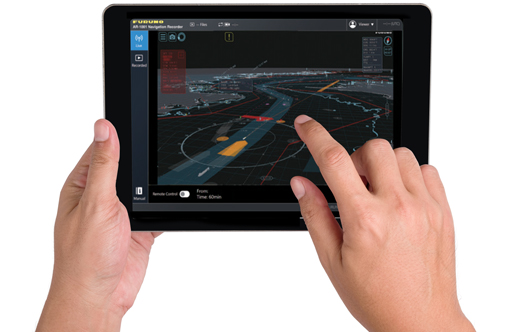

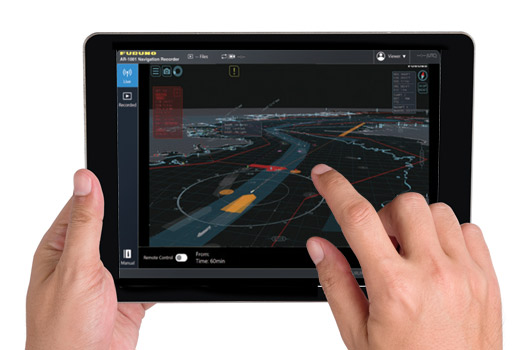

Tablet Connectivity (option)
The system enables live images and playback recorded video by connecting a recommended tablet*1 via wireless LAN, and remotely control the VNS-100 using a dedicated viewer*2.
- iPad: 9th generation (iPad OS 17.3) or later, recommended for Safari. Customer arrangement.
- The optional tablet remote-control function is currently not compliant with IACS UR E27
Specifications
Processor Unit (VPU-1001)
Resolution
1920 x 1080 (FHD)
* A customer-supplied touch-enabled Full HD (1920 × 1080) display shall be used.
The system supports both touch-enabled displays and conventional displays with a mouse or trackball.
Display Modes
Head-up, North-up
Target Display
1,000 targets
Display Information
Heading, Ground/Water (Speed, Heading), Risk area, Identification (Integrated) target (AIS, TT), Route, User chart, ENC chart symbol, OpenStreetMap chart
* A dual-ECDIS configuration is recommended for full ENC coverage.
Display Language
English
Interface
Number of Ports
HDMI (VPU-1001 only): 1 port*
DP (VPU-1001 only): 1 port* * Simultaneous HDMI and DP output is not supported.
LAN: 1 port, Ethernet, 1000Base-T
USB: USB 2.0: 4 ports, USB 3.0: 2 ports
VPU-1001
Data sentences (IEC 61162-450)
Input: GGA, GLL, GNS, HDT, OSD, RMB, RMC, THS, TLB, TTD, VBW, VDM, VDO, VTG, ZDA
SFU-1001
Data sentences (IEC 61162-450)
Input: ACN, DTM, GGA, GLL, GNS, HBT, HDT, RMC, SRP, THS, TLB, TTD, VBW, VDM, VDO, VTG, ZDA
Output: ALC, ALF, ARC, HBT, SRP, TLB, TTD
Power Supply
Processor Unit
24 VDC: 3.5 A
AC/DC Power Supply Unit
PR-241 (Option)
100-230 VAC, 1 phase, 50-60 Hz
Environmental Conditions
Ambient Temperature
-15°C to +55°C
Relative Humidity
95% or less at +40°C
Degree of Protection
IP22 (with splash-proof cover OP14-85)
IP20 (without splash-proof cover OP14-85)
Vibration
IEC 60945 Ed.4

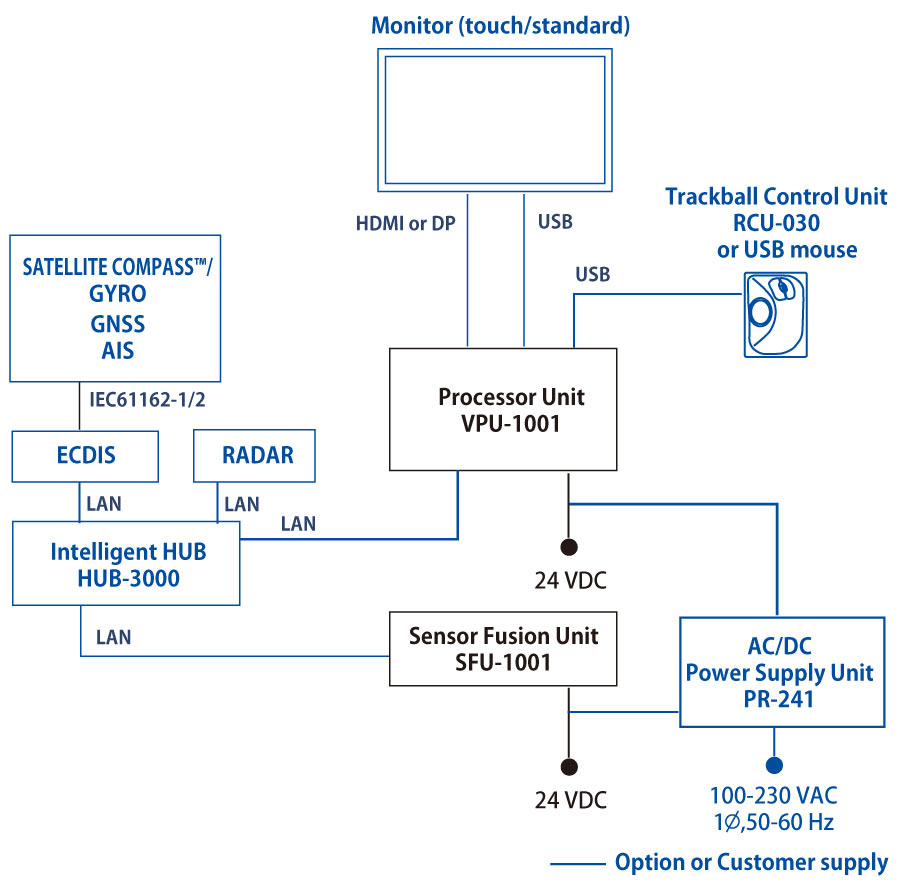

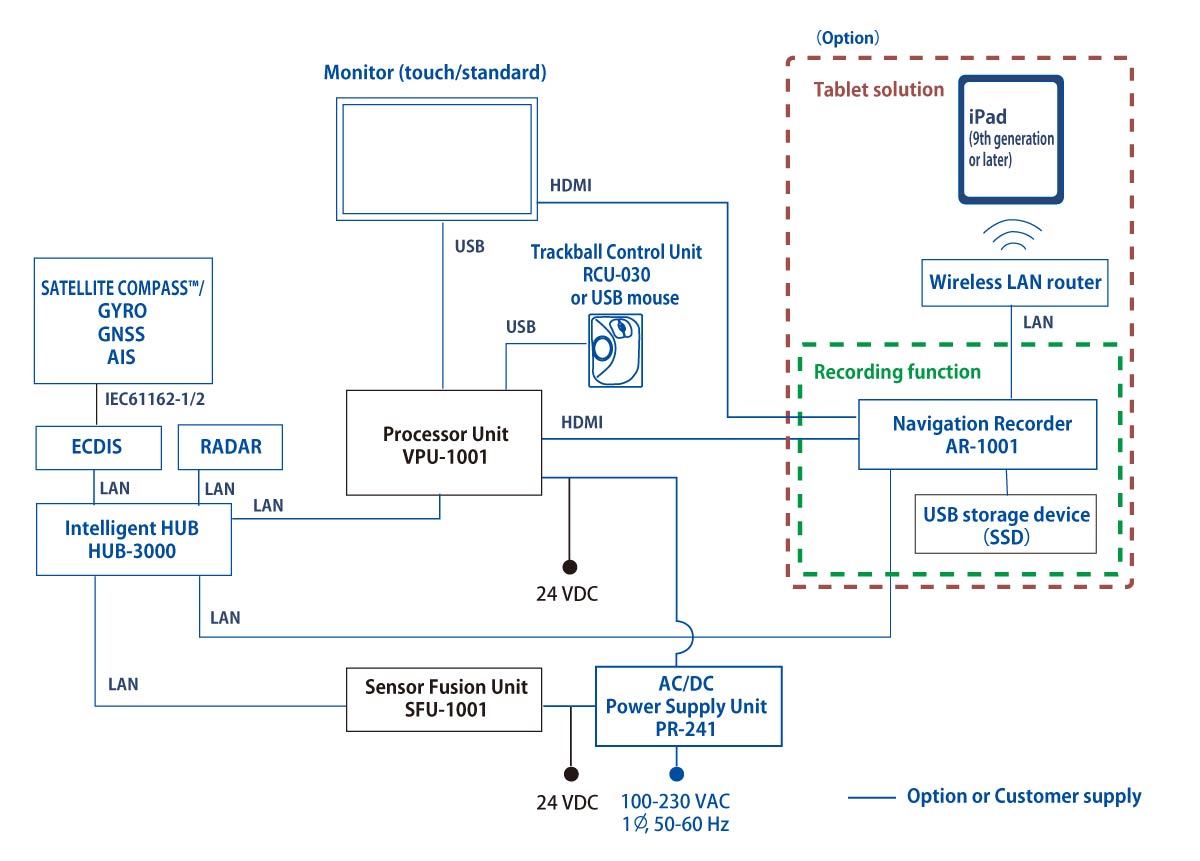

Interconnection Diagram
Without connecting AR-1001
With connecting AR-1001

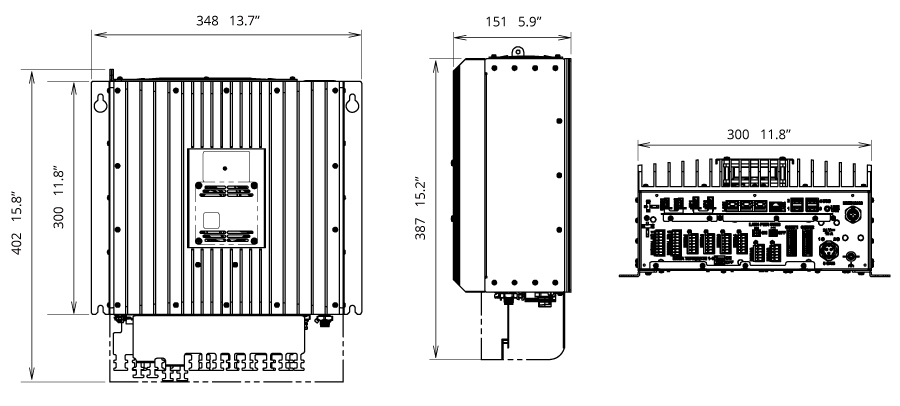

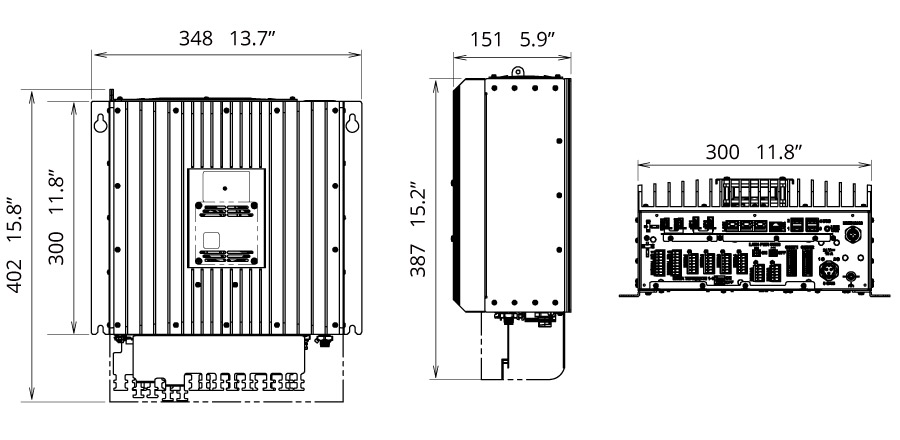

Dimensions
VPU-1001 / SFU-1001
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
