Model
ePV3600(BB), ePR3036Q(RF)
- Discontinued Products
The eRideOPUS 3 series, ePV3600B / ePR3036Q designed for automotive industry adapting many kinds of applications like the automotive navigation device and the wireless communication for eCall system.
- GNSS (Timing, Automotive/Industrial)
Features

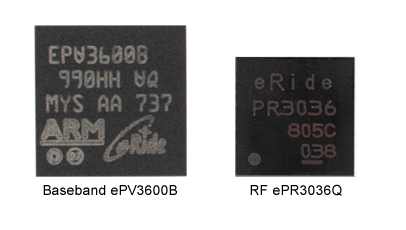

This chipset includes the ePV3600B (Baseband IC) and the ePR3036Q (RF Receiver IC).
Ultra-high sensitivity (-161 dBm sensitivity) in both acquisition and tracking ensures position fix continuity indoors, outdoors and in urban canyons
Simple, low cost: Highly integrated solution, single rail supply. Position, speed, time, and aiding data over bidirectional industry standard NMEA interface
Easy integration: Connects to application via serial port
Miniature size: Total footprint supports miniaturized designs
Specifications
General
GPS L1 C/A, SBAS L1 C/A
12 channels
1 Hz
Acquisition, Reacquisition & Tracking: -161 dBm, variable update rate
Hot Start: Outdoors: <1 sec Typ
Indoors: <15 sec Typ
Warm Start: 33 sec Typ @-135 dBm
Cold Start: 34 sec Typ @-135 dBm
ePV3600B: 2.7 V - 3.6 V single rail, or 2.7 - 3.6 and 1.8/1.0 V +/- 10% ext.
ePR3036Q: 3.0 V +/-10%
Deep Sleep/RTC Mode: 24 μW
Track Mode, Outdoors 68 mW
Track Mode, Indoors 88 mW
Search Mode: 90 mW
-40°C to + 85°C
ePV3600B Baseband IC: 7.0 x 7.0 x 1.2 mm, TFBGA
ePR3036Q RF Receiver IC: 5.0 x 5.0 x 0.75 mm, QFN
2 UART’s, SPI, I2C, 8 GPIO’s

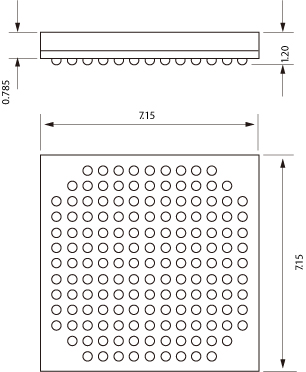

Drawing
ePV3600(BB)
ePR3036Q(RF)
