GNSS for Automotive & Industrial

Multi-GNSS Receiver Chip eRideOPUS 6

Model ePV6010B

Old Products

eRideOPUS 6 is a small and high sensitivity Multi-GNSS receiver chip with high position accuracy.

Supports SBAS and QZSS, Active Anti-Jamming and Advanced Multipath Mitigation functions.

GNSS (Timing, Automotive/Industrial)

Downloads

Features
Specifications
Drawing
Evaluation Kit
Downloads
Contact

Features

Multi-GNSS Receiver Chip

Supports GPS, QZSS and SBAS
In addition to high position accuracy, ePV6010B achieves superior performance as regular Multi-GNSS Receiver Chips such as fast TTFF, highly improved Noise Tolerance

Receivable Galileo E1B/E1C

Galileo E1B and E1C signals receivable (ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010")

Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
Dead Reckoning calculation is performed on the receiver and the results outputted in NMEA data

Fast TTFF

Hot start: <1 sec

High Positioning Rate

Configurable position output update rate up to 10Hz (10 times per sec.)

Improved Noise Tolerance

Reduces effects of internal and external noise

Android™ driver and API

Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.

for more details, click here

Embedded Flash ROM

Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

Provide software suitable for you application.

Specifications

General

GNSS Reception Capability

GPS L1 C/A, QZSS L1 C/A, SBAS L1 C/A
Galileo E1B/E1C*
(Ready): QZSS L1S

*ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010"

GNSS Reception

24 channels (GPS, Galileo, QZSS, SBAS)

Update Rate

GNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

*Measurement platform with recommended active antenna

Position Accuracy (Horizontal)

GPS: 2.5m(CEP)
GPS + SBAS: 2.0m(CEP)

*Measurement platform with recommended active antenna
*Update rate: 1 Hz

TTFF (Typical)

Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna

Supply Voltage

1.8VDC / 3.3VDC

Current Consumption

Acquisition Mode: 56.5 mA (@ DC 3.3V)

Backup Supply

1.4 to 3.6 VDC / 10 μA (Typ)

Operating Temperature

-40°C to +85°C

Package

Size: LFBGA 7.0mm x 7.0mm, Pins: 64balls, Ball Pitch: 0.8mm

Protocol

eSIP (NMEA 0183 Standard Ver. 4.10)
FURUNO Binary

Interfaces

UART, I2C, Forward/Reverse signal, Speed Pulse

Anti-Jamming

Available

Multipath Mitigation

Available

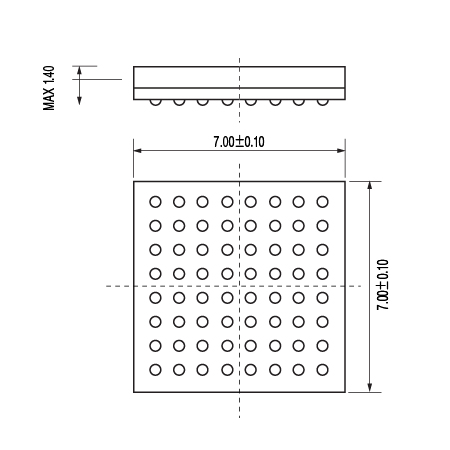

Drawing

Evaluation Kit

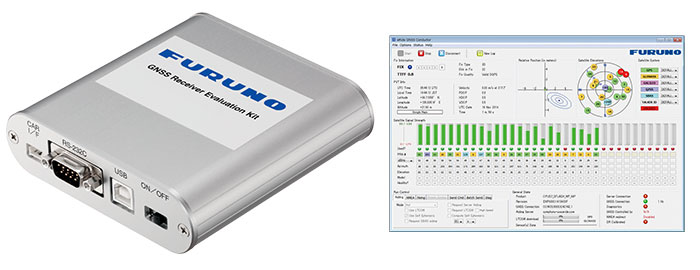

ePV6010B Evaluation Kit is available to evaluate the performance of ePV6010B.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES

5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations
