- GNSS for Automotive & Industrial
Model
ePV7010B
- Old Products
*This product is not available for new purchase.
eRideOPUS 7 provides the world’s most-accurate positioning and navigation solution using simultaneous Multi-GNSS technology in combination with active anti-jamming, advanced multipath mitigation and dead reckoning.
- GNSS (Timing, Automotive/Industrial)
Features
Multi-GNSS, Concurrent reception of GPS and GLONASS
- The best positioning accuracy and smoothest ground tracking
- Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
- Supports concurrent GPS, GLONASS, SBAS and QZSS
Receivable Galileo E1B/E1C
Galileo E1B and E1C signals receivable (ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010")
Position available even in the tunnels, underground parking lots. Effective in urban canyons
- Reduces degradation of position accuracy in harsh environments thanks to a combination of concurrent Multi-GNSS and Dead-Reckoning
- Provides instant position at startup in underground parking lot type environments (Garage Start function)
- Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)
Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU
- Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
- Dead Reckoning calculation is performed on the receiver and the results outputted in NMEA data
Fast TTFF
Hot start: <1 sec
High Positioning Rate
Configurable position output update rate up to 10Hz (10 times per sec.)
Improved Noise Tolerance
Reduces effects of internal and external noise
Android™ driver and API
Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.
Embedded Flash ROM
Suitable for long-term use backed by FURUNO’s continuous support and function enhancement
- Provide software suitable for you application.
Specifications
General
GPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A
Galileo E1B/E1C*
*ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010"
32 channels (GPS, GLONASS, Galileo, QZSS, SBAS)
GNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz
GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm
GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm
*Measurement platform with recommended active antenna
GPS: 2.5m(CEP)
GPS + SBAS: 2.0m(CEP)
GPS + SBAS + GLONASS: 2.0m(CEP)
*Measurement platform with recommended active antenna
*Update rate: 1 Hz
Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)
*Measurement platform with recommended active antenna
1.8VDC / 3.3VDC
Acquisition Mode: 61 mA (@ DC 3.3V)
1.4 to 3.6 VDC / 10 μA (Typ)
-40°C to +85°C
Size: LFBGA 7.0mm x 7.0mm, Pins: 64balls, Ball Pitch: 0.8mm
eSIP (NMEA 0183 Standard Ver. 4.10)
FURUNO Binary
UART, I2C, Forward/Reverse signal, Speed Pulse
Available
Available

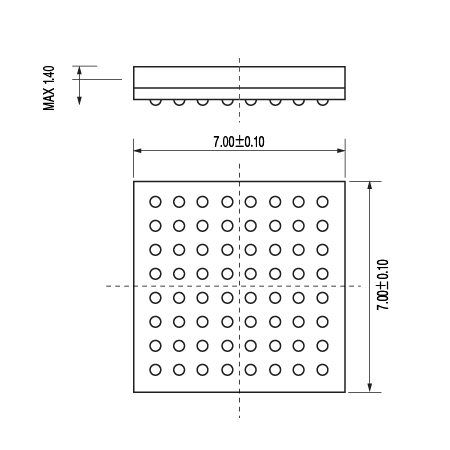

Drawing

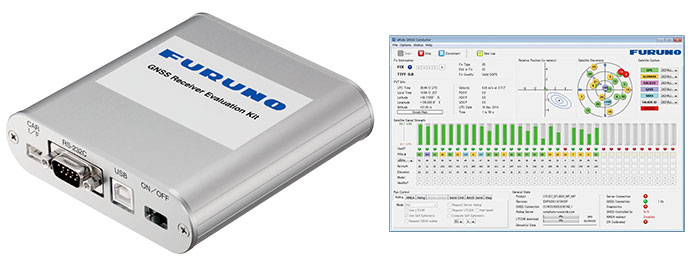

Evaluation Kit
ePV7010B Evaluation Kit is available to evaluate the performance of ePV7010B.
The Evaluation Kit can supply power and communicate with USB interface.
5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS-GLONASS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations
Downloads
| Name | Last update |
|---|---|
| Aug 29, 2018 | |
| Mar 29, 2018 |
