GNSS for Automotive & Industrial

DR/GPS Receiver module

Model GV-86

Old Products

Small Package, High Sensitivity DR (Dead Reckoning) + GPS Module

*GV-86 is the exclusive product for the BOSCH SMI130 sensor users.
GV-86 is the high sensitivity GPS Receiver Module supporting Dead Reckoning (DR) function enabling positioning in environments where no satellite signals are received

GNSS (Timing, Automotive/Industrial)

Downloads

Features
Specifications
Drawing
Evaluation Kit
Downloads
Contact

Features

Supports GPS, QZSS and SBAS

In addition to high position accuracy, GV-86 achieves superior performance as regular GPS Receiver Modules such as fast TTFF, highly improved Noise Tolerance

Advanced DR Performance

Achieved DR performance in car navigation systems with a stand-alone GPS module
Offsets misalignments and position jumps of GPS, complements position during GPS signal outages
Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)

Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
Dead Reckoning calculation is performed on the module and the results outputted in NMEA data

Link to the Smartphone(Apple CarPlay, Google Android Auto)

Ideal for the solutions to achieve highly-accurate Dead Reckoning positioning like car navigation system with CarPlay and Android Auto.
Try and see the performance of Dead Reckoning with Android Application connecting to the GV-86 Evaluation Kit VN-861.

Download GNSS Conductor for Android

Android and Android Auto are the registered brand of Google Inc. Apple CarPlay is the registered brand of Apple Inc.

Auto Orientation Function

Flexible installation with original axial correction

Sensors can be mounted sideways, on inclined surfaces, upside-down
Adapted for installation on inclined surface of the dashboards

Designed for real-life usage

Evaluates driving patterns under actual environment

Adapted for various cases causing large position errors such as “turn table”, “low-speed U-turn” etc.

Fast TTFF

Hot start: <1 sec

High Positioning Rate

Configurable position output update rate up to 10Hz (10 times per sec.)

Improved Noise Tolerance

Reduces effects of internal and external noise

Android™ driver and API

Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.

for more details, click here

Embedded Flash ROM

Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

Suitable for Automotive Applications

Market’s standard size, superior design for assembly

24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm
Visible soldering condition with end-face electrodes

Specifications

General

GNSS Reception Capability

GPS L1 C/A, QZSS L1 C/A, SBAS L1 C/A

GNSS Reception

16 channels (GPS, QZSS, SBAS)

Update Rate

GNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

*Measurement platform with recommended active antenna

Position Accuracy (Horizontal)

GPS: 2.5m (CEP)
GPS + SBAS: 2.0m (CEP)

*Measurement platform with recommended active antenna
*Update rate: 1Hz

Dead Reckoning Performance

Ground Tracking Distance * 1%

TTFF (Typical)

Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 68 mA

Backup Supply

1.4 to 3.6VDC / 10 μA (Typ)

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Package

24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm

Protocol

eSIP (NMEA 0183 Standard Ver. 4.10)

Interfaces

UART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse

Anti-Jamming

Available

Multipath Mitigation

Available

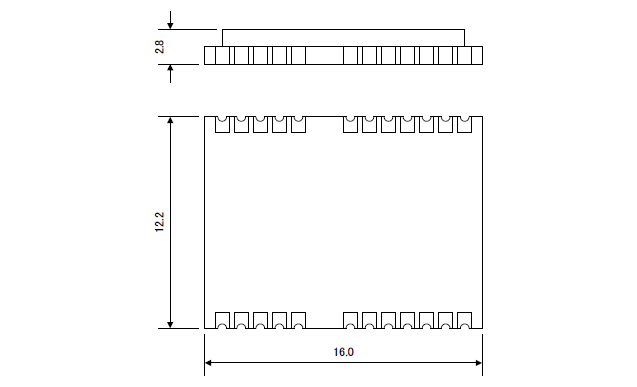

Drawing

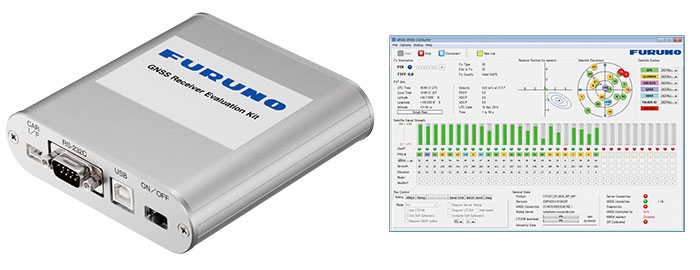

Evaluation Kit

GV-86 Evaluation Kit is available to evaluate the performance of GV-86.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES

5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS Antenna, CAR I/F cable and CD ROM containing the Communication Software, the USB driver and the documentations

Downloads

Name	Last update
Hardware Specifications	Mar 29, 2018
Protocol Specifications (eSIP(NMEA 0183))	Aug 29, 2018
User's Design Guide	Oct 30, 2015
User's Guide	Mar 29, 2018

Name	Remarks
FURUNO GNSS Conductor for Windows®	【System requirements】 OS Windows® 7(32bit, 64bit) / 8.1(64bit) / 10(64bit) Display resolution 1024x768 or higher User's Guide
FURUNO GNSS Conductor for Android™	【What is this?】 A monitoring software for GNSS receiver evaluation kit "VN series" of Furuno. It is available to see latitude, longitude, velocity and reception status of the satellite signal easily. It is also available to collect and playback the log data and plot the tracks on the map. * For more detailed evaluation and log storage, please use the GNSS Conductor of Windows version. 【How to install?】 Please install and launch the APK file which was sent by Email as attached file in advance on the Android terminal. * Please put the check in the "Unknown sources" in the security settings of the terminal before installing. 【How to use?】 Check the "Stay awake" and "Allow mock location" in the "Developer options" on the terminal, and start the application in a state of connecting an evaluation kit and Android terminal by the cable. * Please prepare the conversion connector of the micro USB on the Android terminal by customer. 1. Become a "communication mode" with the evaluation kit when you select the "GNSS Receiver VN-86x / VN87x" in the combo box on the upper part of the "Main" tab. Log data is collected automatically. 2. It becomes "log replay mode" when you select a NMEA file in the "choose NMEA file ..." 【Information】 Supported OS: Android™ OS 4.2.2 or higher Version: v1.1.1（2016/7/7） Size: 4.73MB Language: Japanese, English Confirmed to be working on NEXUS 7 (2013 model). Depending on Android device used, we cannot guarantee full compatibility.

Name

Remarks

FURUNO GNSS Conductor for Windows®

【System requirements】
OS
Windows® 7(32bit, 64bit) / 8.1(64bit) / 10(64bit)
Display resolution
1024x768 or higher

User's Guide

FURUNO GNSS Conductor for Android™

【What is this?】
A monitoring software for GNSS receiver evaluation kit "VN series" of Furuno.
It is available to see latitude, longitude, velocity and reception status of the satellite signal easily.
It is also available to collect and playback the log data and plot the tracks on the map.
* For more detailed evaluation and log storage, please use the GNSS Conductor of Windows version.

【How to install?】
Please install and launch the APK file which was sent by Email as attached file in advance on the Android terminal.
* Please put the check in the "Unknown sources" in the security settings of the terminal before installing.

【How to use?】
Check the "Stay awake" and "Allow mock location" in the "Developer options" on the terminal, and start the application in a state of connecting an evaluation kit and Android terminal by the cable.
* Please prepare the conversion connector of the micro USB on the Android terminal by customer.

1. Become a "communication mode" with the evaluation kit when you select the "GNSS Receiver VN-86x / VN87x" in the combo box on the upper part of the "Main" tab. Log data is collected automatically.
2. It becomes "log replay mode" when you select a NMEA file in the "choose NMEA file ..."
【Information】
Supported OS: Android™ OS 4.2.2 or higher
Version: v1.1.1（2016/7/7）
Size: 4.73MB
Language: Japanese, English

Confirmed to be working on NEXUS 7 (2013 model).
Depending on Android device used, we cannot guarantee full compatibility.
