Dead Reckoning + Concurrent Multi-GNSS Receiver Module

*GV-87 is the exclusive product for the BOSCH SMI130 sensor users.
GV-87 is the concurrent Multi-GNSS Receiver Module supporting Dead Reckoning (DR) function, enabling high accuracy positioning with Multi-GNSS and also positioning in environments where no satellite signals are received.

GNSS (Timing, Automotive/Industrial)

Downloads

Features
Specifications
Drawing
Evaluation Kit
Downloads
Contact

Features

Multi-GNSS, Concurrent reception of GPS and GLONASS

The best positioning accuracy and smoothest ground tracking
Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
Supports concurrent GPS, GLONASS, SBAS and QZSS.

Position available even in the tunnels, underground parking lots. Effective in urban canyons

Reduces degradation of position accuracy in harsh environments thanks to a combination of concurrent Multi-GNSS and Dead-Reckoning
Provides instant position at startup in underground parking lot type environments (Garage Start function)
Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)

Position accuracy of 2.5m (1σ) has been achieved in urban canyon

To improve the Dead Reckoning performance, it enables to keep high accuracy positiong even in very harsh environment

for more details, click here

Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
Dead Reckoning calculation is performed on the module and the results outputted in NMEA data

Link to the Smartphone(Apple CarPlay, Google Android Auto)

Ideal for the solutions to achieve highly-accurate Dead Reckoning positioning like car navigation system with CarPlay and Android Auto.
Try and see the performance of Dead Reckoning with Android Application connecting to the GV-87 Evaluation Kit VN-871.

Download GNSS Conductor for Android

Android and Android Auto are the registered brand of Google Inc. Apple CarPlay is the registered brand of Apple Inc.

Auto Orientation Function

Flexible installation with original axial correction

Sensors can be mounted sideways, on inclined surfaces, upside-down
Adapted for installation on inclined surface of the dashboards

Designed for real-life usage

Evaluates driving patterns under actual environment

Adapted for various cases causing large position errors such as “turn table”, “low-speed U-turn” etc.

Fast TTFF

Hot start: <1 sec

High Positioning Rate

Configurable position output update rate up to 10Hz (10 times per sec.)

Improved Noise Tolerance

Reduces effects of internal and external noise

Android™ driver and API

Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.

for more details, click here

Embedded Flash ROM

Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

Suitable for Automotive Applications

Market’s standard size, superior design for assembly

24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm
Visible soldering condition with end-face electrodes

Specifications

General

GNSS Reception Capability

GPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A

GNSS Reception

26 channels (GPS, GLONASS, QZSS, SBAS)

Update Rate

GNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm

*Measurement platform with recommended active antenna

Position Accuracy (Horizontal)

GPS: 2.5m (CEP)
GPS + SBAS: 2.0m (CEP)
GPS + SBAS + GLONASS: 2.0m (CEP)

*Measurement platform with recommended active antenna
*Update rate: 1 Hz

Dead Reckoning Performance

Ground Tracking Distance * 1%
Position Accuracy (urban canion): 2.5m (1σ)

TTFF (Typical)

Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 72 mA

Backup Supply

1.4 to 3.6VDC / 10 μA (Typ)

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Package

24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm

Protocol

eSIP (NMEA 0183 Standard Ver. 4.10)

Interfaces

UART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse

Anti-Jamming

Available

Multipath Mitigation

Available

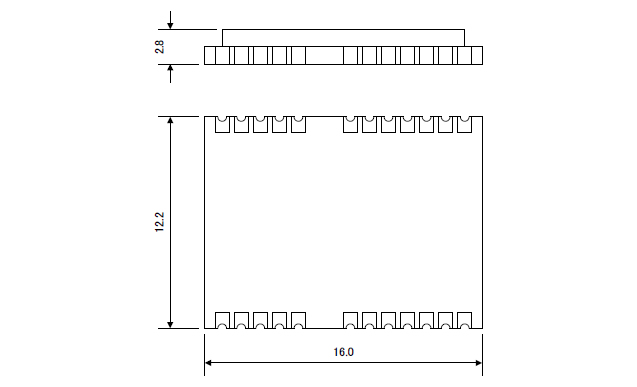

Drawing

Evaluation Kit

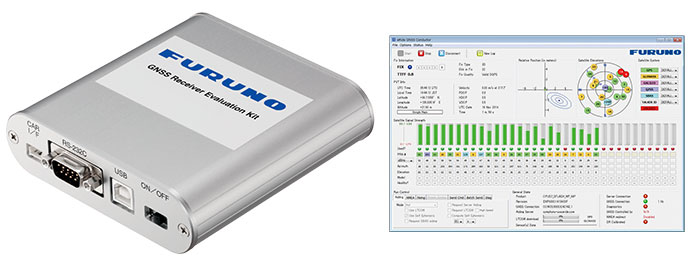

GV-87 Evaluation Kit is available to evaluate the performance of GV-87.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES

5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS-GLONASS Antenna, CAR I/F cable and CD ROM containing the Communication Software, the USB driver and the documentations
