WEATHER FAXIMILE RECEIVER Model FAX-410

Reliable weather facsimile receiver gathers and generates crucial information under all weather conditions at sea

The FAX-410 is a marine weather facsimile receiver designed to receive and print high quality, high definition weather charts and satellite images, which are transmitted from onshore stations located around the world.

Merchant Marine Fishing Vessels Workboats

Features

  • Automatic channel selection by judging the quality of signal reception

  • All known facsimile channels in 2-25 MHz bands are pre-programmed: 150 channels

  • Additional memory capacity of 164 user-programmable channels available

  • Full automatic operation by a built-in schedule timer

  • Quiet thermal printing due to minimal mechanical components

  • 10" wide thermal recording paper with clear and easy-to-watch weather charts and satellite images in nine gray levels

Specifications

GENERAL

Frequency Range
2-25 MHz in 100 Hz steps
Number of Channel
150 pre-programmed channels and 164 channels for memory
Class of Emission
F3C
Power Supply
AC model: 100/115/200/230 VAC
DC model: 12-24 VDC

Equipment List

Standard

  • RECORDING PAPER F220VP 1 ROLL
  • STANDARD INSTALLATION MATERIALS AND SPARE PARTS 1 SET
  • MAIN UNIT FAX-410 1 UNIT

Option

  • WHIP ANTENNA 2.6 M
  • MATCHING BOX ARD-1
  • RECORDING PAPER (257 MM X 30 M) F220VP
  • WHIP ANTENNA FAW-6R2 W/BRACKET
  • WHIP ANTENNA FAW-6R2A
  • PRE-AMP UNIT FAX-5 15 M
  • ANTENNA CABLE EXTENSION KIT 10 M
    20 M
    30 M
    40 M
    50 M

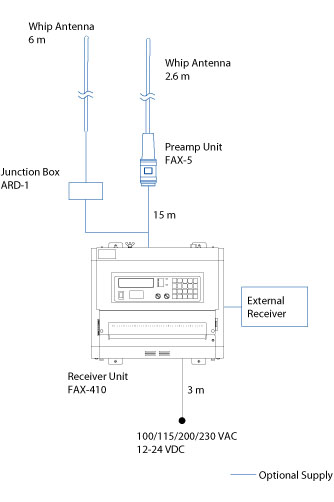

Interconnection Diagram

Documentation

  • FAX-410 Brochure
    (Last update: Mar 23, 2023)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
