AIS RECEIVER Model FA-40

The FA-40 delivers "Real-Time" AIS information to navigation systems providing critical collision avoidance information in all weather conditions

Acquisition and tracking of traffic around your vessel is absolutely necessary for safe and efficient navigation. FURUNO’s FA-40 AIS Receiver provides navigational data about other AIS-equipped vessels, increasing your situational awareness and allowing you to navigate more safely.

Recreational Boats Fishing Vessels
NavNet Connect AIS Black Box

Features

  • Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby

  • Greatly improves the level of the situational awareness even in fog, darkness or congested waterways

  • Flexible integration with various AIS compatible radar and chart plotters

  • Optional GPS antenna can be connected to receive GPS information

  • Initial setup can be done through the NMEA2000 network (TZT2/TZT3)

  • Receives both Class-A and Class-B AIS information

Specifications

GENERAL

Standards
IEC 60945 Ed.4+CORR.1,
IMO MSC.140 (76)
ITU-R M.1371-5, EN 303 413 V1.1.1 EN 301 843-1 V2.2.1
IEC 62368-1 Ed.3
RX Frequency
156.025MHz～162.025MHz
Channel Spacing
25 kHz
Waterproofing
Antenna Unit: IP56
Other Units: IP55
Power Supply
12-24 VDC, 0.3-0.2 A
Size
177(W) x55(H) x158(D) (mm)
Weight
0.45kg (1lbs)

Equipment List

Standard

  • AIS Receiver Unit
  • Cable Assembly PWR/NMEA1/SILENT cable (1 pcs); 2 m
    NMEA2000 cable (1 pcs); 2 m
    Spare tube fuse (SA, 2pcs)
  • Accessories AIS Setting Tool (CD-ROM)

Option

  • GPS Antenna GPA-017
    GPA-017S
    GPA-C01

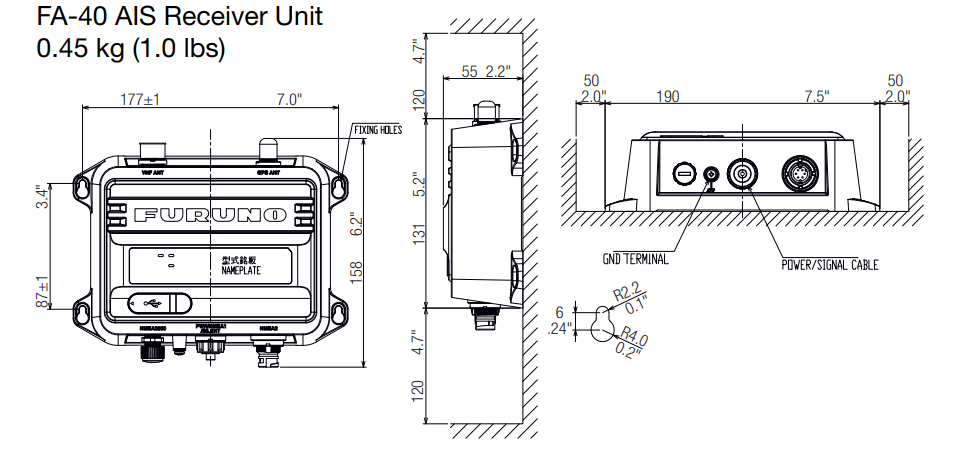

Drawing

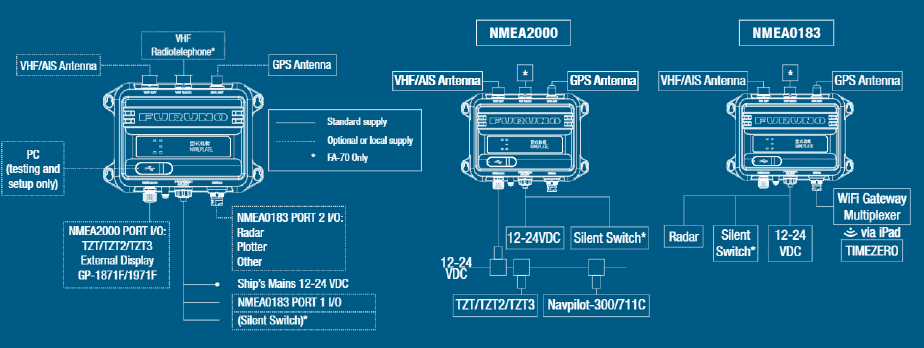

Interconnection Diagram

Documentation

  • FA-40/70 Brochure
    (Last update: Mar 23, 2023)
