- Multi-Purpose Display
Model MU-152HD/192HD
Two NEW HD monitors added to this extensive range: MU-152HD (15") and MU-192HD(19"). Both monitors feature high-brightness and high-resolution LCD for colorful video presentation even in direct sunlight.
- Merchant Marine、Fishing Vessels、Workboats、Recreational Boats
Features
Two NEW HD monitors added to this extensive range

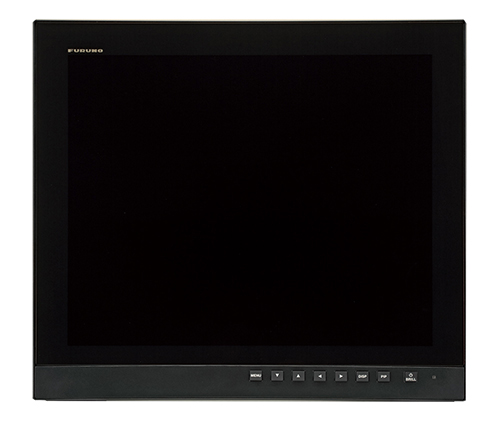

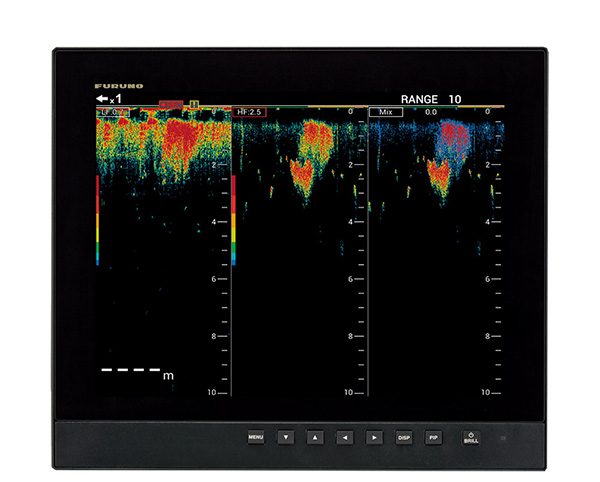

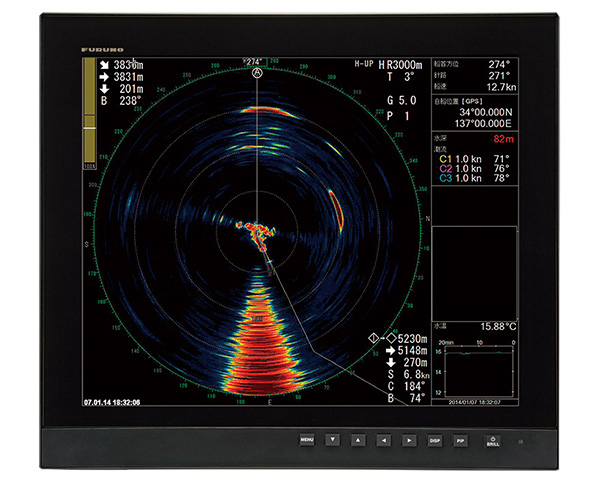

The HD MARINE DISPLAYs MU-152HD (15") and MU-192HD (19"), the latest additions to Furuno's line of high-definition monitors. Both monitors feature high-brightness and high-resolution LCD for colorful video presentation even in direct sunlight.
Model: MU-152HD
15" MARINE DISPLAY
1024 x 768 (XGA)
Model: MU-192HD
19" MARINE DISPLAY
1280 x 1024 (SXGA)

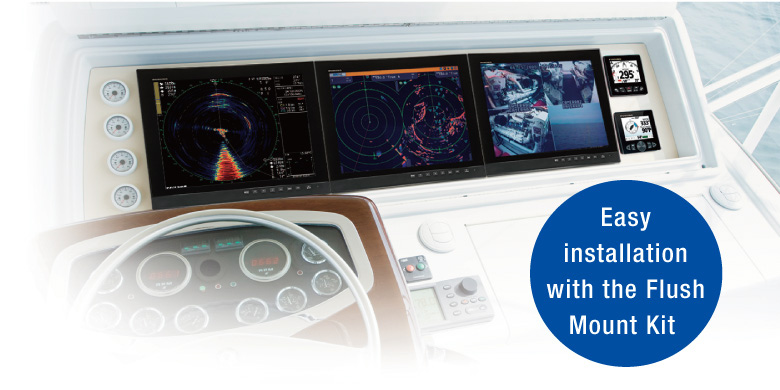

A nice addition for a neat and beautiful console

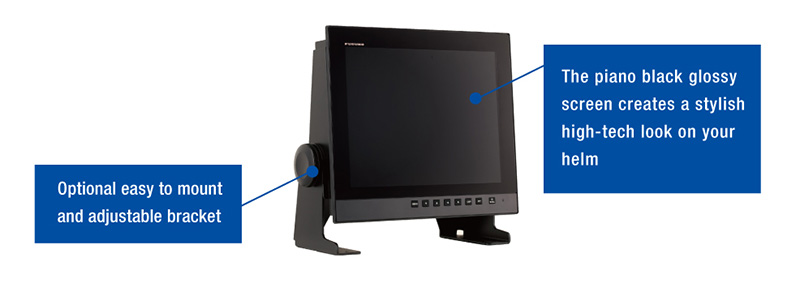

For space-saving installation and additional security, flush mount installation is available for all the MU-Display series. The display unit can be fixed from either front or rear with the flush mount kit.

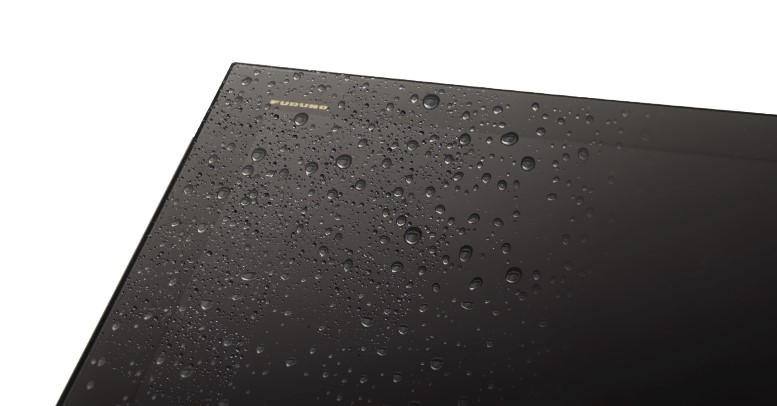

Waterproof and shock resistant design
The MU-152HD/192HD has a waterproof display and is built to stand up to tough marine conditions when mounted at fly bridge console. The display can be rinsed with water for easy, worry-free cleaning.
Compact and lightweight
The MU-Display series is slim in depth, light weight, and is so compact that it fits right into virtually any console.
Its space-saving design makes optimum use of your dashboard.
Specifications
General
MU-152HD: 15" COLOR LCD
MU-192HD: 19" COLOR LCD
MU-152HD: 1024 x 768 (XGA)
MU-192HD: 1280 x 1024 (SXGA) *Resolution from VGA to SXGA are accepted
MU-152HD: 2500:1
MU-192HD: 2000:1
(Vertical) up/down 80° or more
(Horizontal) left/right 80° or more
Max 1,000 cd/m²
HDMI: 1 port
Analog RGB: 1 port
DVI-D: 1 port
Composite: 1 port
−15 ℃ to +55 ℃
IP56 (front panel), IP22 (rear panel)
MU-152HD: 12-24 VDC, 2.5 - 1.3 A
MU-192HD: 12-24 VDC, 4.9 - 2.3 A
MU-152HD: Flush Mount：4.5 kg
MU-192HD: Flush mount：6.6 kg
Equipment List
Standard
DISPLAY UNIT MU-152HD 1 UNIT
FLUSH MOUNT KIT (for fixing at rear) 1 UNIT
INSTALLATION MATERIALS AND SPARE PARTS
DISPLAY UNIT MU-192HD 1 UNIT
FLUSH MOUNT KIT (for fixing at rear) 1 UNIT
INSTALLATION MATERIALS AND SPARE PARTS
Option
5 M
10 M
OP26-35
OP26-3
OP26-36

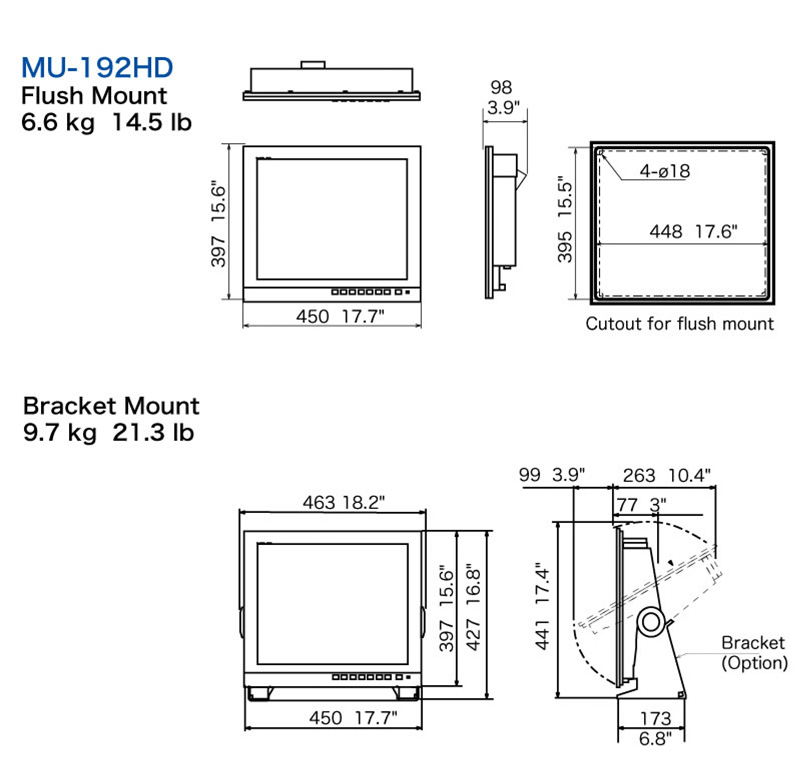

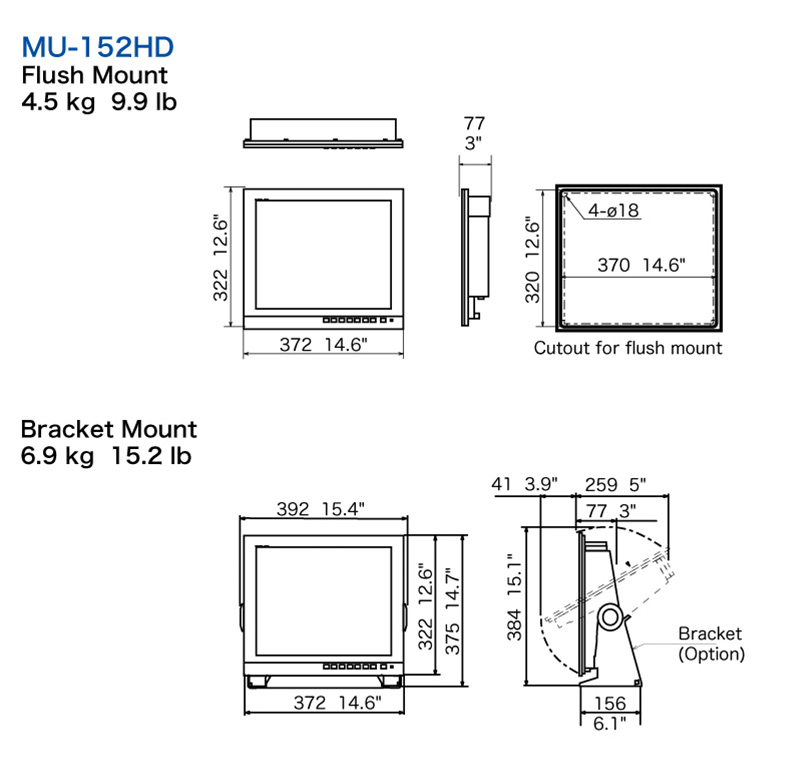

Drawing
Downloads
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
