Model WR110

The WR110 is a compact and lightweight weather Radar that runs on any standard power outlet. This model is perfect for companies and local communities. It is a smart combination of high performance and ease of installation that offers a wide range of applications and possibilities.

Meteorological Monitoring and Analysing System

Downloads

Features
Specifications

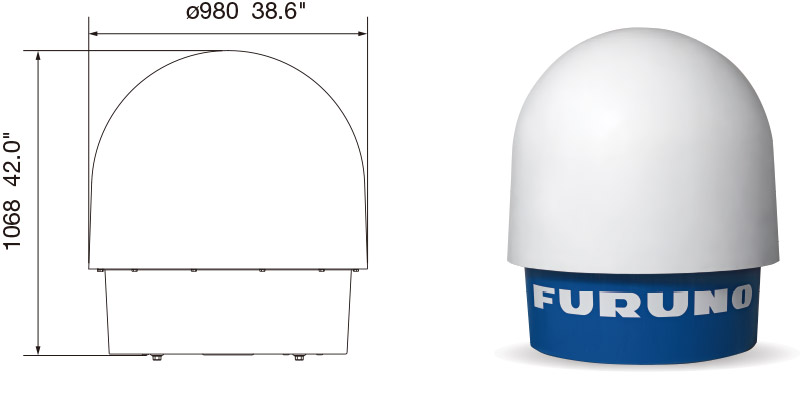

Drawing

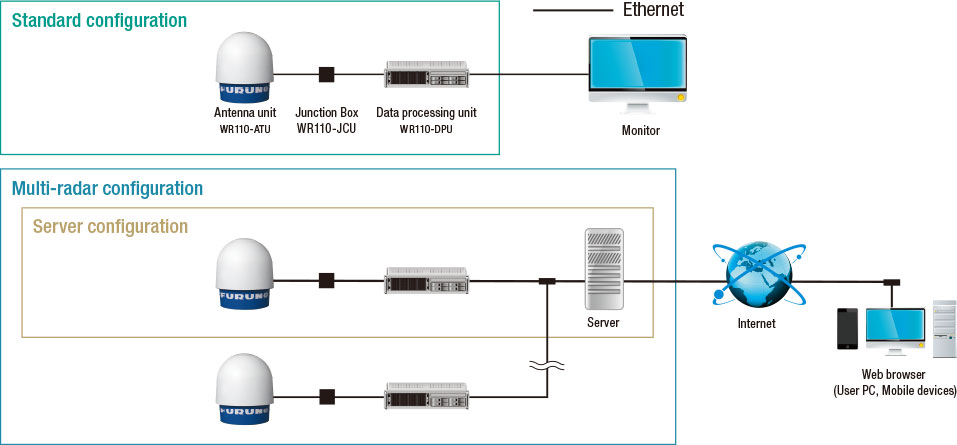

System configurations
Downloads
Contact

Features

Easy installation

Compact and lightweight (ø98 cm, 65 kg)
No heavy equipment required for installation
Compatible with regular power outlet

Reduced operating costs

Solid-State
- Highly reliable, low maintenance.
- Long life solid-state transmission device
- Low power consumption（100V, 200W）
Radar status monitoring for optimized performance

Transportability

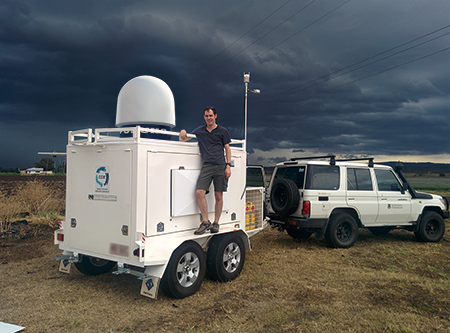

WR110 mounted on a trailer (example)

Wide range of transportation choices
Pickup, Van, Trailer, Small trucks...
Heading sensor for azimuth adjustment*
Vibration isolator for safe relocation and transport*
MIL-STD-810G Test Method 514.7 ANNEX C Category 4 Secured Cargo, Common carrier (US highway truck vibration exposure) Test1
WR110 case for easy transportation*

Option

Various software applications available

Various data format compatibilities

Various data formats used in major software packages, such as Baron Lynx and Vaisala IRIS Focus, are available

Specifications

Antenna Polarization	Single polarization (Horizontal)
Operating Frequency	9.4 GHz band
Pulse Width	0.5 - 50 μs
Pulse Repetition Frequency(PRF)	up to 2,000 Hz
Beam Width	2.7 degrees
Peak Output Power	100 W
Vertical Scan Angle	-2 to 182 degrees (adjustable)
Antenna Rotation Speed	0.5 – 10 rpm
Observation Range	70 km max.
Scan Modes	PPI, Volume Scan, Sector PPI, Sector RHI
Output Parameters	Reflectivity factor Zh (dBZ), Doppler velocity V (m/s), Doppler velocity width W (m/s), Rainfall intensity Rain (mm/h)
Data Correction	Distance and Rain attenuation, Doppler Velocity Folding
Doppler Speed	+/-64 m/s
Unwanted Signal Removal	Land clutter suppression and Interference Rejection
Available Data Formats	Binary, CSV, JPEG, CF/Radial, Opera Odim HDF5, NEXRAD Level 2
Operating Temperature Range	-10 to +50°C (Start-up), -20 to +50°C (In operation)
Maximum Wind Survival Speed	90 m/s
Power Supply	100-240 VAC, Single phase, 50/60 Hz
Power Consumption	350 W max., 200 W typ
