Model WR2120

Meteorological Monitoring and Analysing System

Downloads

Features
Specifications

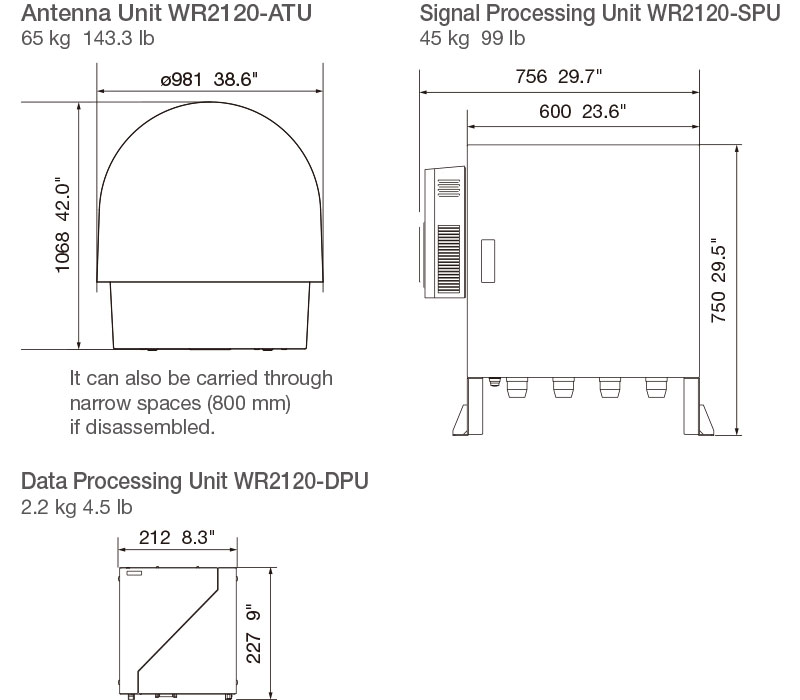

Drawing

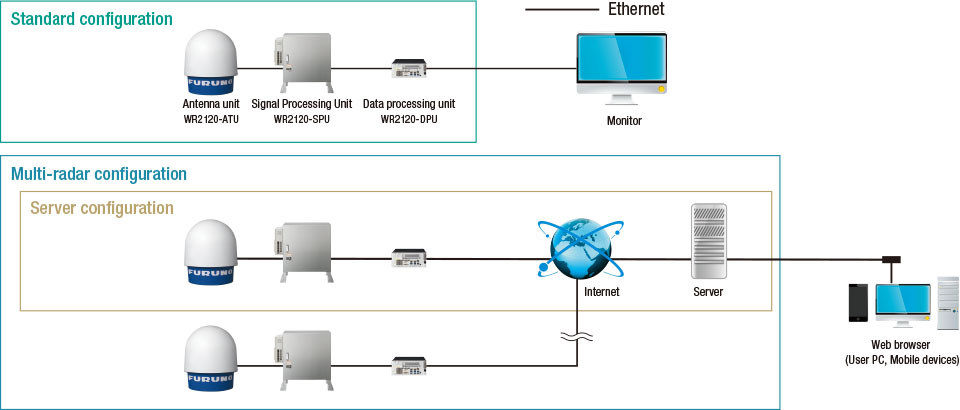

System configurations
Downloads
Contact

Features

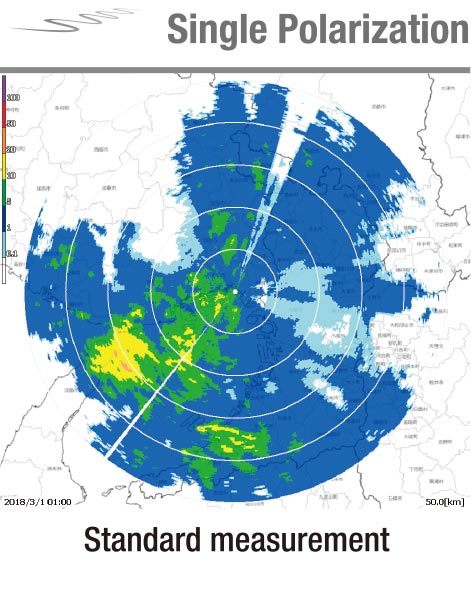

Dual Polarization

High precision rain observation & accurate measurements

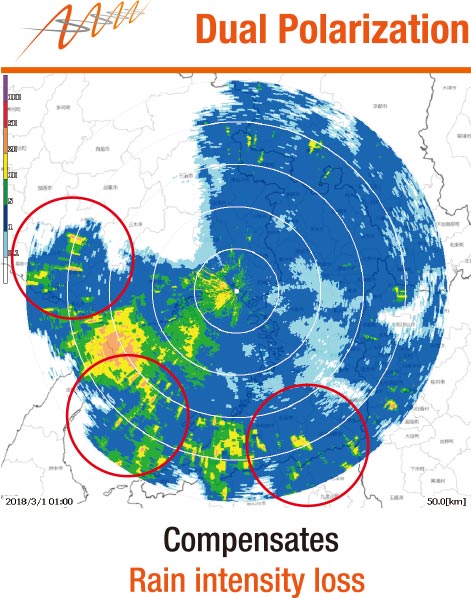

The Dual Polarization of the WR2120 recovers signal intensity loss and attenuation caused by heavy rain.

Particle classification

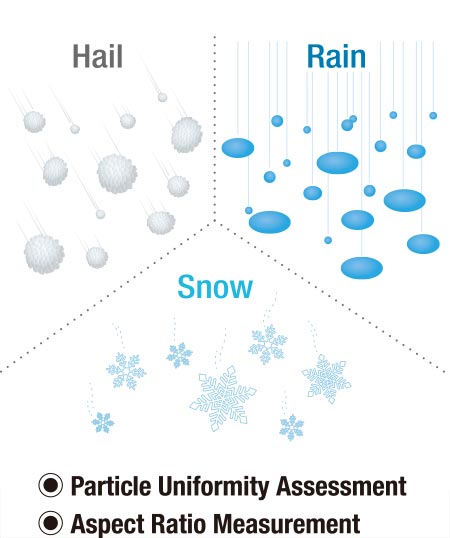

Several data such as echo strength or phase difference, provided by the WR2120, can be utilized to assess the nature of the detected particle and deduct whether it is Snow, Hail or Rain.

Easy installation

Very compact and lightweight (ø1m, 65 kg)
No heavy equipment required for installation
Compatible with regular power outlet

Reduced operating costs

Solid-State
- Reliable, less maintenance, long life solid-state transmission device
- Low power consumption（100V, 200W）

High resolution & accurate measurements

Outputs dual polarimetric Doppler information (Zdr, Kdp) for computing diameter of precipitation particles as well as discriminating types of precipitation (rain, snow, etc.)
3D scan to observe the vertical structure of a cumulonimbus

Various software applications available

Various data format compatibilities

Various data formats used in major software packages, such as Baron Lynx and Vaisala IRIS Focus, are available

Carbon fiber antenna dish

Reduction of the antenna weight
Reduction of damage and mechanical stress due to shocks and vibrations

Specifications

Antenna Polarization	Dual polarimetric (Vertical and Horizontal), Simultaneous transmission/receiving
Operating Frequency	9.4 GHz band
Pulse Width	0.5-50 us
Pulse Repetition Frequency (PRF)	2000 Hz max.
Beam Width	2.7° (both horizontal and vertical beams)
Peak Output Power	100 W (both horizontal and vertical beams)
Vertical Scan Angle	-2°to 182° (adjustable)
Horizontal Scan Angle	360°(continuous)
Antenna Rotation Speed	0.5-10 rpm (adjustable)
Observation Range	70 km max
Scan Modes	PPI, Volume Scan, Sector PPI, Sector RHI
Output Parameters	Reflectivity factor Zh (dBZ), Doppler velocity V (m/s),Doppler velocity width W (m/s), Cross polarization differencephase ødp (deg), Specific differential phase KDP (deg/km),Correlation coefficient between two polarizations ρhv, Horizontal and VerticalDifferential reflectivity ZDR (dB), Rainfall intensity R (mm/h)
Doppler Speed	+/-64 m/s
Available Data Formats	Binary, CSV, JPEG, CF/Radial, Opera Odim HDF5, NEXRAD Level2
Operating Temperature	-10 to +50°C (Start-up), -25 to +50°C (In operation)
Maximum Wind Survival Speed	90 m/s
Sensitivity-reflectivity	Typ. 22 dBZ@50 km @Q0N 50 us 2 MHz (SNR = 4dB)
Gain	≧ 33.0 dBi
Transmitter Type	Solid state
Power Supply	100-240 VAC, Single Phase, 50/60 Hz
Power Consumption	650 W max., 470 W typ.
