WASSP MULTI BEAM SONAR
Model F3 Series
Outstanding performance, versatility and value.
That's what you expect and exactly what you get with the new WASSP F3 series.
That's what you expect and exactly what you get with the new WASSP F3 series.
This next generation multi beam sonar has been redesigned from the ground up around a new fully digital DRX transceiver. It delivers on every front - accurate, versatile, user-friendly and most importantly, scalable to your exact needs. The only thing that hasn't changed with the F3 series is our commitment to bring you a multi beam sonar at a cost-effective price.
- Fishing Vessels
Features
Generate your own personal Multibeam Chart
The F3 series is set to revolutionise inshore fisheries with its Wideband CHIRP technology. Scanning a 120 degrees swath port to starboard and using 224 beams, the F3 series delivers each and every time. By using advanced signal processing, you get a complete picture of seafloor bathymetry with ease.

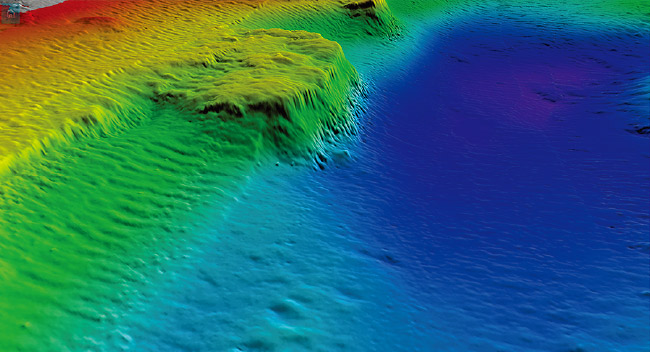

WASSP 3D
- Capability to save chart into the CDX software
- TIMEZERO compatible with optional licence
New easy-to-use interface

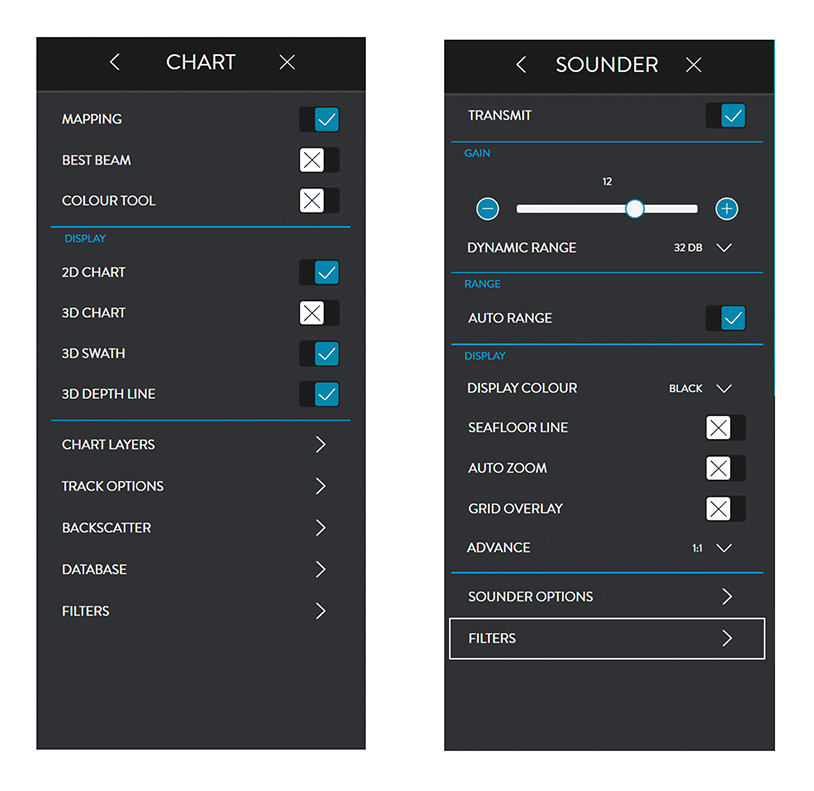

The F3 series inctoduce a new simplified software “WASSP CDX” for control, visualisation and data management while still providing a comprehensive set of functions to meet the most demanding fishing requirements.
- Cost-effective solution for multiple applications
- Choose your own functions with new licensing options

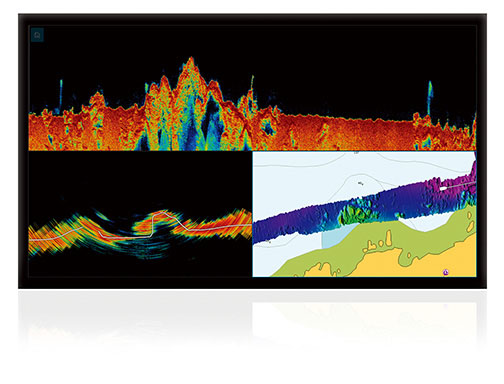

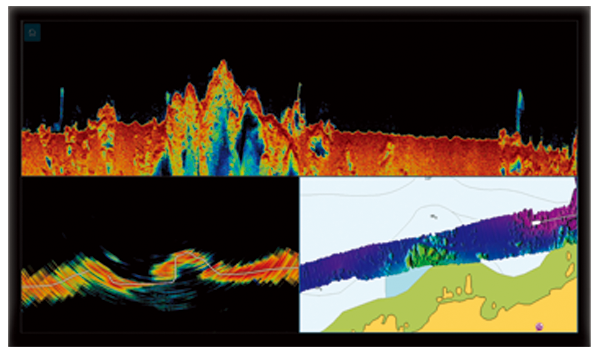

Various presentations

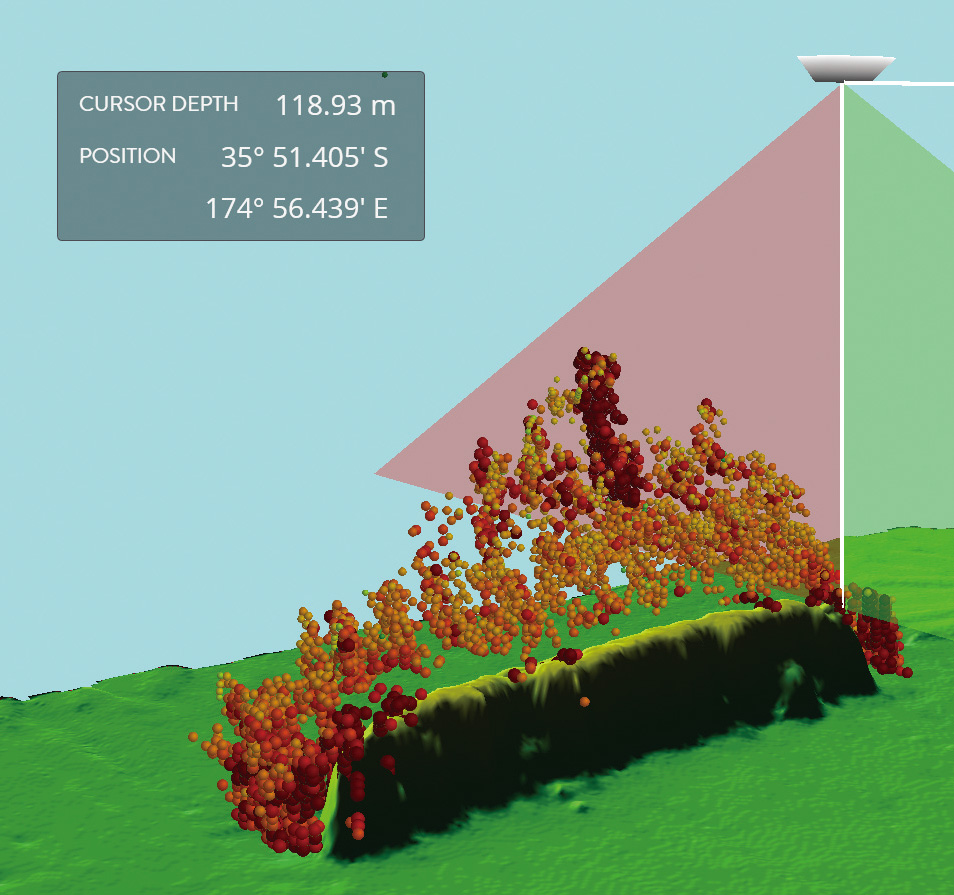

Fish Density Overlay

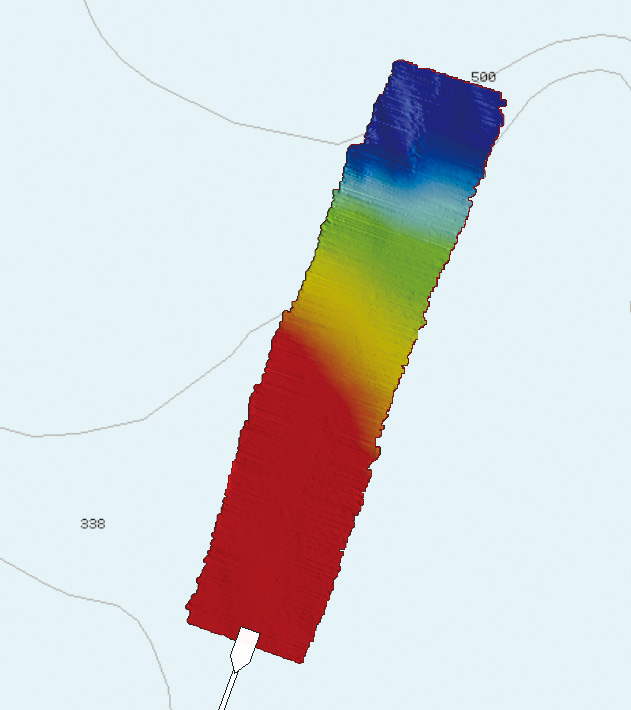

2D Mapping to 500 m

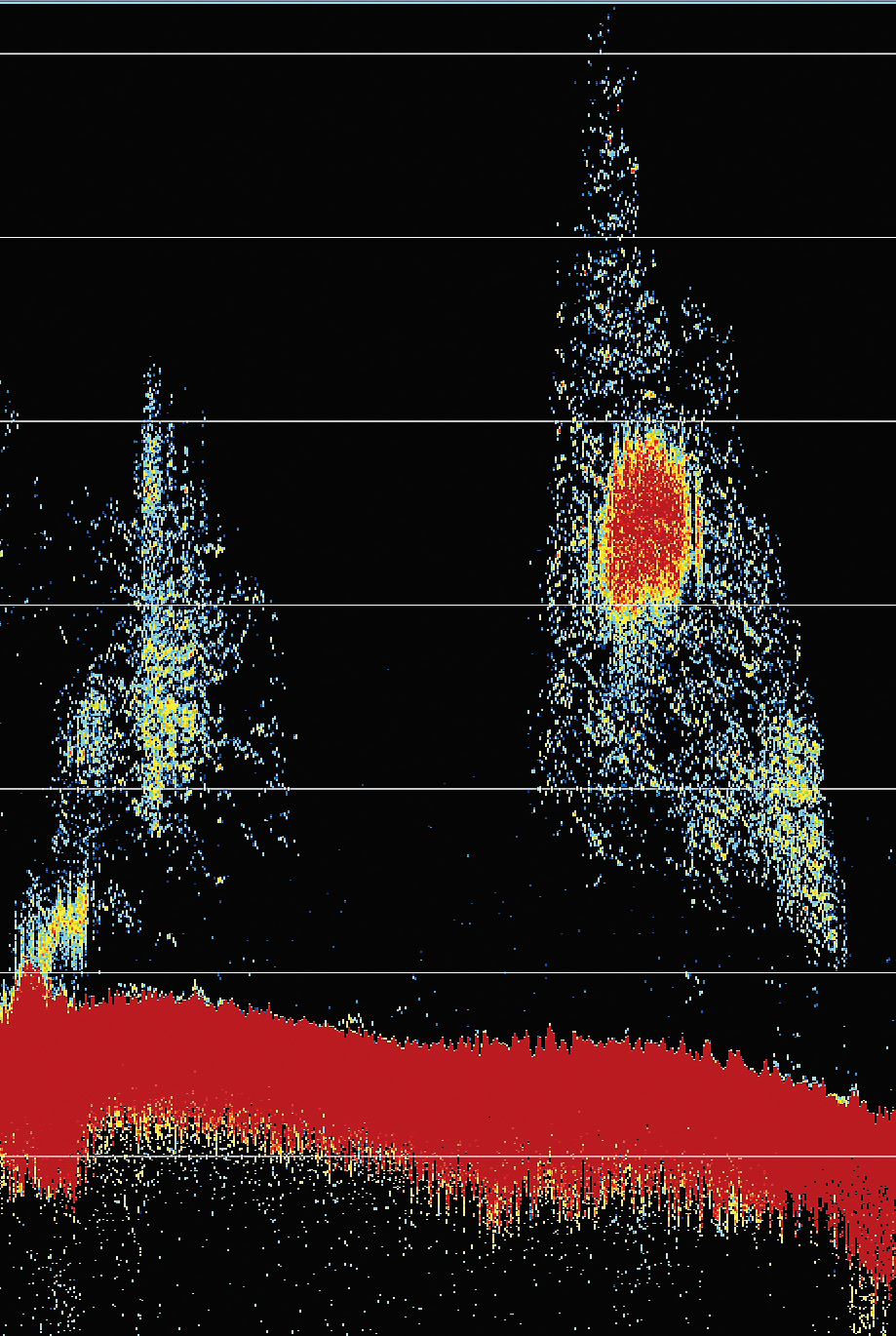

Sounder (60 kHz)

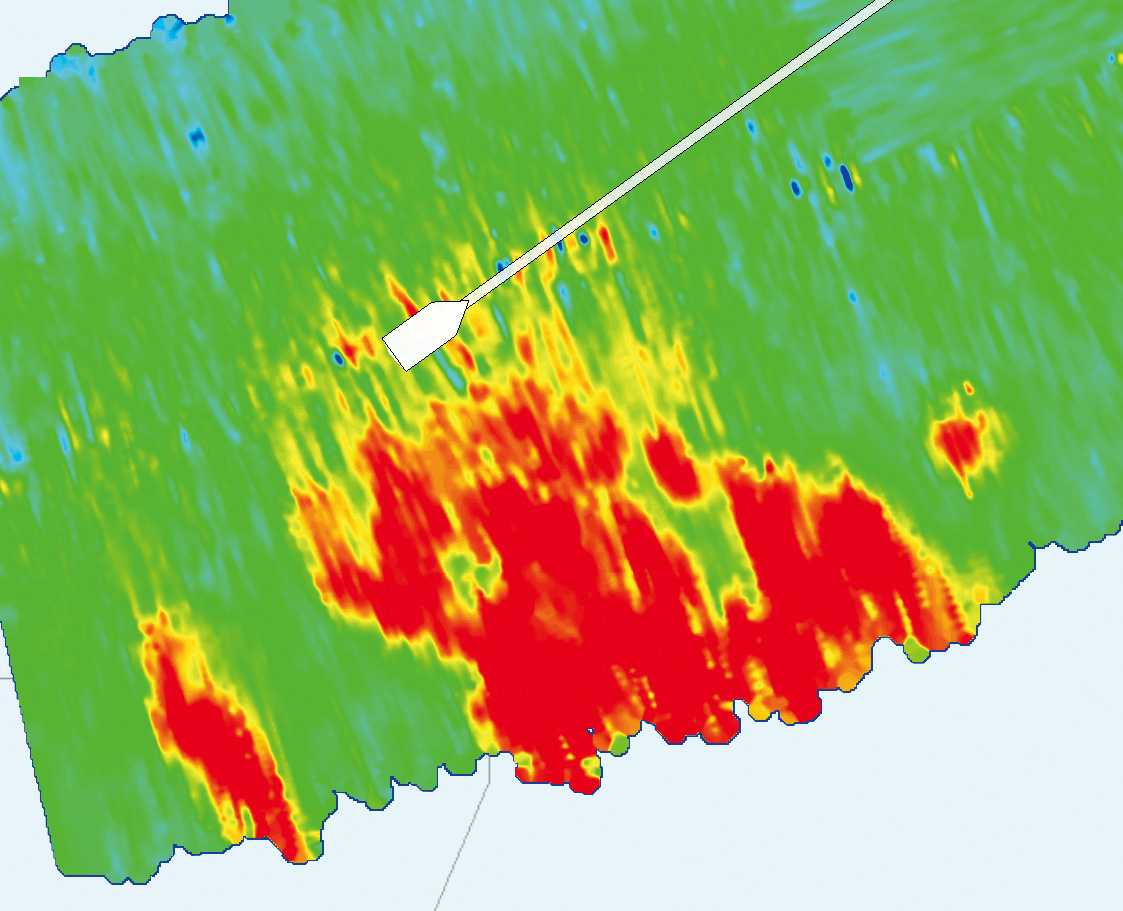

Backscatter (Bottom Hardness) at 200 m

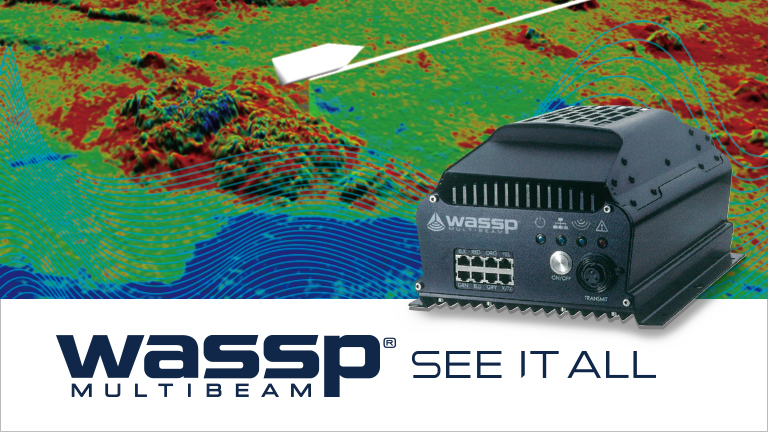

All-in-one DRX transceiver, incredibly versatile and ready for the next technology advances

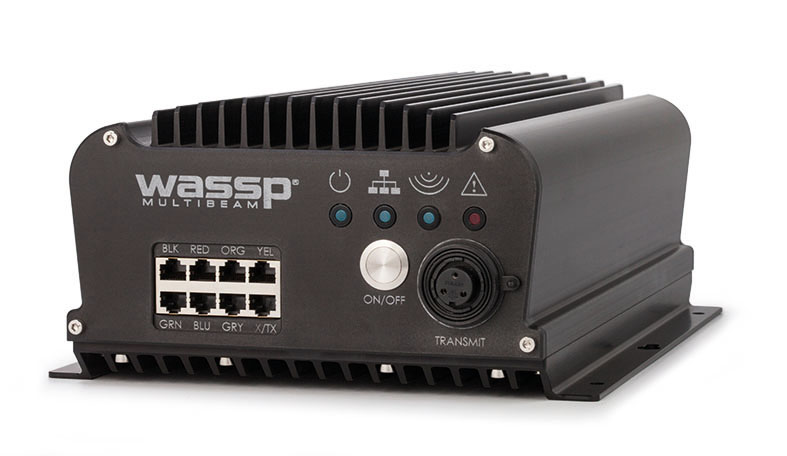

This innovative all-in-one “BlackBox” is not just a robust hardware platform but also introduces cutting-edge technical innovations and incredible versatility for finding your catch. This opens countless new possibilities for your operations.

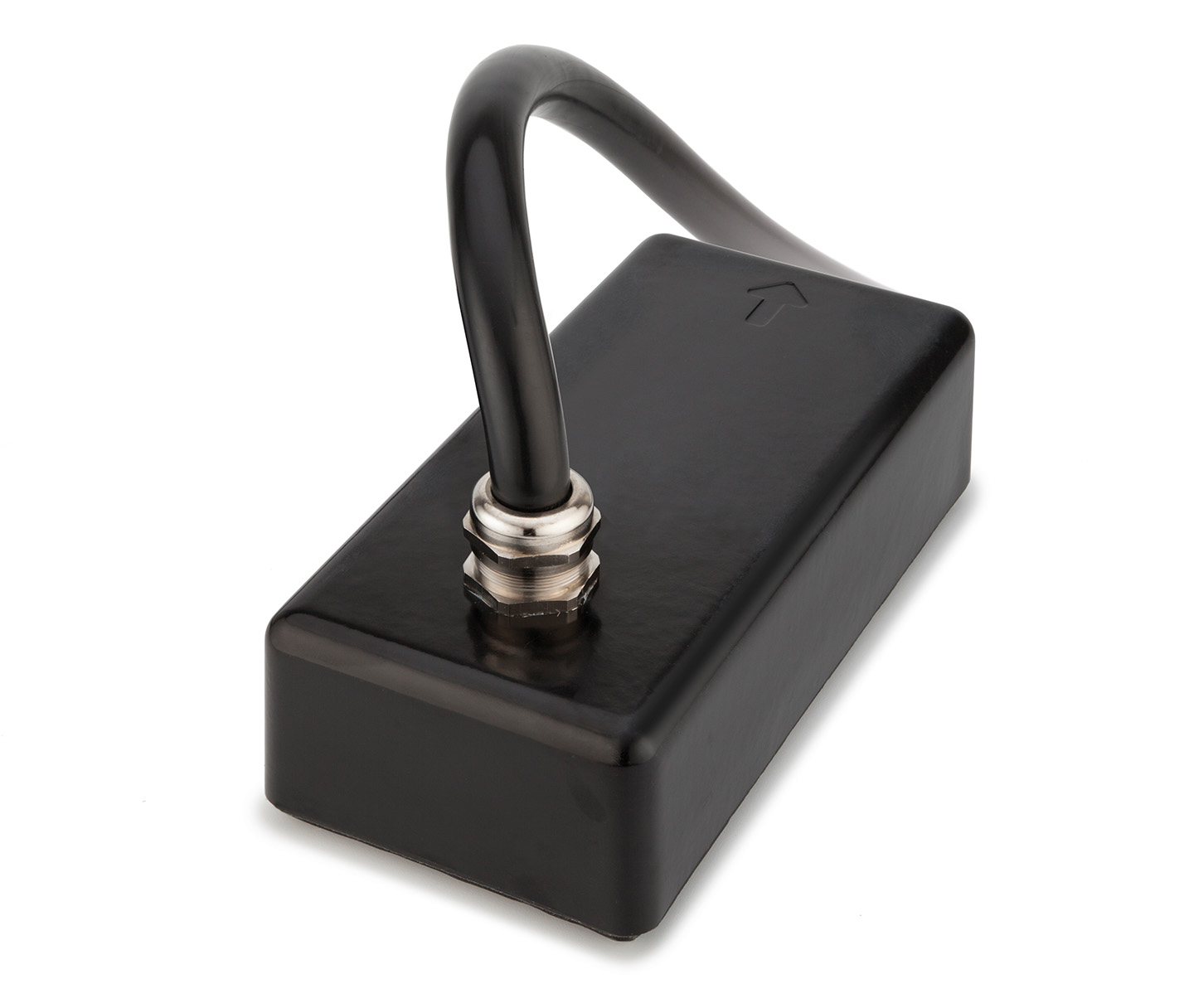

WASSP transducer
The WASSP sonar transducer is available in 2 frequencies.
- 136-184 kHz Wideband (160 kHz center)
- 68-92 kHz Wideband (80 kHz center)
Specifications
General
TX Frequency
Wide band
F3/F3i: 160 kHz
F3L/F3Li: 80 kHz
Detection Range
F3: 200 m* (Side Beam Best Performance)
400 m* (Main Beam Directly Under Boat)
F3L: 450 m* (Side Beam Best Performance)
900 m* (Main Beam Directly Under Boat)
*Depth capability subject to a variety of external factors.
Beam Width
120° x 4° (Athwartships x Fore-aft)
PS: 4.4°
Interface
NMEA0183
GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA
Display
Display Modes
Bathymetry, Sonar polar view, Sounder (single, triple & quint beam)
(Licensing options)
Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides,
other export formats*
* available in 2017
Minimum PC Specs
OS
Windows 8.1, 10
CPU
2 Ghz, 4 Cores/4 Threads
Memory
8 GB (Min. 4 GB)
Screen Resolution
Full HD 1920 x 1080 (Min. XGA 1024 x 768)
Environment
Temperature
0°C to +50°C (storage:-20°C to +85°C)
Relative Humidity
IEC60945, 93 % or less at +40°C
Waterproofing
IP53, Bulkhead mounted (IP67 option available)
Vibration
IEC60945 Ed.4
Power Supply
Transceiver Unit
9 to 32 VDC
Others
Size
Transceiver Unit: 216(W) x 260 (D) x 205 (H) mm
Transducer:
WMB-160 (160 kHz) ; 98 (H) x 330 (W) x 168 (D) mm
WMB-80 (80 kHz); 133 (H) x 533 (W) x 340 (D) mm
Weight
Transceiver Unit: 8.3 kg
Transducer:
WMB-160 (160 kHz) ; 15 kg
WMB-80 (80 kHz); 39 kg
Equipment List
Standard
Transceiver unit
DRX (F3 DRX/WSP-603-200)
WASSP CDX
(PC application)
Transducer unit F3 or F3L
F3 (G3 Transducer: 160 kHz) with 10 m cable
or
F3L (G3 Transducer: 80 kHz) with 20 m cable
WASSP sensor package*
*For F3i (WMB-1320Fi)/F3Li (WMB-1320FLi)
Option
F3 (G3 TRANSDUCER: 160 kHz) with 20 m cable
Gland
(aluminum/plastic/steel)
Satellite Compass plus cable with WASSP sensor box*
*For F3 (WMB-1320F)/F3L (WMB-1320FL).
WASSP sensor box

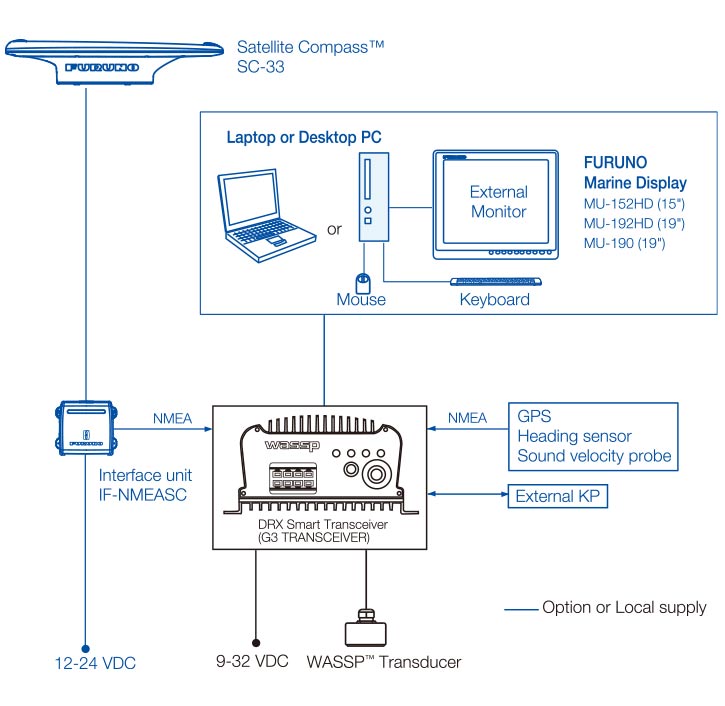

Interconnection Diagram
