Black Box WEATHER FAXCIMILE RECEIVER Model FAX-30

Cost effective paperless Weather FAX & Navtex

The FURUNO FAX-30 can turn any NavNet display or PC into a weather fax and NAVTEX receiver for obtaining weather forecasts and safety information.

Recreational Boats Merchant Marine
NavNet Connect Black Box Ethernet Plug & Play

Features

  • Connection to a NavNet display or PC through an Ethernet

  • User friendly softkey menu operation on NavNet display

  • Web navigation using Internet Explorer or Netscape

  • Print images and messages from generic PC and printer

  • Storage of maximum 12 images on NavNet display (depending on file size)

  • Thumbnail view for easy selection of stored images

  • Noise Rejection for clear image

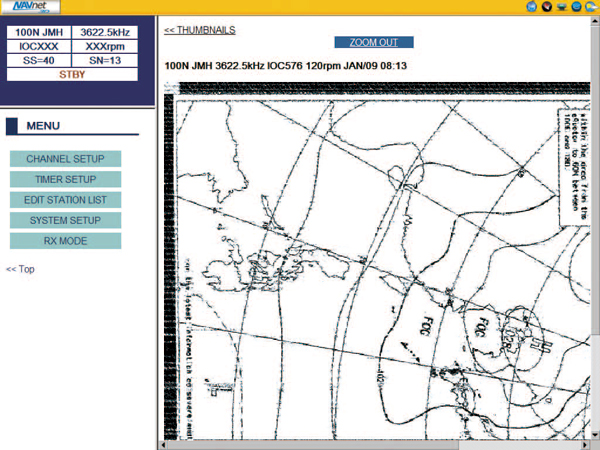

Screenshots

Specifications

GENERAL

Frequency Range
FAX: LF 80-160kHz, MF/HF 2-25 MHz
NAVTEX: 490kHz, 518kHz
Number of Channel
1,000 channel
Receiving System
DOUBLE SUPERHETERODYNE
Class of Emission
FAX: F3C, J3C
NAVTEX: F1B
Storage
FAX: 12 PICTURES
NAVTEX: 130 messages
Power Supply
12-24 VDC
Size
300(H) × 217(W) × 48(D)
Weight
2.0 kg

Equipment List

Standard

  • MAIN UNIT FAX-30
  • POWER CABLE (3.5 M) 1 PC
  • NAVNET CABLE (5 M) OR LAN CABLE ASSY 1 PC
  • INSTALLATION MATERIALS AND SPARE PARTS 1 PC

Option

  • PRE-AMP UNIT FAX-5 (15 M)
  • WHIP ANTENNA 2.6 M
  • IMAGE PRINTOUT SOFTWARE FAX-30-APT
  • LAN CABLE ASSEMBLY 5 M (MJ/RJ)
  • HUB ADAPTOR CABLE (CROSS) MJ6R/RJ45
  • ANTENNA CABLE EXTENSION KIT 10 M
    20 M
    30 M
    40 M
    50 M
  • NAVNET CABLE MJ-A6SPF0014-010C/050C/100C/200C/300C

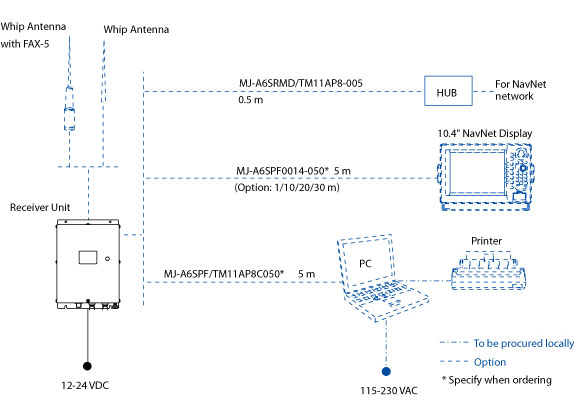

Interconnection Diagram

* Specifications subject to change without notice.
