- Current Indicator
Model CI-68

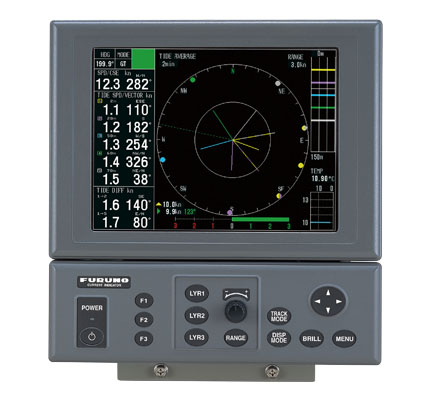

The CI-68 displays tide speed and direction at three depth layers and ship's speed on a high definition 10.4color LCD.
- Fishing Vessels、Workboats
Features
Compact 3-unit design for ease of installation and maintenance
High definition 10.4" color LCD
Black box system configuration allows for use of optional CRT or LCD monitors
Continuous display of tide speed and direction at five different depth layers
Triple-beam system for less error in tide current detection
True tide current presentation with external GPS navigator and Satellite compass
Screenshots

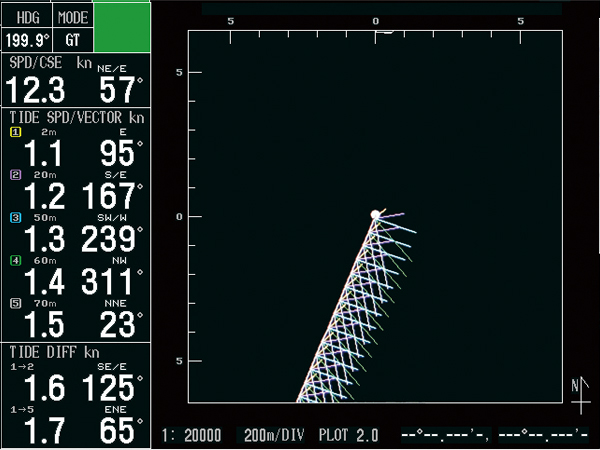

TIDE VECTOR
TRACK

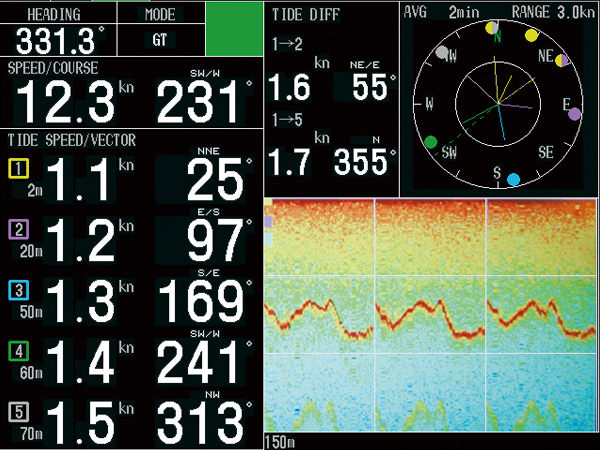

ECHO LEVEL

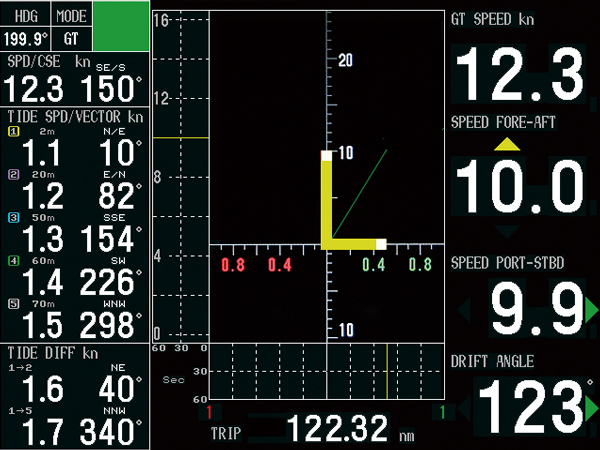

TEXT

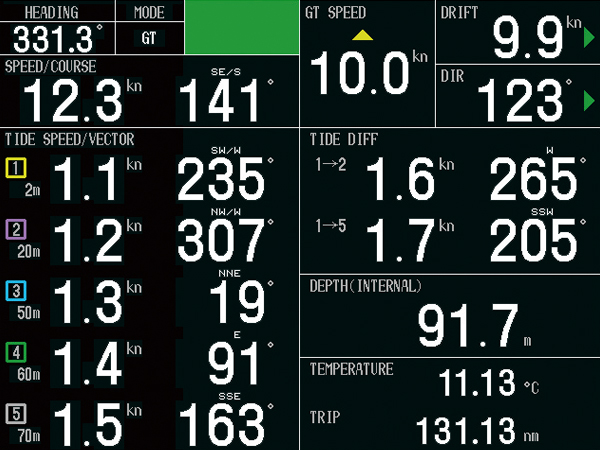

SHIP'S SPEED

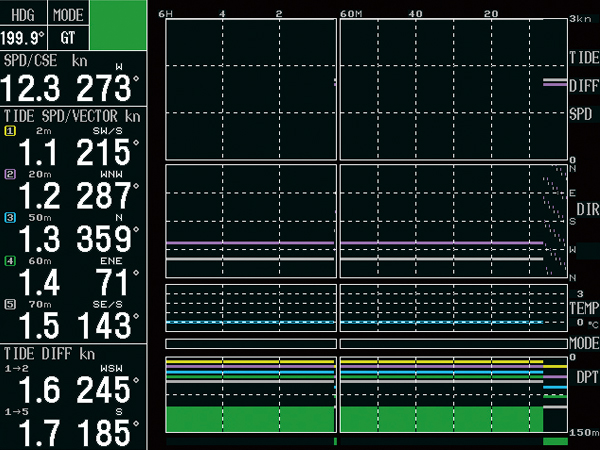

TIDE LOG
Specifications
General
10.4" TFT color LCD, 640 x 480 pixels
0.0～9.9 kn
± 2% of ship's speed + 0.2 kn
5 layers
2 to 75% of water depth up to 150 m
(Over 22 m of water depth is required in Ground tracking mode. Over 40 m water depth is required in Water Tracking mode)
244 kHz
Transceiver/Monitor unit: IPX0
Control unit: IPX2 (panel), IPX0 (chassis)
Junction box: IPX4
Transducer: IPX8
115/230 VAC
327 (H) x 290 (W) x 171 (D)
Display/Control Unit (MU-100C・CI-6888: 6.0 kg)
Transceiver Unit (CI-6810: 19.0 kg)
Transducer (CI-620-1-68: 21 kg)
Equipment List
Standard
MU-100C or BLACK BOX TYPE (LESS DISPLAY UNIT) Available
1 UNIT
CI-6888
1 UNIT
CI-6810-E-100 (100 VAC) /
CI-6810-E-200 (200 VAC)
1 UNIT
CI-620-2-68 with 20 m cable
(Specify when ordering)
1 UNIT
CI-620-T-F
1 UNIT
CI-620-K-S
1 UNIT
CI-630
with 10 m cable between CI-6810 and CI-630
1 SET
including 20 m Signal Cable Assy (CONTROL-TRANSCEIVER)
1 SET
Select Flatpanel Color LCD locally having a capability of VGA (640X480) input.
Option
CI-630
TR-2451
CI-620-T-S
(for steel ship)
CI-620-K-S
(for steel ship)
Z-6FVNV-SX-C 3P+1P
5M
10M
20M
30M
66S1239 (5M)
66S1239 (10M)
To separate Control Unit from Monitor MU-100C, optional 66S1239 (with 5 m cable) or 66S1239 (with 10 m cable) is required.
BOX TYPE
V TYPE
MU-100Ｃ
5M
10M
15M
20M
30M

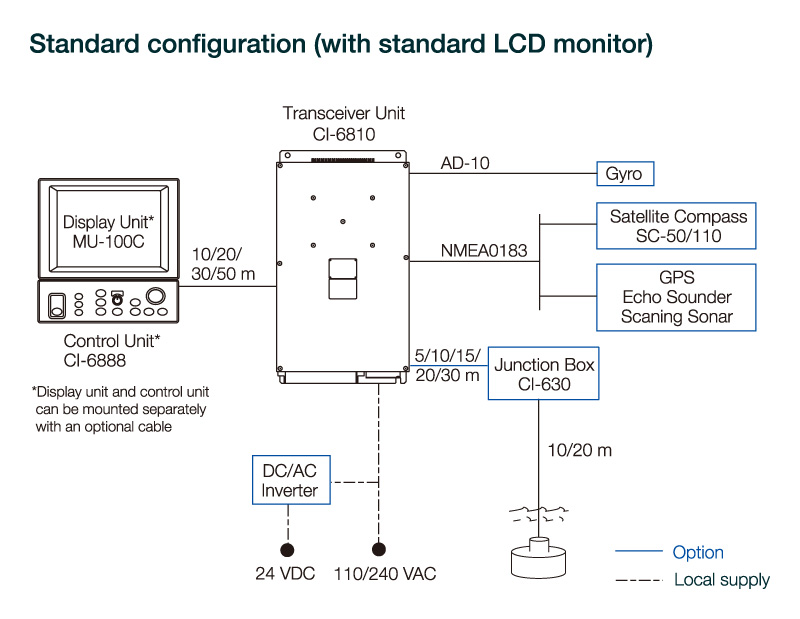

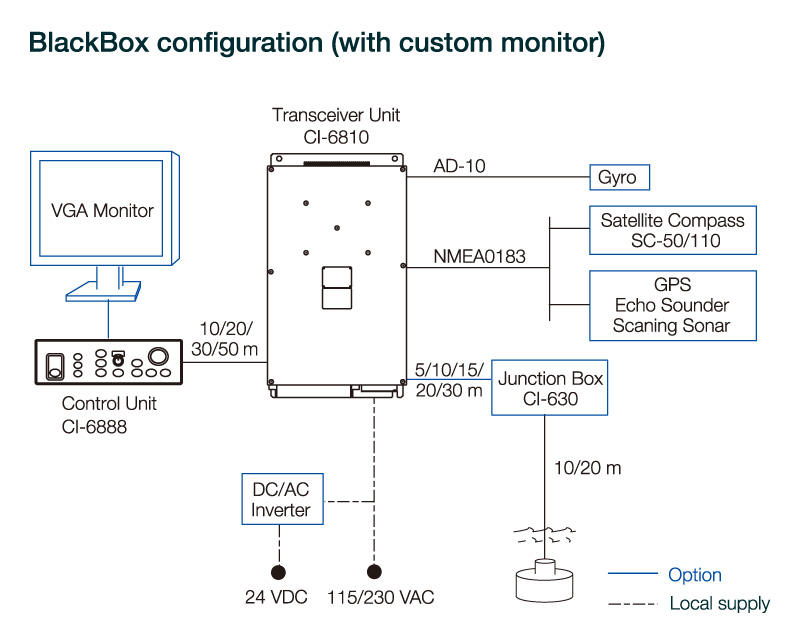

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Feb 4, 2025 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
