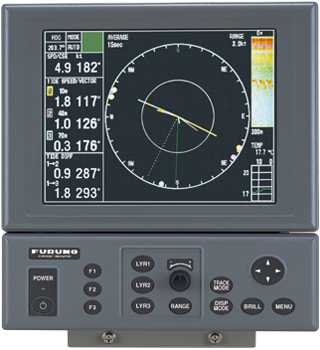

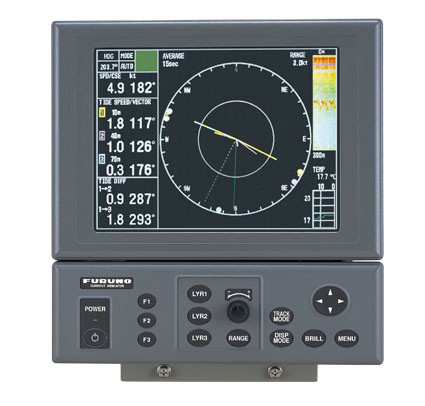

- Current Indicator
Model CI-88
The high-definition 10.4 color LCD continuously presents tide speed and direction at three depth layers simultaneously in addition to ship's speed and drift.
- Fishing Vessels、Workboats
Features
Compact design and single-mold transducer for ease of installation and maintenance
High definition 10.4" color LCD for displaying tide current detections
Black box system configuration allows use of commercial VGA monitors
Continuous display of tide speed and direction at the three selected depth layers
Tide speed/direction and ship's track can be plotted on screen for larger area tide observation
Triple-beam system for less error in tide current detection
True tide current presentation with external GPS navigator and Gyrocompass inputs at deep water locations
Water temperature graph helps locate current rip (Temperature sensor required)
Screenshots

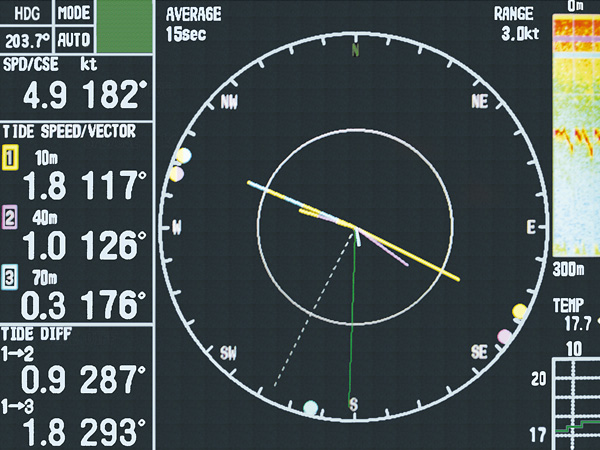

TIDE VECTOR

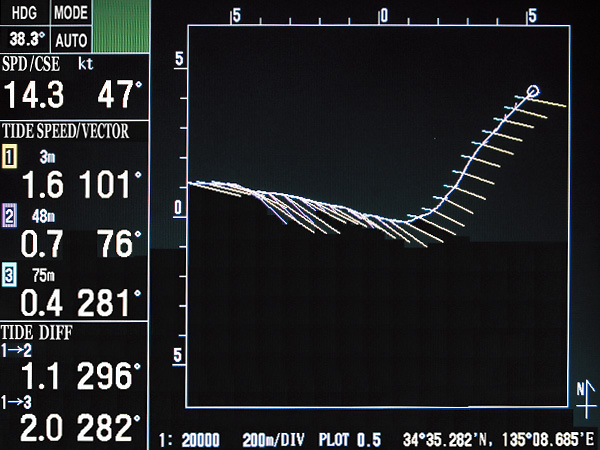

TRACK

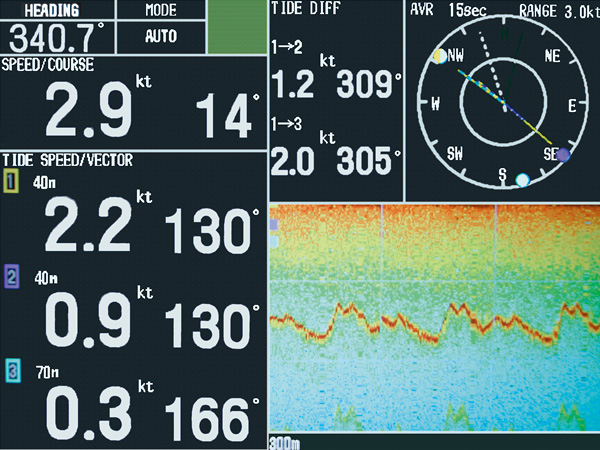

ECHO LEVEL

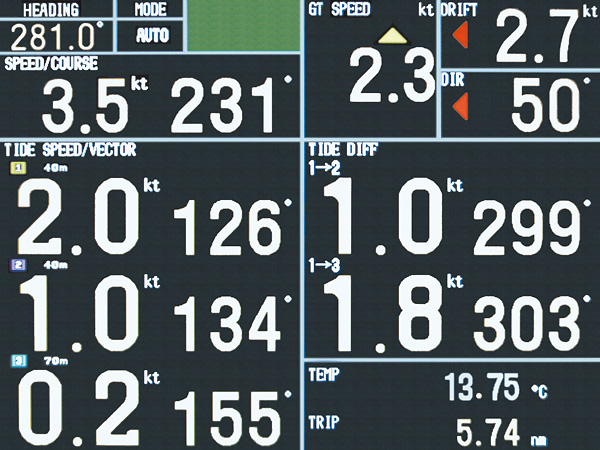

TEXT

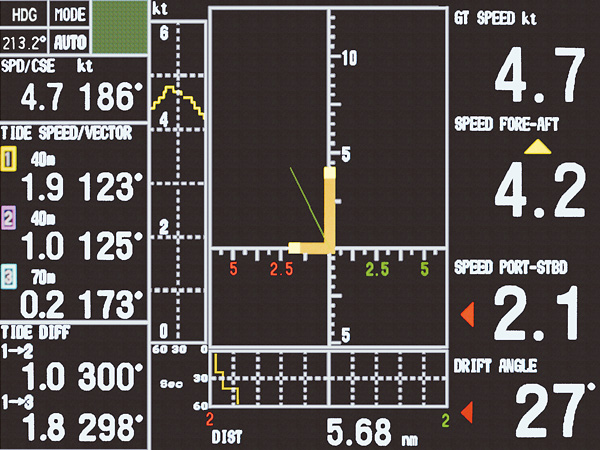

SHIP'S SPEED

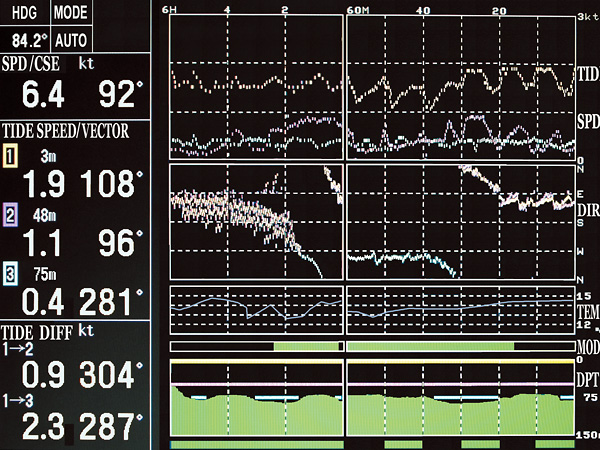

TIDE LOG
Specifications
General
10.4" TFT color LCD, 640 x 480 pixels
0.0〜9.9 kn
288 kHz
DC24 V、2.5 A
327 (H) x 290 (W) x 171 (D)
Equipment List
Standard
MU-100C or BLACK BOX TYPE (LESS DISPLAY UNIT) Available
1 UNIT
1 UNIT
1 UNIT
with 10 m cable
1 PC
including 10 m Signal Cable Assy (CONTROL-TRANSCEIVER)
1 SET
Select Flatpanel Color LCD locally having a capability of VGA (640X480) input.
Option
10M
20M
30M
50M
66S1239 (5M)
66S1239 (10M)
To separate Control Unit from Monitor MU-100C, optional 66S1239 (with 5 m cable) or 66S1239 (with 10 m cable) is required.
CI-630
CI-820
(KEEL MOUNT)
CI-822
CI-821
(SIDE MOUNT)
CI-823
CI-8840-1 (10 m)
CI-8840-2 (20 m)
BOX TYPE
V TYPE
MU-100Ｃ
TFB-5000CI
TRB-1500 (1)
5M
10M
15M
20M
30M

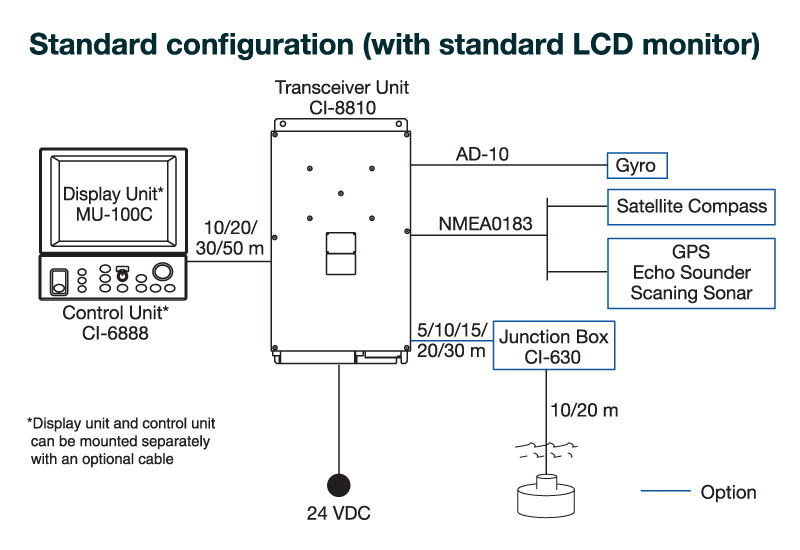

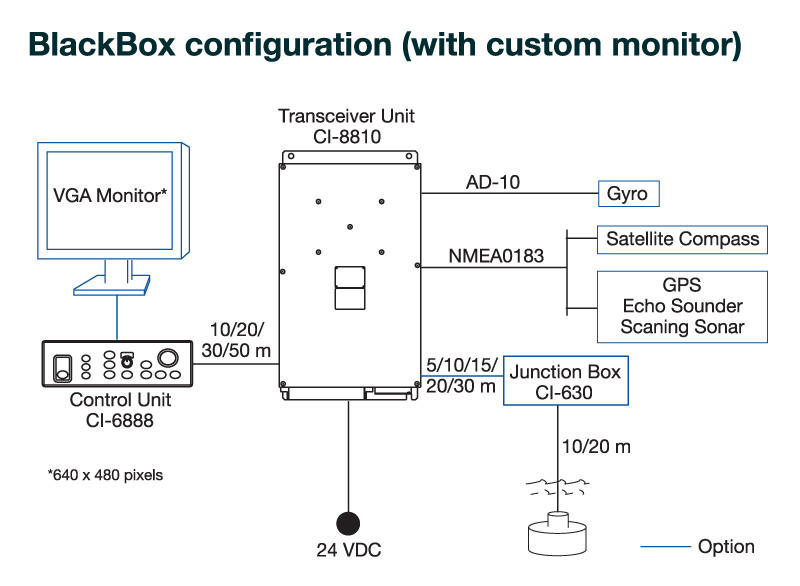

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Feb 4, 2025 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
