INSTRUMENT / DATA ORGANIZER Model FI-70

All your info... All in one, for powerboats and sailboats alike

The FI-70 INSTRUMENT/DATA ORGANIZER sports a vibrant 4.1" bonded color display that is visible even in the harshest sunlight conditions. Utilizing the CAN bus network, external sensors can easily be connected for simple and reliable operation. The FI-70 features an easy to operate graphical user-interface. It allows you to customize almost every display property, allowing you to choose the information you want to be displayed, in the way you want to see it!

Recreational Boats Fishing Vessels
NavNet Connect CAN bus

Features

  • Beautiful 4.1" QVGA screen that is sunlight viewable

  • Simple and intuitive interface with full customizability

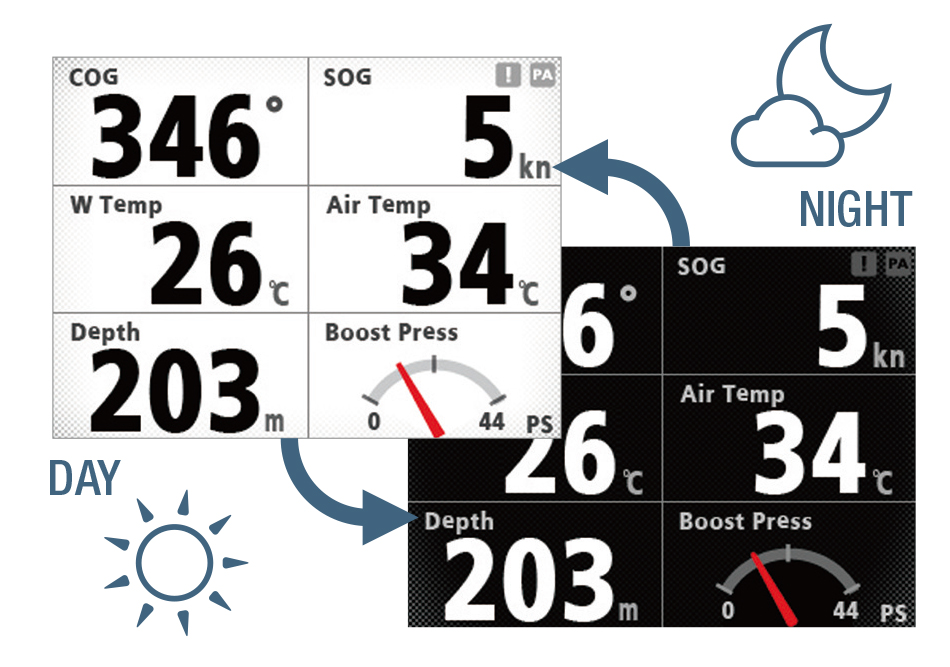

  • Day & Night mode for improved visibility

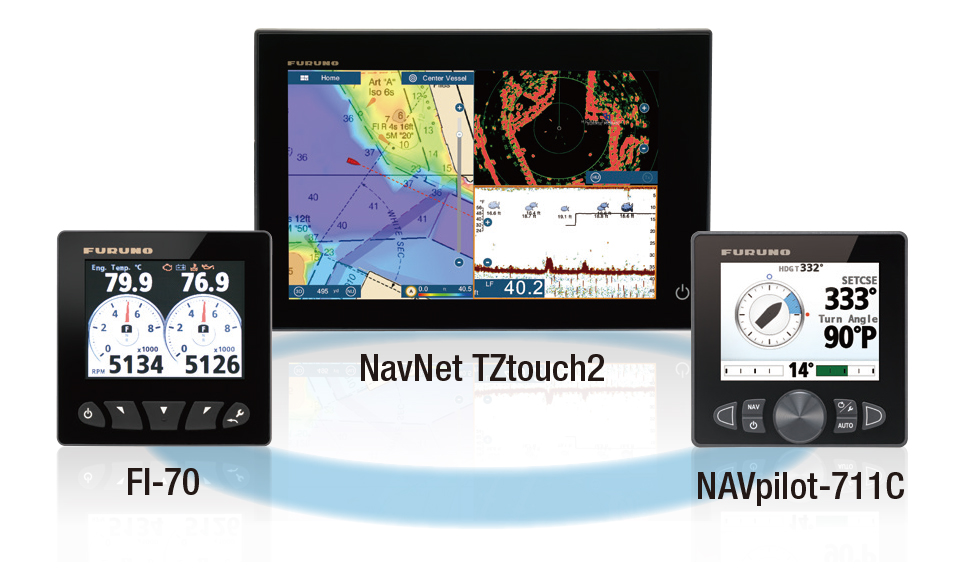

  • Designed to perfectly match the NavNet TZtouch2 and NAVpilot 711C on your helm station

  • With the new Analog - NMEA2000 converter, IF-NMEAFI, you can still use your older analog sensors

  • Low power consumption (0.25 A max)

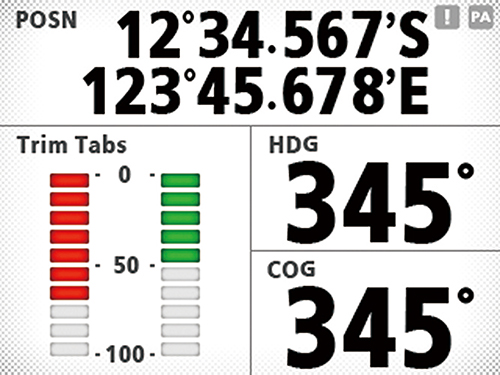

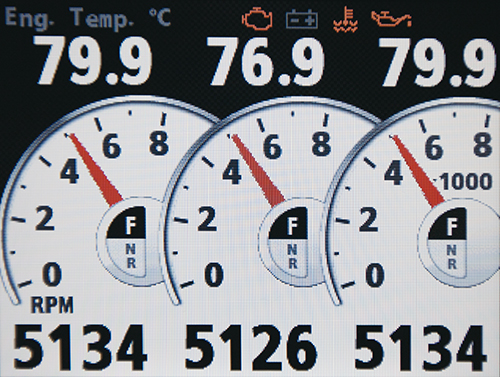

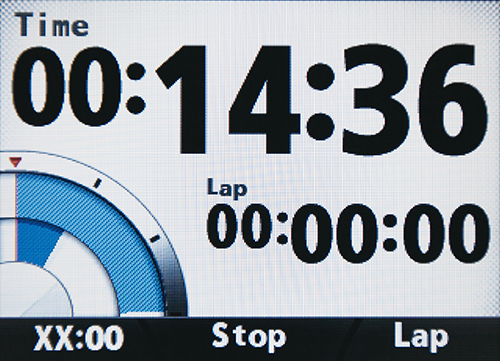

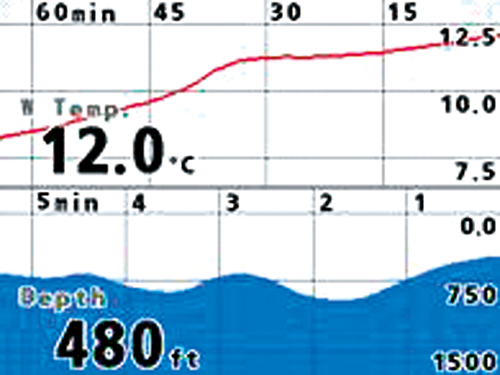

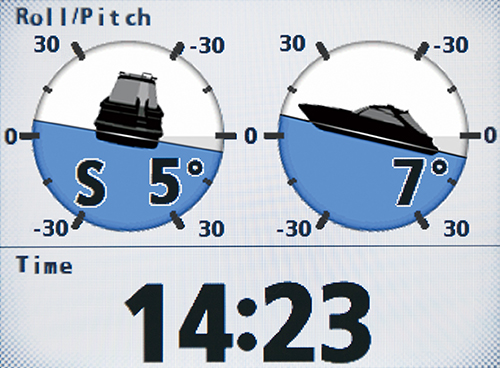

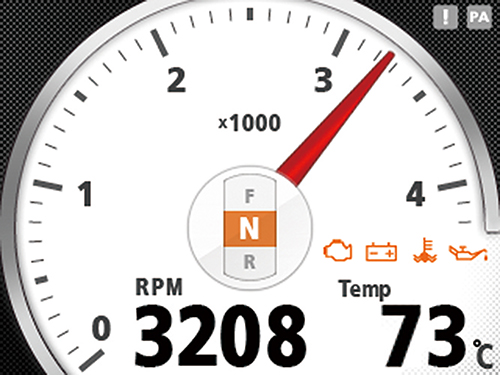

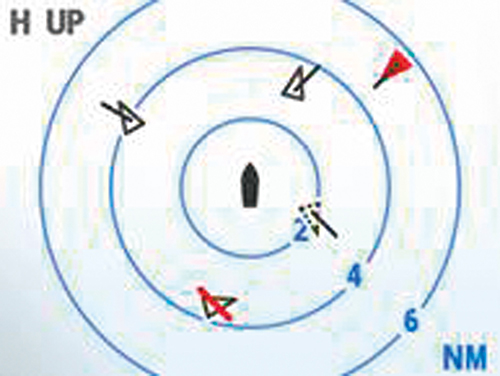

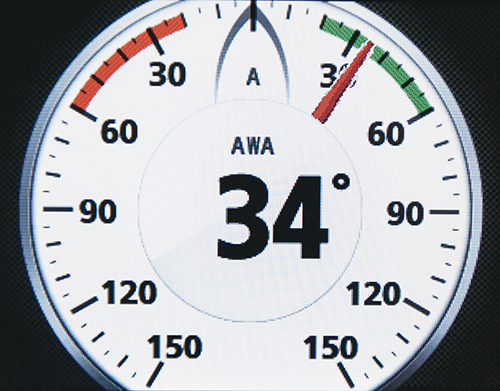

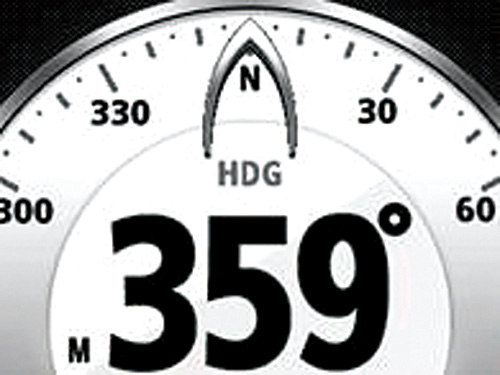

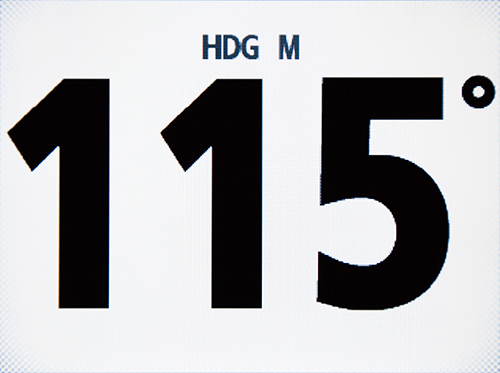

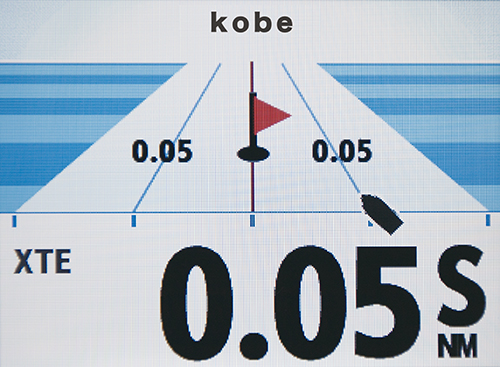

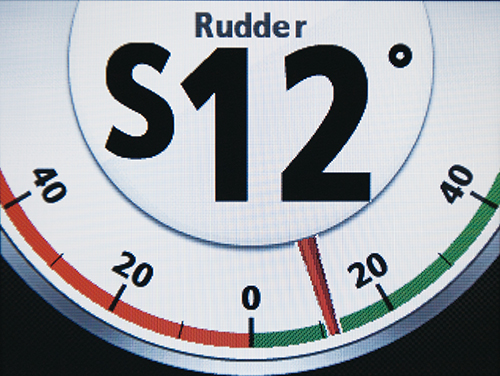

Screenshots

Specifications

GENERAL

Port
CAN bus (NMEA2000) x1
Display Unit
4.1" Color LCD (QVGA 320x240 pixels)
Temperature
-15°C to +55°C
Waterproofing
IP56
Power Supply
15 VDC through CAN bus (15 VDC 0.25 A max, LEN3)
Weight
0.29 kg
Size
115 (H) x 115 (W) x 32 (D)

Equipment List

Standard

  • 【SINGLE UNIT COMPRISING】
    -DISPLAY UNIT FI-70
    -6 M CABLE     1 SET
  • STANDARD SPARE PARTS AND INSTALLATION MATERIALS

Option

  • JUNCTION BOX FI-5002
  • DEPTH/SPEED/TEMP SENSOR DST-800
  • WIND TRANSDUCER FI-5001/FI-5001L
  • ANALOG NMEA DATA CONVERTER IF-NMEAFI
  • CABLE ASSY M12-05BM+05BF 1 M
    2 M
    6 M
  • CABLE ASSY CB-05PM+05BF 1 M
    2 M
    6 M
  • FLUSH MOUNT KIT

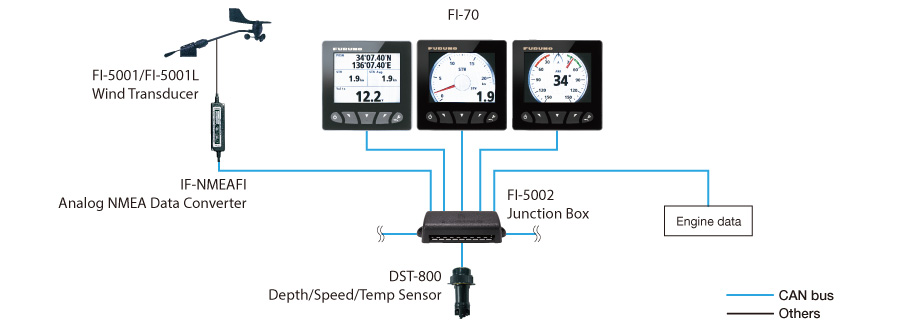

Interconnection Diagram

Interconnection Diagram

Documentation

  • FI-70 Brochure
    (Last update: Mar 23, 2023)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
