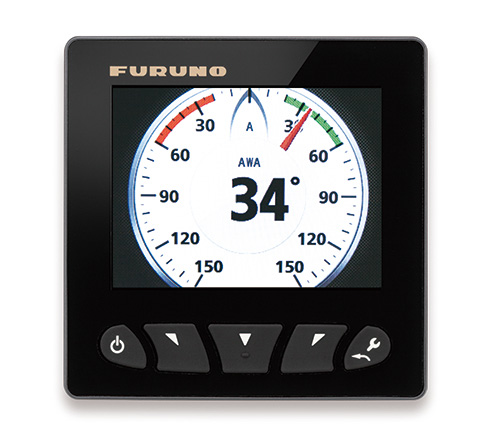

- Instruments/Data Organizer
Model FI-70
The FI-70 INSTRUMENT/DATA ORGANIZER sports a vibrant 4.1" bonded color display that is visible even in the harshest sunlight conditions. Utilizing the CAN bus network, external sensors can easily be connected for simple and reliable operation. The FI-70 features an easy to operate graphical user-interface. It allows you to customize almost every display property, allowing you to choose the information you want to be displayed, in the way you want to see it!
- Fishing Vessels、Recreational Boats
Features
Beautiful 4.1" QVGA screen that is sunlight viewable
Simple and intuitive interface with full customizability

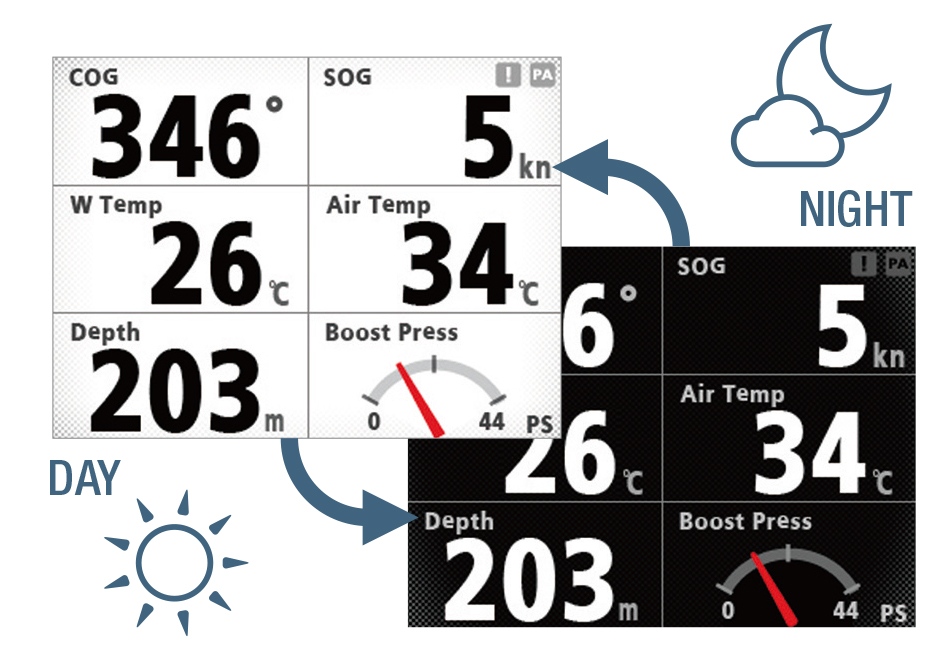

Day & Night mode for improved visibility

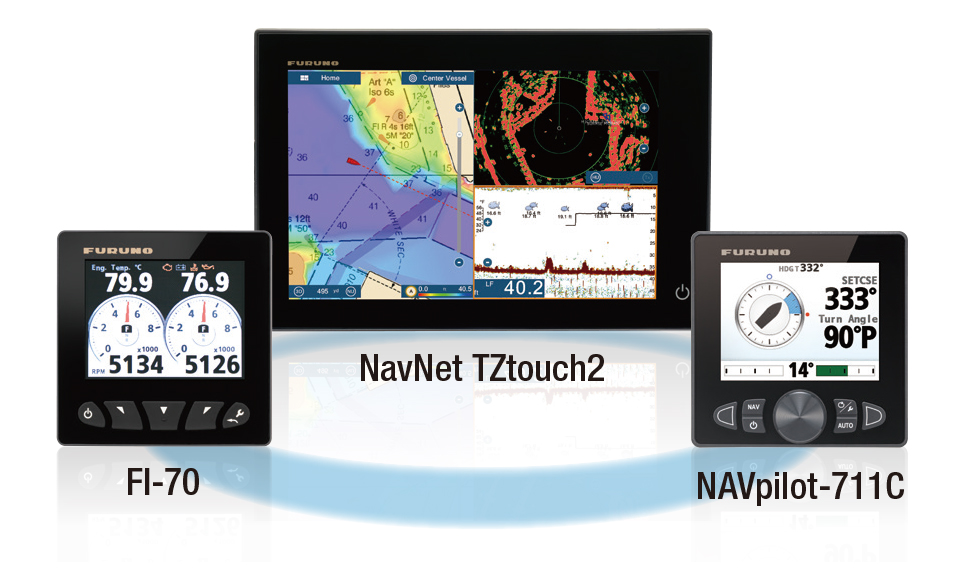

Designed to perfectly match the NavNet TZtouch2 and NAVpilot 711C on your helm station
With the new Analog - NMEA2000 converter, IF-NMEAFI, you can still use your older analog sensors
Low power consumption (0.25 A max)
Screenshots
Data Box (Single)

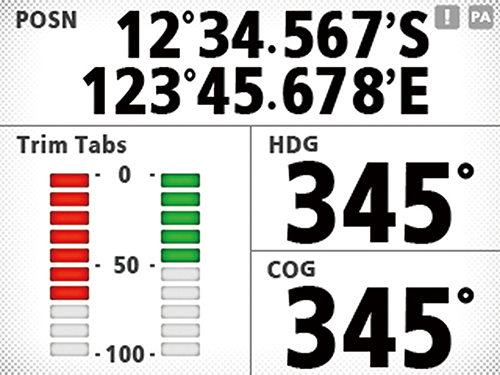

Data Box (Split)

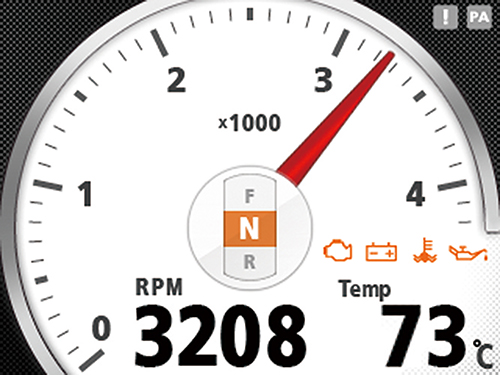

Engine RPM (Single)

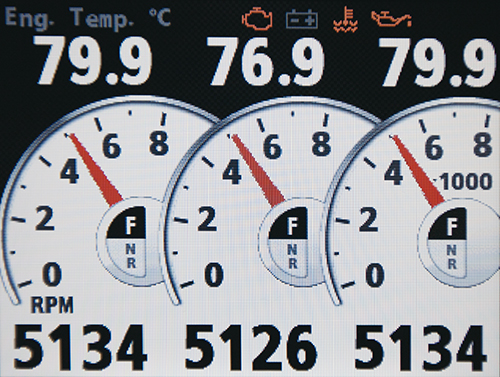

Engine RPM (Triple)

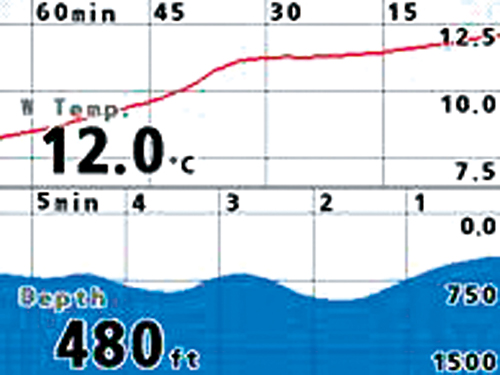

Graph

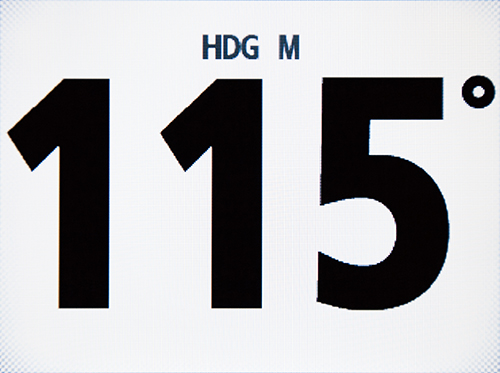

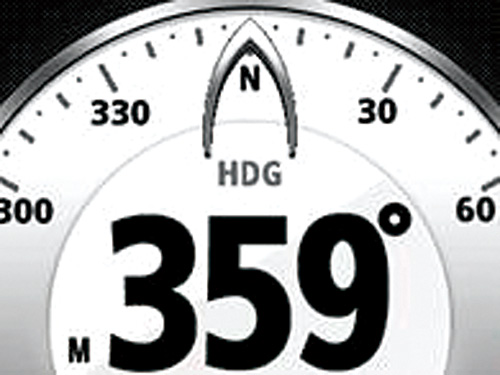

Heading

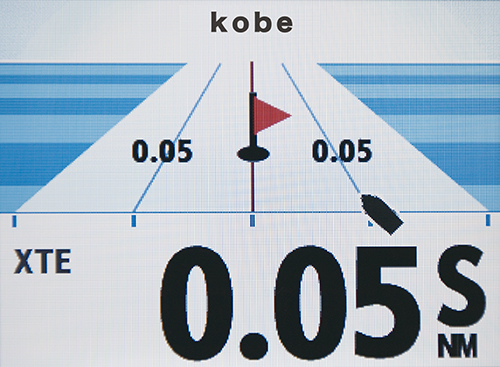

Highway

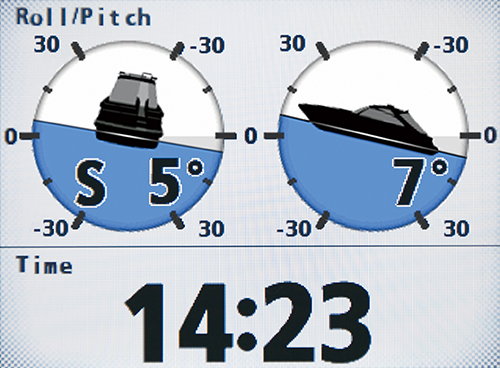

Roll & Pitch

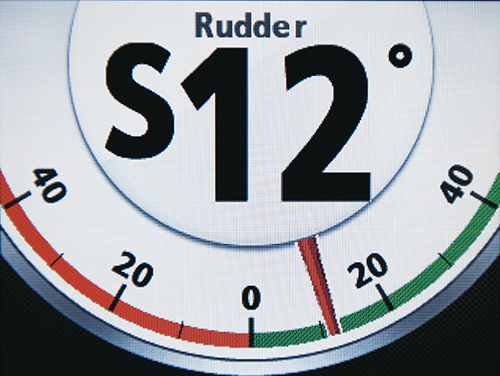

Rudder

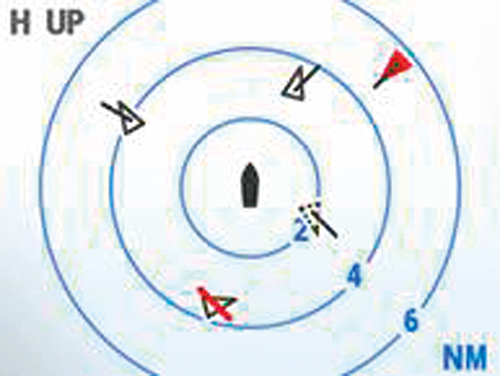

AIS

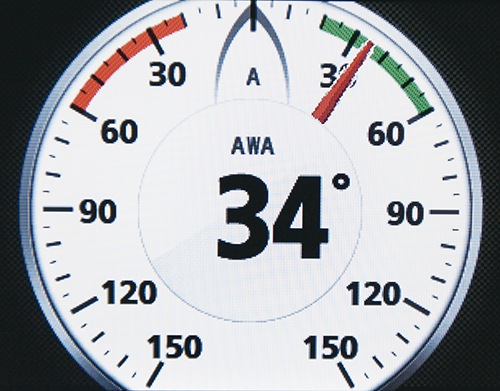

Wind

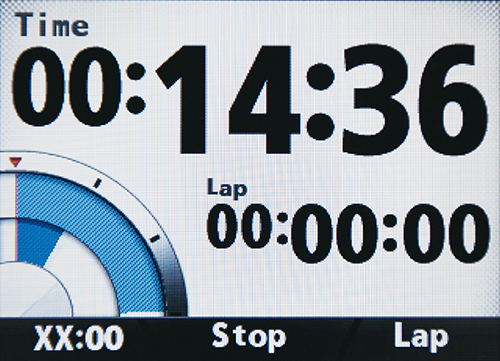

Timer
Specifications
General
CAN bus (NMEA2000) x 1
4.1" Color LCD (QVGA 320 x 240 pixels)
-15°C to +55°C
IP56
15 VDC through CAN bus (15 VDC 0.25 A max, LEN3)
0.29 kg
115 (H) x 115 (W) x 32 (D)
Equipment List
Standard
-DISPLAY UNIT FI-70
-6 M CABLE
1 SET
Option
FI-5002
DST-800
FI-5001/FI-5001L
IF-NMEAFI
1 M
2 M
6 M
1 M
2 M
6 M

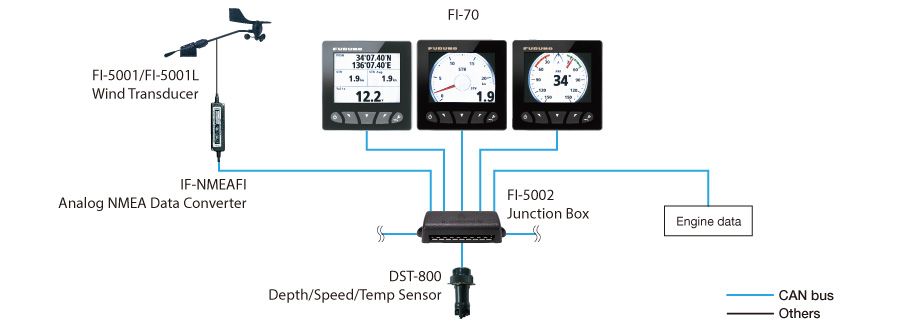

Interconnection Diagram
Interconnection Diagram
Downloads
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
