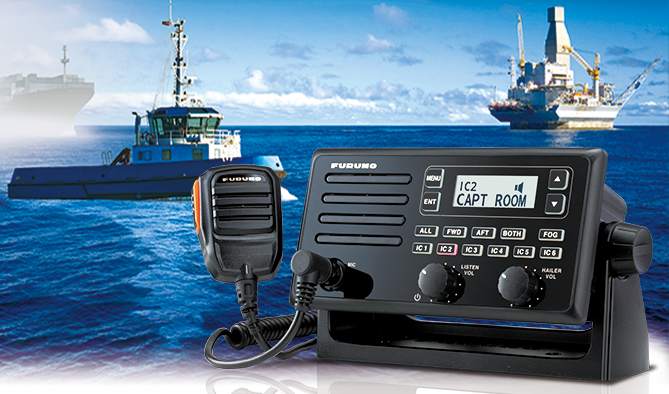

LOUD HAILER Model LH-5000

Your safety requires perfect communication and coordination

Recreational Boats Fishing Vessels Workboats

Features

  • Full-featured, high performance and intuitive use !

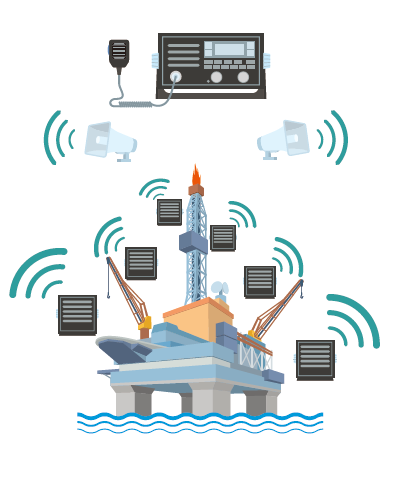

  • 8 Channel PA systems

    PA system with 2 hailers and 6 intercoms, providing a total of 8 channels. You can now coordinate any action even on a big ship or facility.

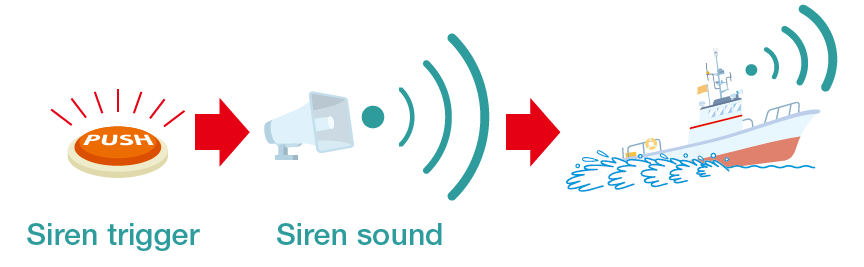

  • Siren Mode

    With the Siren Mode, you only have to turn on a switch to automatically emit a warning signal. You can hail and communicate with intercoms as well.
  • Automatic fog horn/warning signal

    The lack of visibility due to the fog can represent a very dangerous situation at sea.
    With 8 warning signals, including fog horn, vessels around will be notified of your presence and it will prevent own ship from collisions.

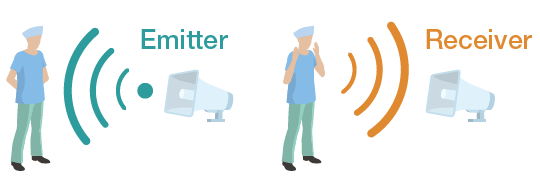

  • Listen Back

    With the Listen Back feature, the horn speaker works as microphone and allows two-way communication.

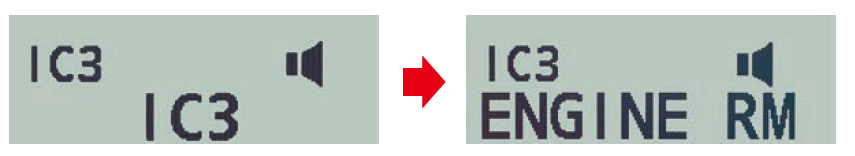

  • Rename Intercoms

    Each intercom's channel can be renamed. This allows you to customize the channel's name so you know who your are talking to.

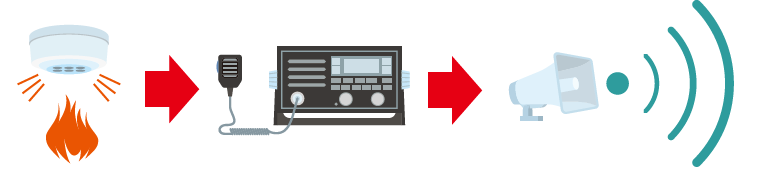

  • Alarm Functions

    An alarm sensor turns the LH-5000 into a general alarm system. It can also be used as a burglar alarm.

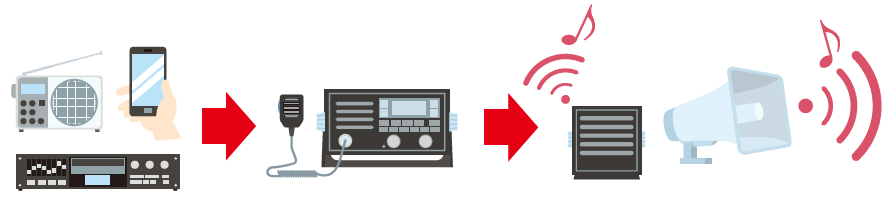

  • Enjoy Music!

    By connecting external devices such as a radio or a smartphone, you can switch on AUX function and share your favorite music through intercoms and horn speakers!

Specifications

AUDIO OUTPUT

Hailer
30 W, 8 Ω (at 1kHz, 10%)
Intercom Speaker
5.0 W, 8 Ω (at 1kHz, 10%)
Internal Speaker
2.5 W, 8 Ω (at 1kHz, 10%
External Speaker
5.0 W, 8 Ω

INPUT IMPEDANCE

Microphone
600 Ω
Auxiliary Input
5 kΩ

POWER SUPPLY

Full Load
12 VDC, 11 A
Standard
12 VDC, 5 A
Standby
12 VDC, 280 mA

ENVIRONMENT

Temperature
-15°C to +55°C (IEC 60945)
Waterproofing
IP67 (IEC60529)

Equipment List

Standard

  • Loud Hailer x1
  • Microphone x1
  • Installation Materials and Spare parts

Option

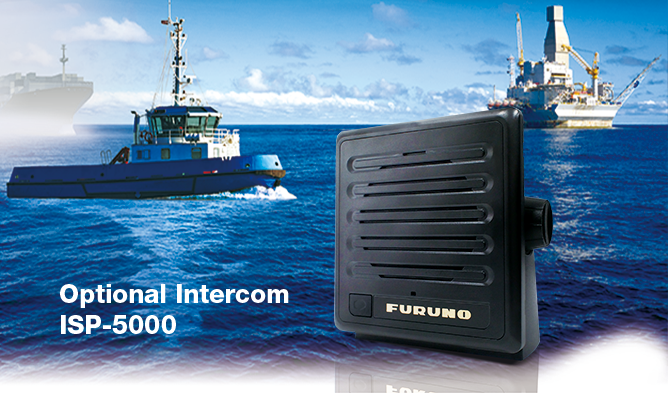

  • Intercom Speaker ISP-5000
  • Extension Cable for Microphone 5 m
  • Local Supply: Horn Speaker
  • Local Supply: External Speaker (if required)

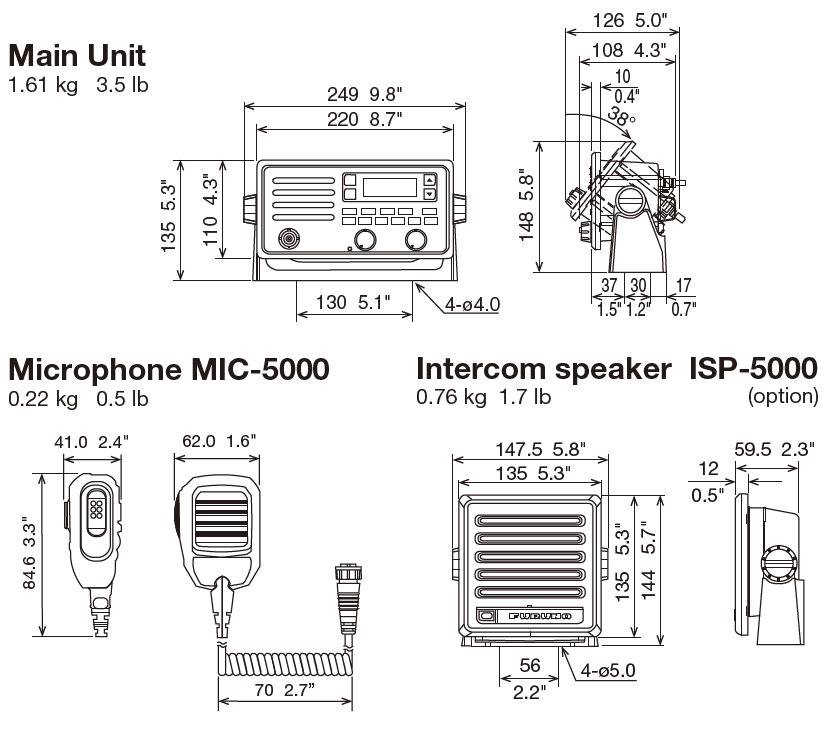

Drawing

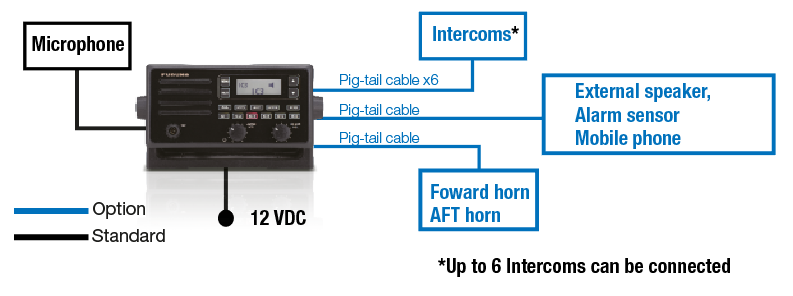

Interconnection Diagram

Documentation

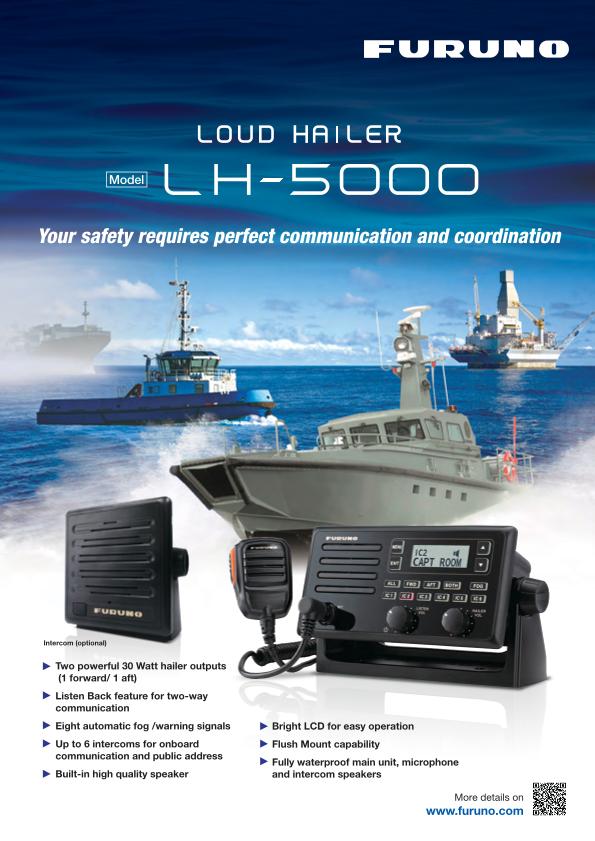

  • LH-5000 Brochure
    (Last update: Mar 23, 2023)

* Specifications subject to change without notice.
