GPS/WAAS CHART PLOTTER with built-in CHIRP FISH FINDER Model GP-1971F NEW

9" GPS Chart Plotter/Fish Finder with Tablet Control/Mirroring function Available.

New Software Version 4.0

Recreational Boats
Multi Touch TruEcho CHIRP technology Bottom Discrimination ACCU-FISH™ RezBoost™ Auto Tuning (Sensitivity) CAN bus

Features


  • FURUNO 2019 "Your adventure begins!"

  • The Ultimate Combo Units

  • Wireless Connection to Smartphone and tablet

    View your GP-1871F/1971F screen on your tablet or smartphone.
    At any time, you can watch the sea conditions or use the GP-1871F/1971F's functions remotely from another location on the boat.
    This function can only be used once the GP software has been updated
    Download the latest GP-1x71F software here

    *The GP unit software version must be 3.0.4R or higher and a mirroring application is required.


    Download the Mirroring application (freeware)



    *Regarding the connection and the utilization of the application, please refer to the Operating Manual.
    *You can use either the tethering or your preferred local network.
    *The maximum number of connections is 1 per GP unit.
    *The connection with the DRS4W and a smartphone cannot be made simultaneously
    *The maximum distance of remote use is 5 meters. This distance can be reduced if objects are obstructing.
    *Android OS version 9.0 and later is recommended for use of the app on Android devices
    *Apple, Apple Logo, are trademarks of Apple Inc., registered in the U.S. and other countries
    *App Store is a service mark of Apple Inc.
    *Android and Google Play logo are trademarks, registered trademarks or service marks of their respective holders.

  • Multi-Touch Interface

    ◆Convenient and intuitive slide-out menus
    The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2,
    features slide-out menus containing all the tools and data you need to be in total control.

    Quick page


    DATA BOX


    Slide-out Menu

    Layers


    ◆Display modes customization
    Customize your display modes and create the perfect
    combination to fit your individual needs.

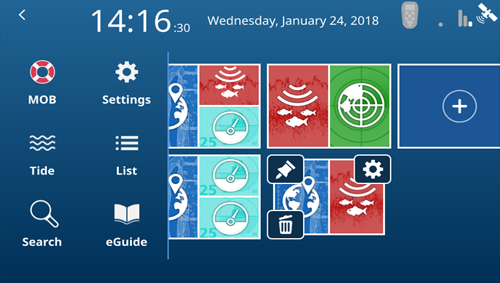

    Customization menu


    Main Menu and Display mode setting

    ◆Finger Gestures
    With the Finger Gestures (one or two fingers) you can either zoom-in, zoom-out, double tap to take a screenshot or even jump to a full-screen mode when using Split-screen display mode.


    ◆Easy screenshot and MicroSD card
    Tap the display with two fingers to capture a screenshot
    that will be saved directly to your micro SD card.

  • Built-in CHIRP FISH FINDER

    ◆ Unmatched detail with TruEcho CHIRP™
    The high level of detail available with TruEcho CHIRP™ technology helps to distinguish fish schools, even when close to the sea bed.

    Fish can be observed with a very high resolution and are displayed in a distinct boomerang shape. The clear presentation marks individual game fish and bait fish, even when tightly schooled together.







    ◆ ACCU-FISH™ and Bottom Discrimination with RezBoost™
    With FURUNO’s RezBoost™ data processing technology, fish schools and echoes are shown with high resolution while you can assess fish size and bottom composition thanks to ACCU-FISH™ and Bottom Discrimination functions.

    Additionnaly, ACCU-FISH™ icons and colors can be freely customized according to the size and depth of the targeted fish.

  • Chart Plotter (with internal GPS antenna)

    ◆ Detailed Charts, Navionics and C-MAP 4D compatibility
    By using the incredibly rich C-MAP 4D and Navionics charts, the GP-1871F/1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.

    Compatibility with Navionics  New
    The GP-1871F/1971F v4.0 is now compatible with Navionics+ and Platinum+ charts and offers various new features such as:
    -Nautical Chart
    -SonarChart™
    -Community Edits
    -Dock-to-dock Autorouting
    -SonarChart™ Live
    -Advanced Map Options
    -Plotter Sync

    More information on the Navionics Website *This link leads to an external website: Navionics
    FURUNO GP-1871F and GP-1971F Are Now Compatible with Navionics Charts

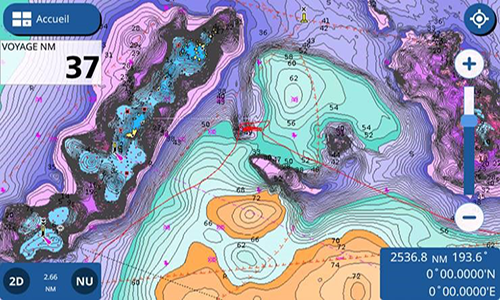

    Navionics Chart data

    Compatibility with C-MAP

    C-MAP Chart data

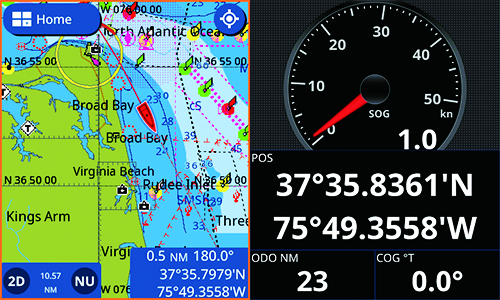

    Chart Plotter with instruments panels

    ◆ Autopilot controls
    Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chart Plotter.

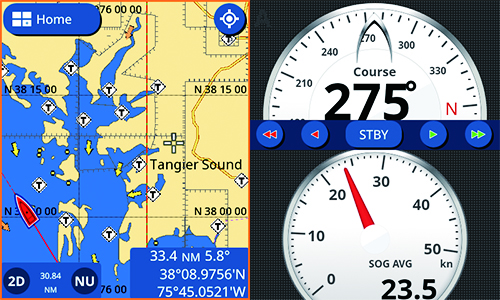

    Chart Plotter with NAVpilot controls

    ◆ Plotter with AIS symbols
    When connected to an AIS receiver, the GP-1871F/1971F will display the latest AIS data and provide vessel information.

    ◆ Various display modes
    ​Including Shaded reliefs, 3D and Satellite views.

  • Wireless Radar Connection

    ◆ DRS4W 1st Watch Wireless Radar
    The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar
    (Output Power 4 kW) giving your Chart Plotter a major upgrade in accuracy and safety.


    Plotter Overlay mode


    Radar mode


  • Easy screenshot and MicroSD card

    Tap the display with two fingers to capture a screenshot
    that will be saved directly to your microSD card.

  • AF (Anti-finger print) treatment on AR glass (GP-1971F)

  • AR (Anti-Reflective) glass coating and strengthened glass filter

  • Internal GPS antenna for simple and easy installation

  • Daylight viewable with excellent readability , brightness of 1000 cd/m2

Screenshots

Specifications

Display Unit

Screen Type
GP-1971F: 9" Wide Color TFT LCD
Screen Resolution
WVGA 800 x 480 pixels
HD 1280 x 720 pixels * For production in 2022 and later
GPS Antenna
Internal Antenna
Display Modes
-Chart Plotter
-Fish Finder
-Radar (connection to the 1st Watch Wireless Radar DRS4W required)
-AIS (connection to AIS sensor required)
-Instruments (Nav Data, Engine, Wind, Fuel tank) -
-Autopilot (connection to the FURUNO NAVpilot-300 or 700 series required)
Language
English (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese.

GPS / SBAS (WAAS/EGNOS/MSAS)

Receiving Type
GPS 72 channels
WAAS 1 channel
Receiving Frequency
L1 (1575.42 MHz)
Accuracy
GPS: 10 m max, WAAS: 5 m max, MSAS: 7.5 m MAX

PLOTTER

Chart
32 GB max., C-MAP 4D chart or Navionics chart
Memory Capacity
30,000 points for ship's track and waypoints
1,000 planned routes (Max. 250 points per route)
5,000 quickpoints

FISH FINDER

Frequency
CHIRP: 40 to 225 kHz
CW: 50/200 kHz
Transducer
300 W or 600 W or 1kW (Transducer dependent)
Range
5-1, 200m, shift :0-500m
Modes
TruEcho CHIRP™*, RezBoost™**, ACCU-FISH™**, Bottom Discrimination**, Dual Frequency**, Dual Range** Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock
* CHIRP dedicated transducer required
** Dual frequency CW compatible transducer required

Interface

NMEA2000
1 port (Interface CAN bus)
Input: 126992, 127245, 127250, 127251, 127258, 127488, 127489, 127493, 127497, 127505, 128259, 128267, 128275, 129025, 129026, 129029, 129038, 129039, 129040, 129041, 129284, 129285, 129538, 129540, 129793, 129794, 129798, 129808, 129809, 129810, 130306, 130310, 130311, 130312, 130313, 130314, 130316, 130577, 130578, 130830, 130831, 130832, 130880
Output:126992, 127245, 127250, 127251, 127257, 127258, 127505, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129283, 129284, 129285, 130306, 130310, 130312, 130316, 130830, 130831, 130832
NMEA0183
1 port
Input: DBT, DPT, DSC, DSE, GGA, GLL, GNS, HDG, HDT, MTW, MWV, RMC, ROT, RSA, THS, TLL, VBW, VDM, VHW, VTG, ZDA, PFEC (GPatt/SDmrk/SDtbd/SDtfl/pireq)
Output: AAM, APB, BOD, BWR, DBT, DPT, GGA, GLL, GNS, GSA, GSV, GTD, HDG, HDT, MTW, MWV, RMB, RMC, RTE, THS, TLL, VHW, VTG, WPL, XTE, ZDA, PFEC (SDmrk/SDtbd/SDtfl/pidat)
Other
Micro SD Card Slot x2 (32 GB)

OTHERS

Waterproofing
IP56
Power Supply
12-24 VDC, 1.0-0.5 A
12-24 VDC, 1.1-0.6 A * For production in 2022 and later
NMEA2000: 1 port
NMEA0183: 1 port * Software version 1.1 or later

Equipment List

Standard

  • GP-1971F 9"

Option

  • Transducer
    525T-PWD
    525T-BSD
    526TID-HDD
    SS60-SLTD/12
    SS60-SLTD/20
    525T-LTD/20
    525T-LTD/12
    520-PLD
    50B-6 *10M*
    50B-6B *15M*
    200B-5S *10M*
    50/200-1T *10M*
    520-5PSD
    520-5MSD
    525-5PWD
    525STID-MSD
    525STID-PWD
  • Single Freq. CHIRP transducer B75L, 300W
    B75M, 600W
    B75H, 600W
    SS75L, 300W
    SS75M, 600W
    SS75H, 600W
    B785M, 600W (V3.0 and later)
    TM150M, 300W
    B150M, 300W
    TM165HW, 600W (V4.0 and later)
    B175L, 1kW
    B175M, 1kW
    B175H, 1kW
    B175HW, 1kW
    TM185M, 1kW (V3.0 and later)
    TM185HW, 1kW (V3.0 and later)
    B285M, 1kW (V3.0 and later)
    B285HW, 1kW (V3.0 and later)
  • Temperature Sensor T-04MSB
    T-04MTB
  • NMEA2000 Interface Unit IF-NMEA2K2
  • Matching Box MB-1100
  • Junction Box FI-5002

Drawing

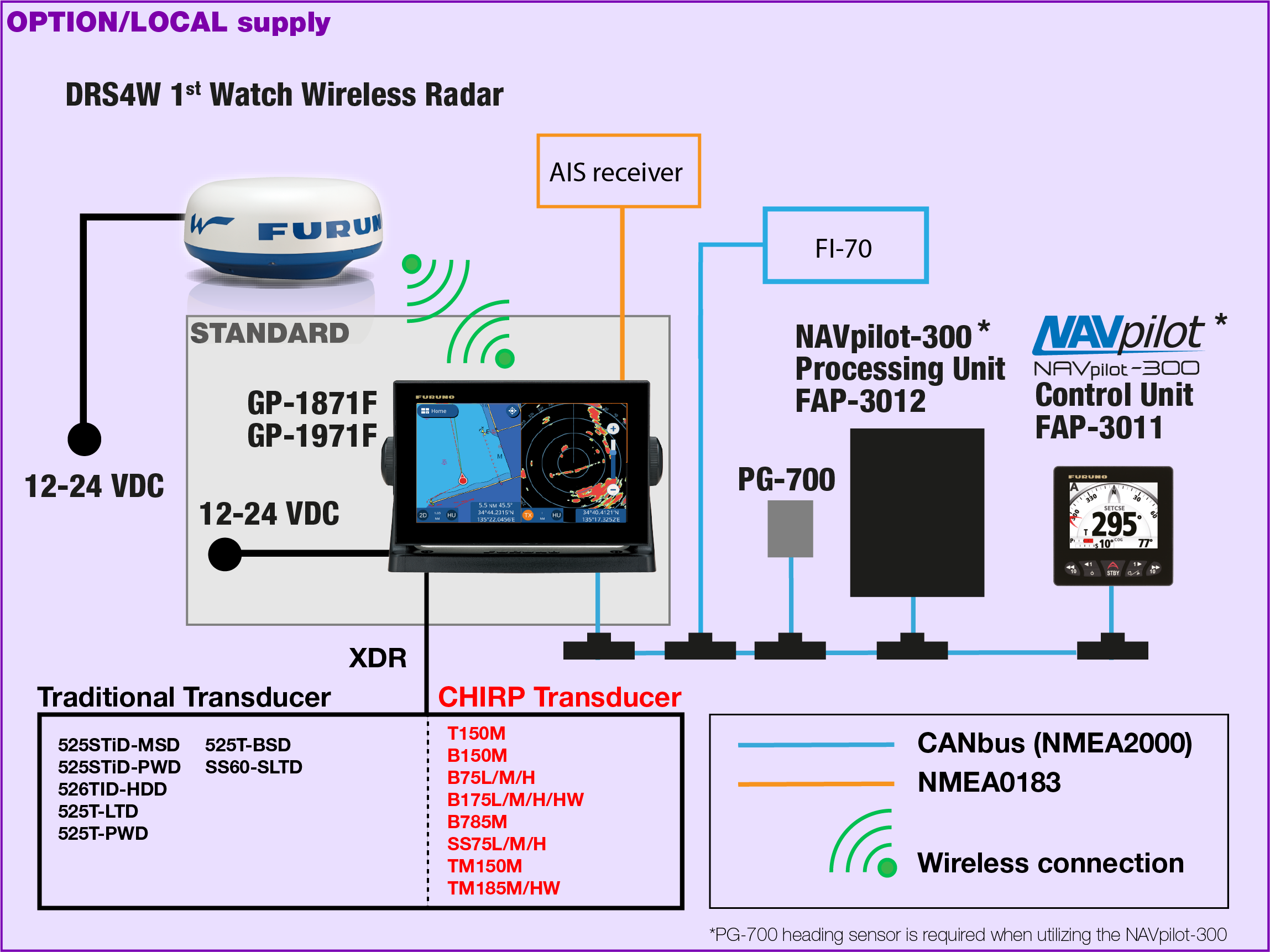

Interconnection Diagram

Interconnection diagram

Documentation

  • GP-1971F Brochure
    (Last update: Mar 28, 2023)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
