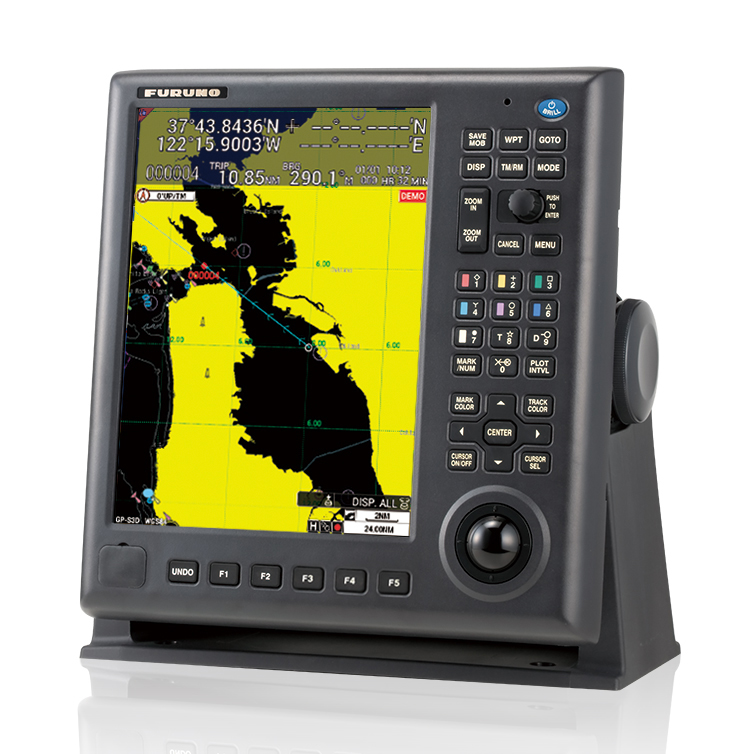

- GPS/Chart Plotter
Model GP-3700
The GP-3700 is the new high performance color GPS/WAAS Chart Plotter. The GP-3700 incorporates easy-to-use interface from the GP-3500, while adding new enhancements and features. With a variety of innovative functions, short-cut control keys and a 12.1-inch IPS screen that provides clear visibility, the GP-3700 lets you immediately grasp a situation surrounding your vessel. Large storage capacity for track points, buoy points and marks/lines makes it a perfect solution for long term ship operations.
- Fishing Vessels、Workboats、Recreational Boats
Features
User customizable keys
User customizable keys allow you to create short-cuts to menus. Customize menus before you leave the dock for faster, effortless and more intuitive operation.
12.1 inch large display
The larger IPS LCD screen, which features a distinctively clear and wider viewing angle, gives you excellent readability.
Huge storage capacity
The GP-3700 series is capable of storing up to: 30,000 own ship track points, 10,000 TT/AIS/consort/GPS buoy points, 30,000 mark/lines, and can record way points and routes.
A variety of display modes
The GP-3700 series provides and displays navigation data in a wide variety of modes. All the display modes can be switched by tapping “DISP” key.
UNDO/REDO functions
The "UNDO" key lets you go back one operational step of deleting and drafting your marks and lines with a single press of a key. While the "UNDO" key works as going back your operation, the "REDO" function recovers your last operation.
Easy-access USB port
USB flash drive (local supply) can be connected to the front panel. Stored data can be used for retrofit, review for the service, and record of your navigation marks.

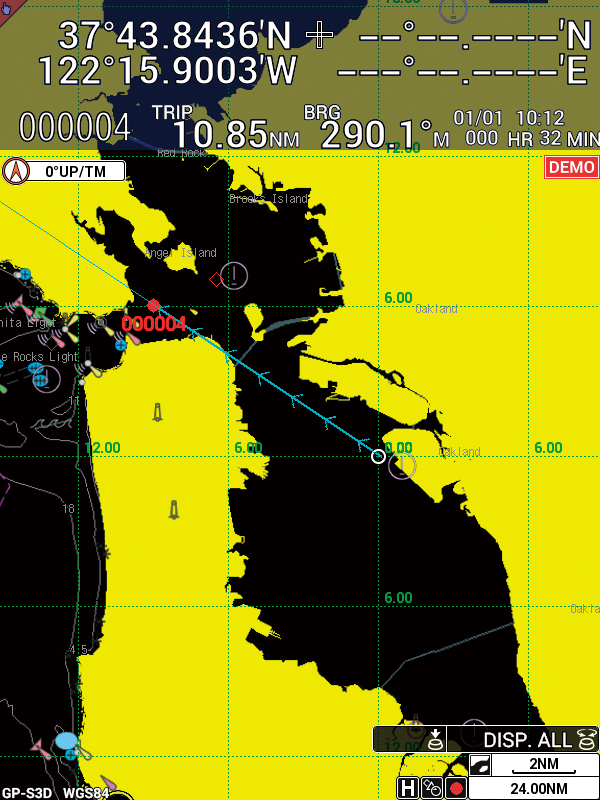

Screenshots

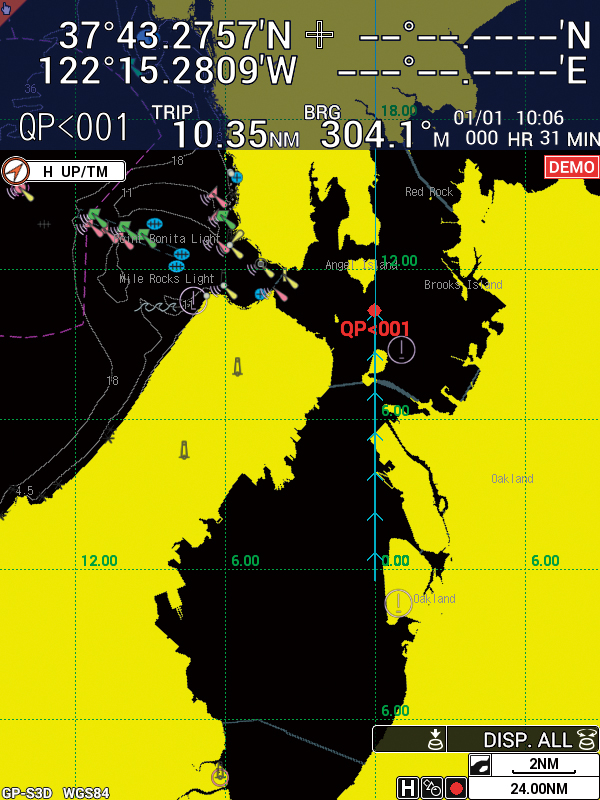

Head Up mode
Speci
Specifications
Display Unit
12.1-inch IPS Color LCD
600 (H) x 800 (V), SVGA
Plotter, Compass, Satellite information
GPS / SBAS (WAAS/EGNOS/MSAS)
1575.42 MHz
GPS: 12 channels, 12 satellites, parallel tracking
SBAS: 2 channels
GPS: not exceeding 10 m, (2drms, HDOP≦4)
DGPS: not exceeding 5 m, (2drms) optional kit required
SBAS: not exceeding 7 m, (2drms)
Plotter
MapMedia Vector Chart
990,000 points (recording memory 1 block + storage 10 block)
Others
Antenna unit: IP56
Display unit: IP22
12-24 VDC, 2.5-1.3 A
351 (H) x 339 (W) x 179 (D)
4.6 kg
Equipment List
Standard
1 Unit
1 Unit
1 pc
1 set
Option
RCU-030
OP14-80
OP14-83
TL-CAT-L12
CP20-01111
MJ-MJ-A3SPF0013-035C (5A)
RU-3423

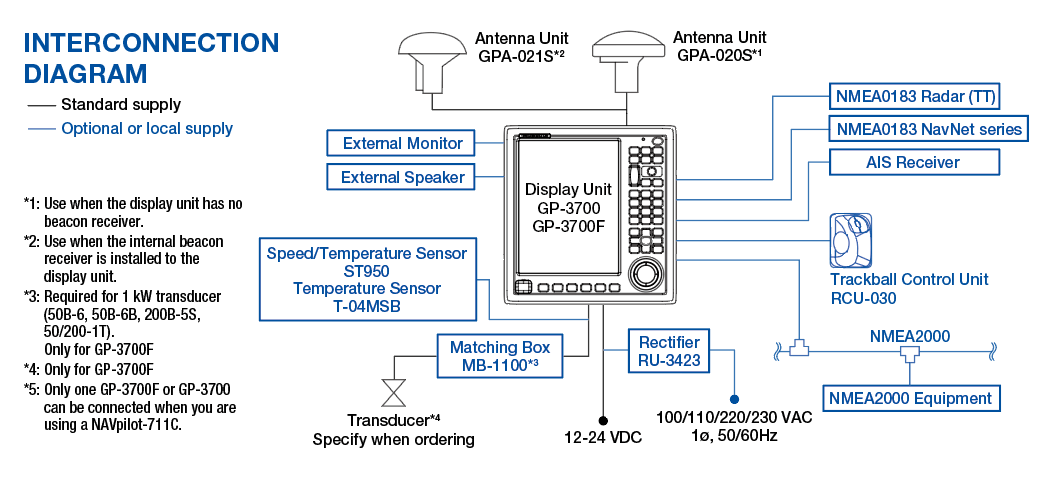

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Jan 7, 2026 | |
| Apr 12, 2024 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
