- GPS/Chart Plotter

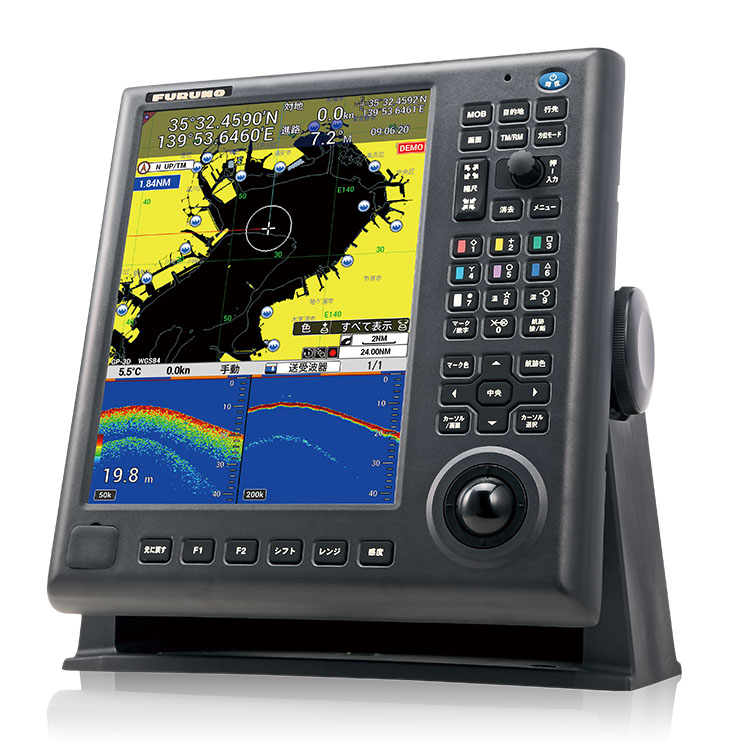

Model GP-3700F
The GP-3700F is the new high performance color GPS/WAAS Chart Plotter/ Fish Finder combination unit. The GP-3700F incorporates easy-to-use interface from the GP-3500, while adding new enhancements and features. With a variety of innovative functions, short-cut control keys and a 12.1-inch IPS screen that provides clear visibility, the GP-3700F lets you immediately grasp a situation surrounding your vessel. Large storage capacity for track points, buoy points and marks/lines makes it a perfect solution for long term fishing operations.
- Fishing Vessels、Workboats、Recreational Boats
Features
User customizable keys
User customizable keys are designed to create short-cuts to menus. Customize menus before you leave the dock for faster, effortless and more intuitive operation on the sea.
12.1 inch large display
The larger IPS LCD screen, which features a distinctively clear and wider viewing angle, gives you excellent readability in changing sea conditions.
Huge storage capacity
The GP-3700 series is capable of storing up to: 30,000 own ship track points, 10,000 TT/AIS/consort/GPS buoy points, 30,000 mark/lines, and can record way points and routes.
A variety of display modes
The GP-3700 series provides and displays navigation data in a wide variety of modes. All the display modes can be switched by tapping “DISP” key according to your favor.
UNDO/REDO functions
The "UNDO" key lets you go back one operational step of deleting and drafting your marks and lines with a single press of a key. While the "UNDO" key works as going back your operation, the "REDO" function recovers your last operation.
Easy-access USB port
USB flash drive (local supply) can be connected to the front panel. Stored data can be used for retrofit, review for the service, and record of your navigation marks.
ACCU-FISH - A unique fish size analyzer based on the latest digital technology
Bottom Discrimination - Analyze bottom structure
Provides an at-a glance recognition of bottom composition with four types of graphical displays (Rocks/Sand/Gravel/Mud) when connected to a supported thru-hull or transom mount transducer.
Screenshots

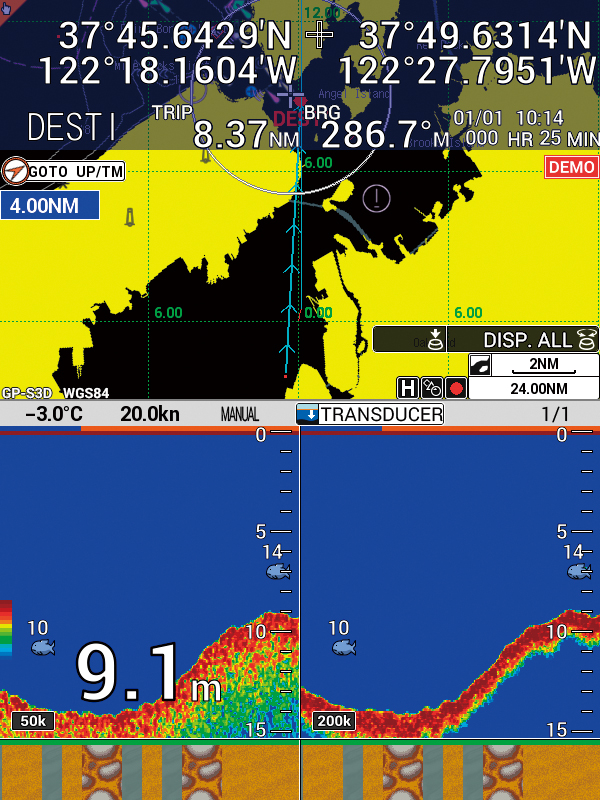

Plotter and dual frequency

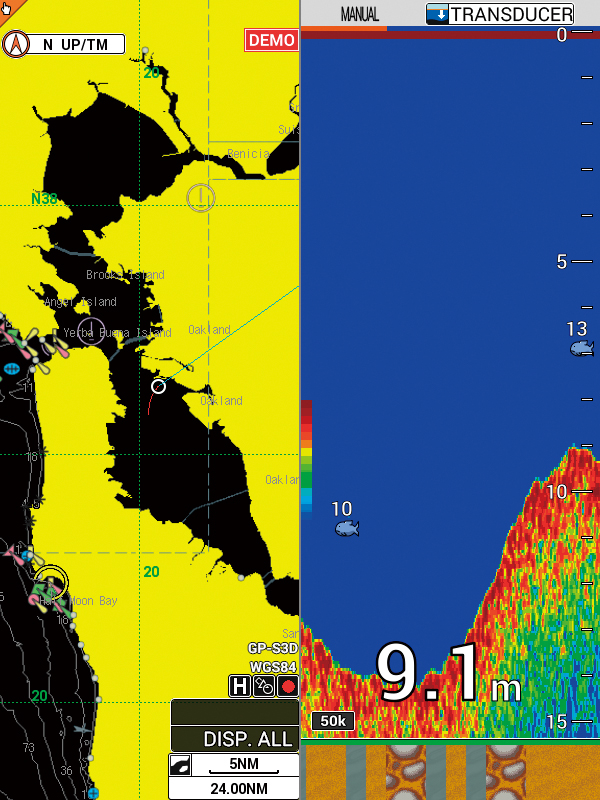

Plotter and low frequency

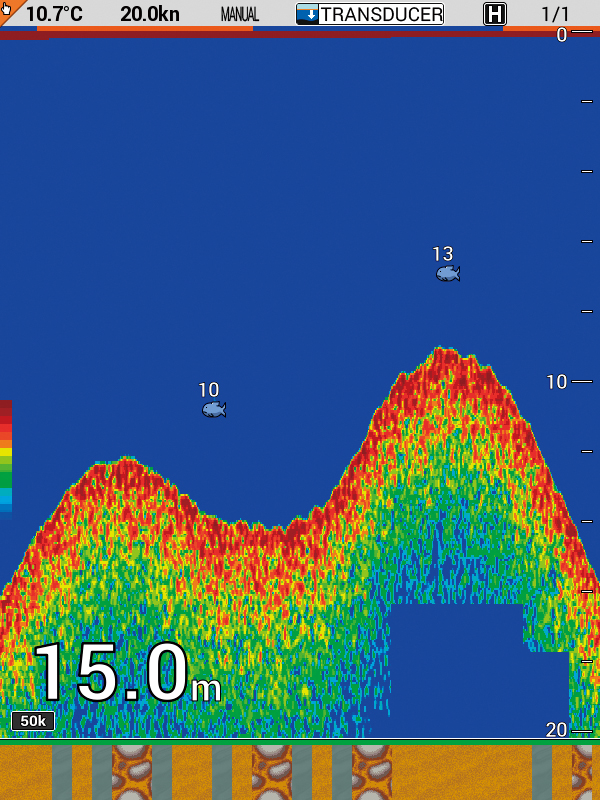

Single frequency

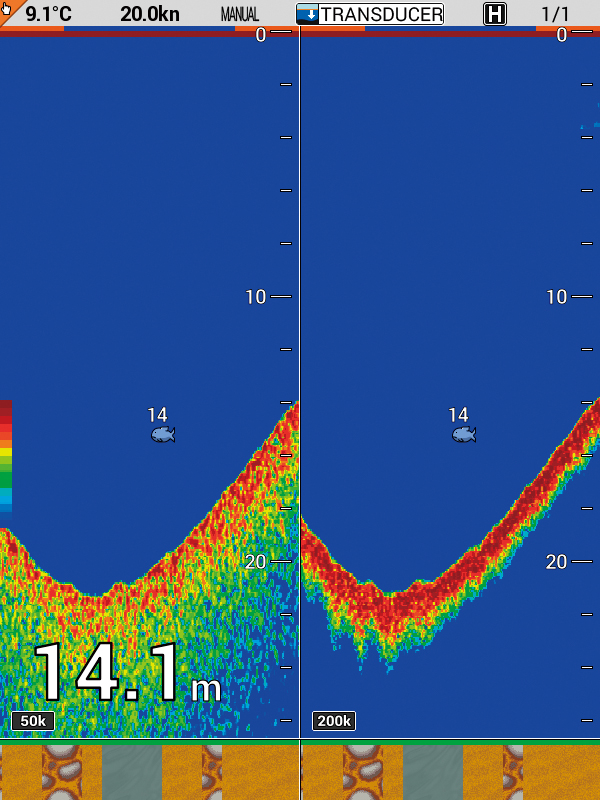

Dual frequency

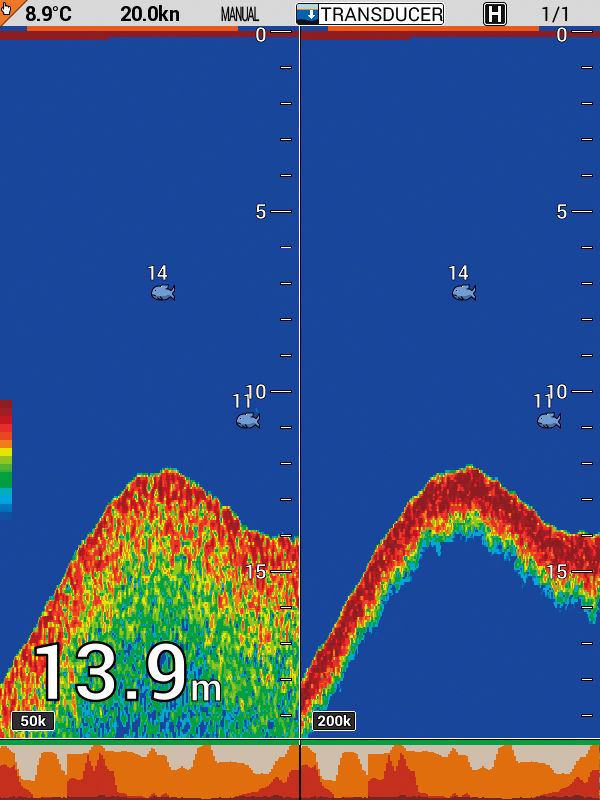

ACCU-FISH shows size of fish on the screen to find your target easily.

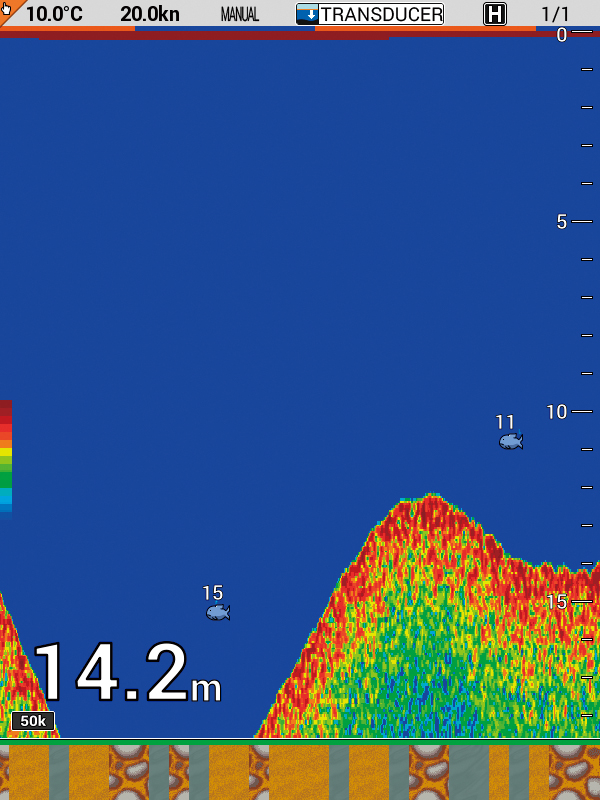

Bottom Discrimination mode will be your help to decide fishing spot.
Specifications
Display Unit
12.1-inch IPS Color LCD
600 (H) x 800 (V), SVGA
Plotter, Compass, Satellite information
GPS / SBAS (WAAS/EGNOS/MSAS)
1575.42 MHz
GPS: 12 channels, 12 satellites, parallel tracking
SBAS: 2 channels
GPS: not exceeding 10 m, (2drms, HDOP≦4)
DGPS: not exceeding 5 m, (2drms) optional kit required
SBAS: not exceeding 7 m, (2drms)
Plotter
MapMedia Vector Chart
990,000 points (recording memory 1 block + storage 10 block)
Fish Finder
50/200 kHz
600 W or 1 kW
Range: 5～500 m 、Shift: 0～1,200 m
Others
Antenna unit: IP56
Display unit: IP22
12-24 VDC, 2.5-1.3 A
351 (H) x 339 (W) x 179 (D)
4.8 kg
Equipment List
Standard
1 Unit
1 Unit
1 pc
1 set
Option
RCU-030
OP14-80
OP14-83
TL-CAT-L12
600 W
520-5PSD (Plastic thru-hull), 520-5MSD (Bronze thru-hull), 520-5PWD (Plastic transom)
525ST-MSD (Bronze thru-hull w/speed/temp sensor), 525ST-PWD (Plastic transom speed/temp sensor)
520-PLD, 525T-BSD, 525T-PWD, 525T-LTD/12, 525T-LTD/20, SS60-SLTD/12, SS60-SLTD/20
1 kW (Optional matching box MB-1000 required)
50B-6, 50B-6B, 200B-5S, 50/200-1T, 526TID-HDD
MB-1000
RU-3423
ST-04MSB
ST-02MSB, ST-02PSB
22S0191
CP20-01111
MJ-MJ-A3SPF0013-035C (5A)

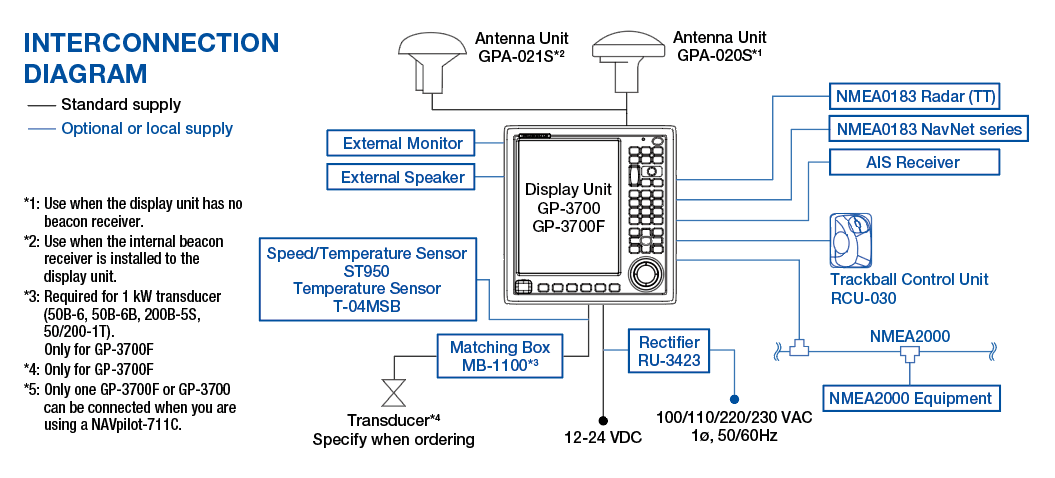

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Jan 7, 2026 | |
| Apr 12, 2024 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
