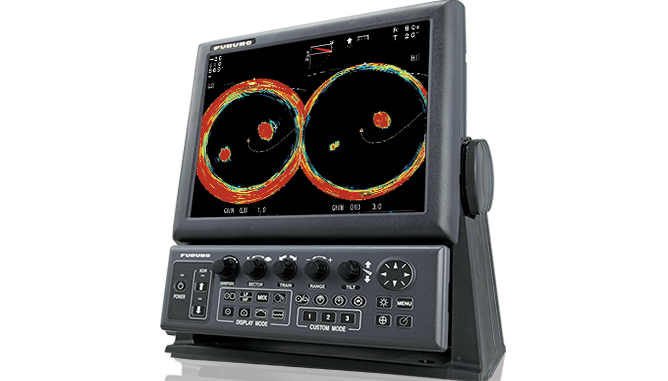

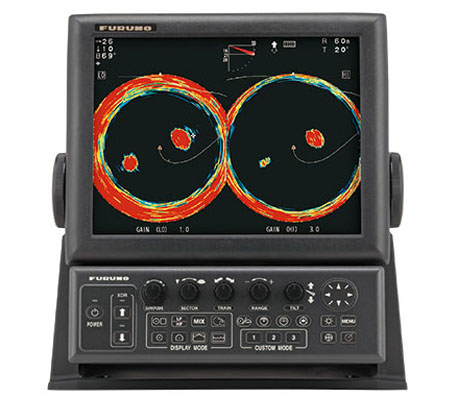

Model CH-600

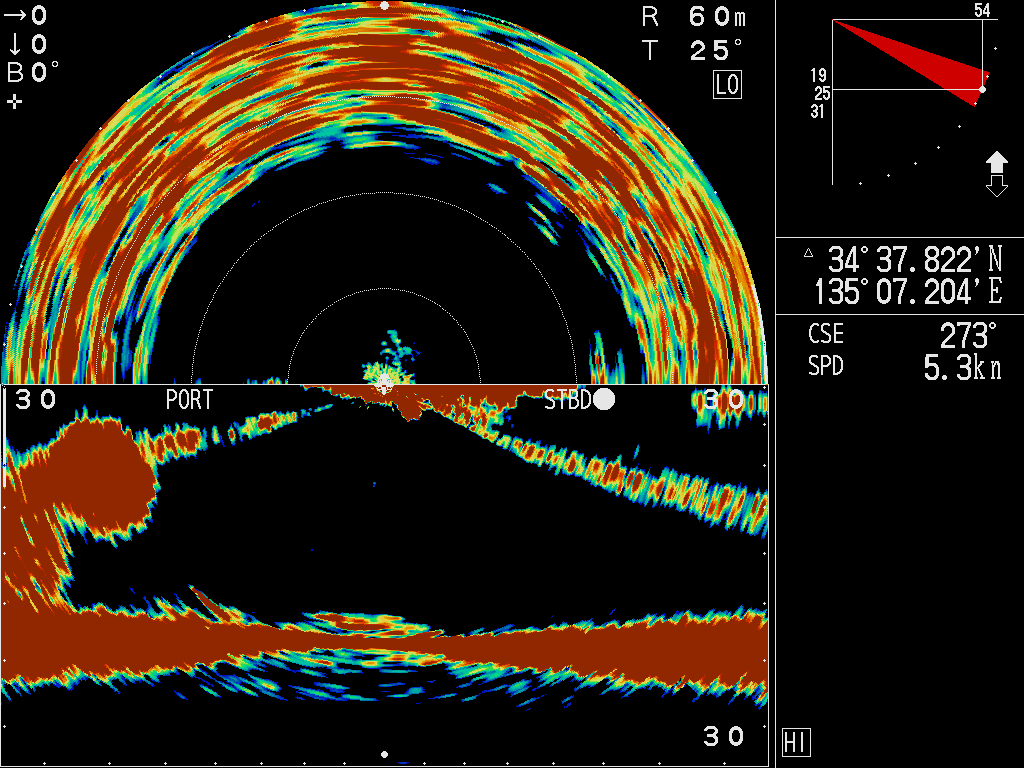

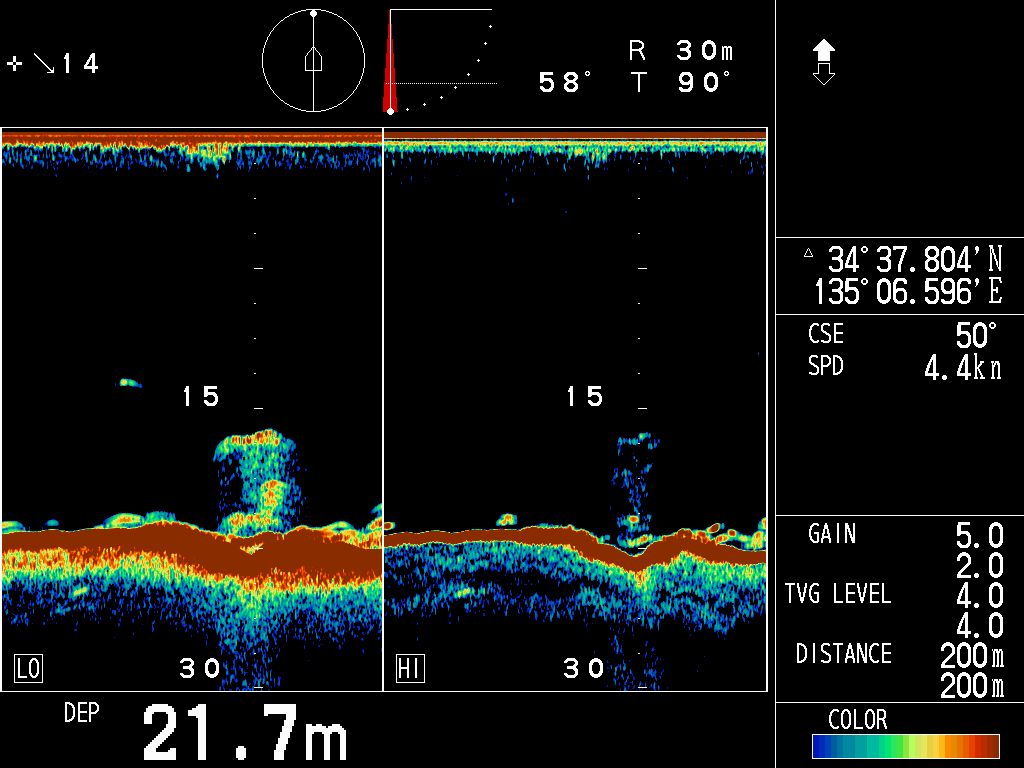

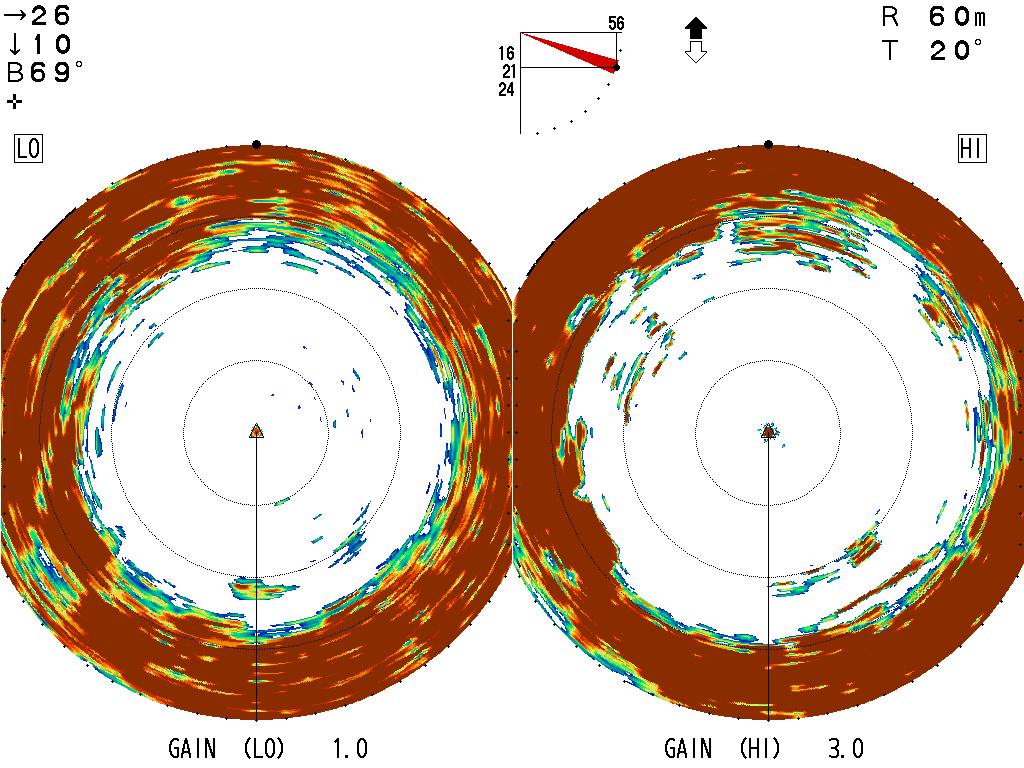

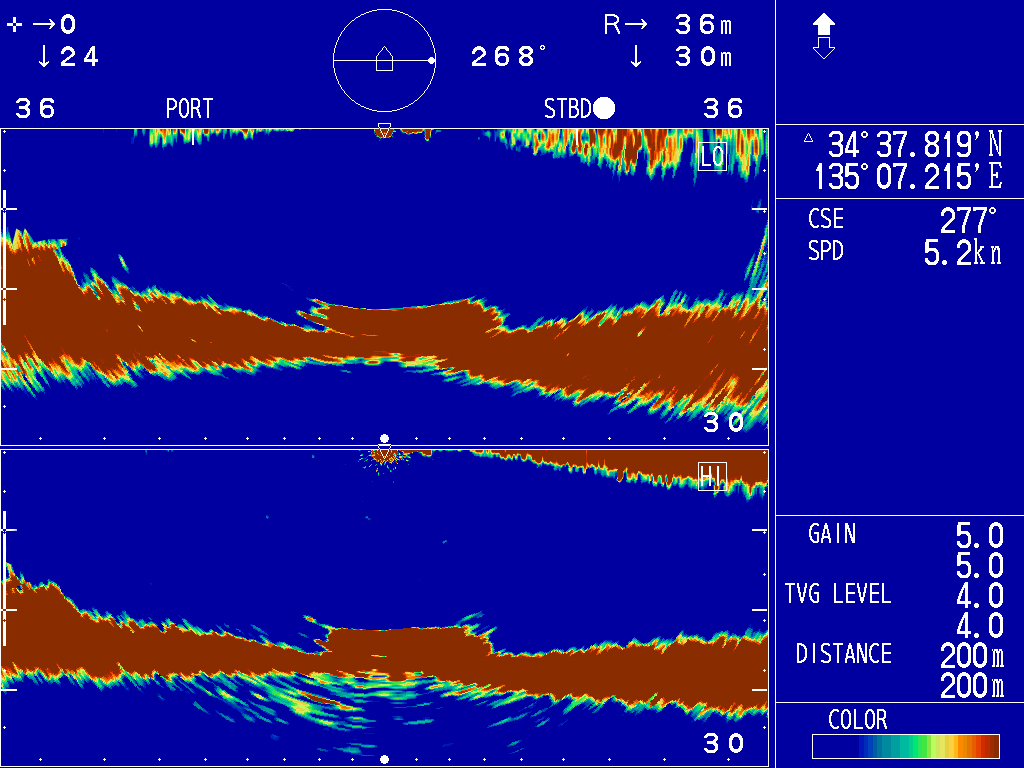

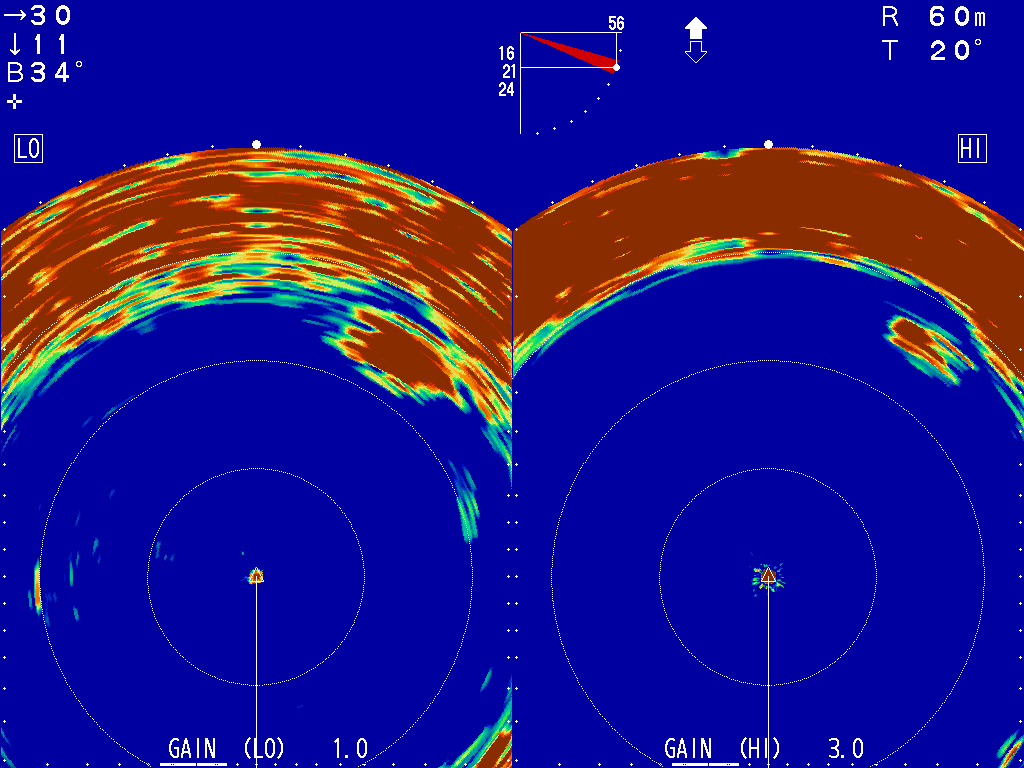

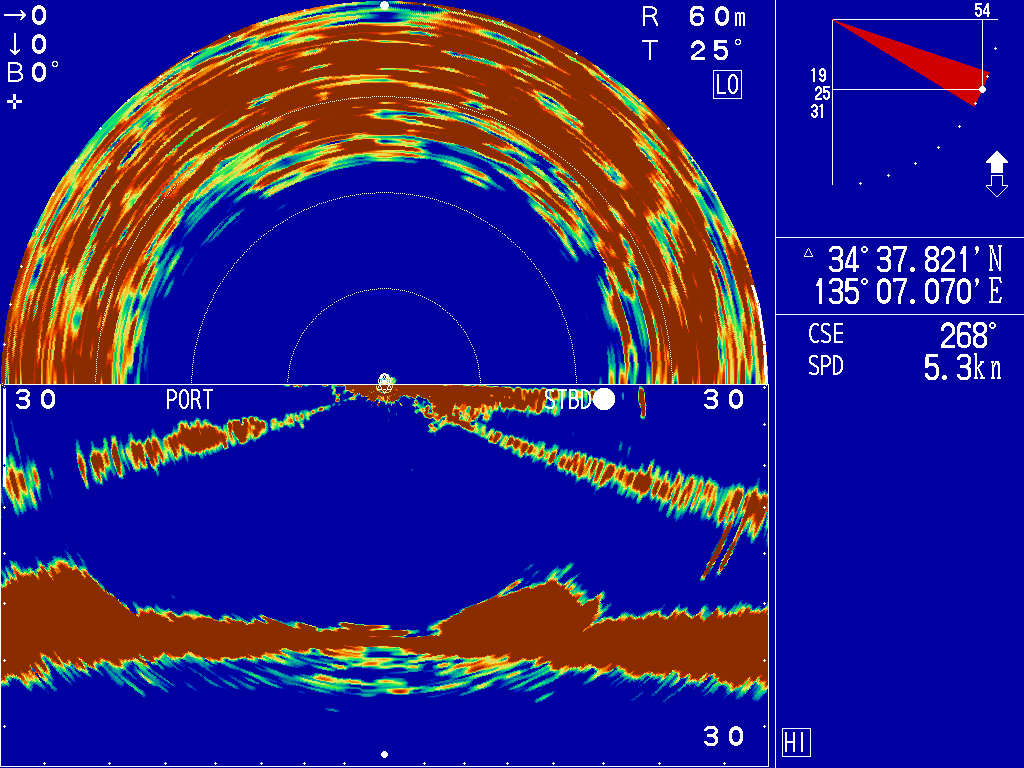

The low frequency will serve to cover a wide area horizontally around the ship, while the high frequency can be used in a vertical profile mode to help identify fish school, including their size and their movement. This information can help in properly deploying a net or steering a better course to reach the targeted school.

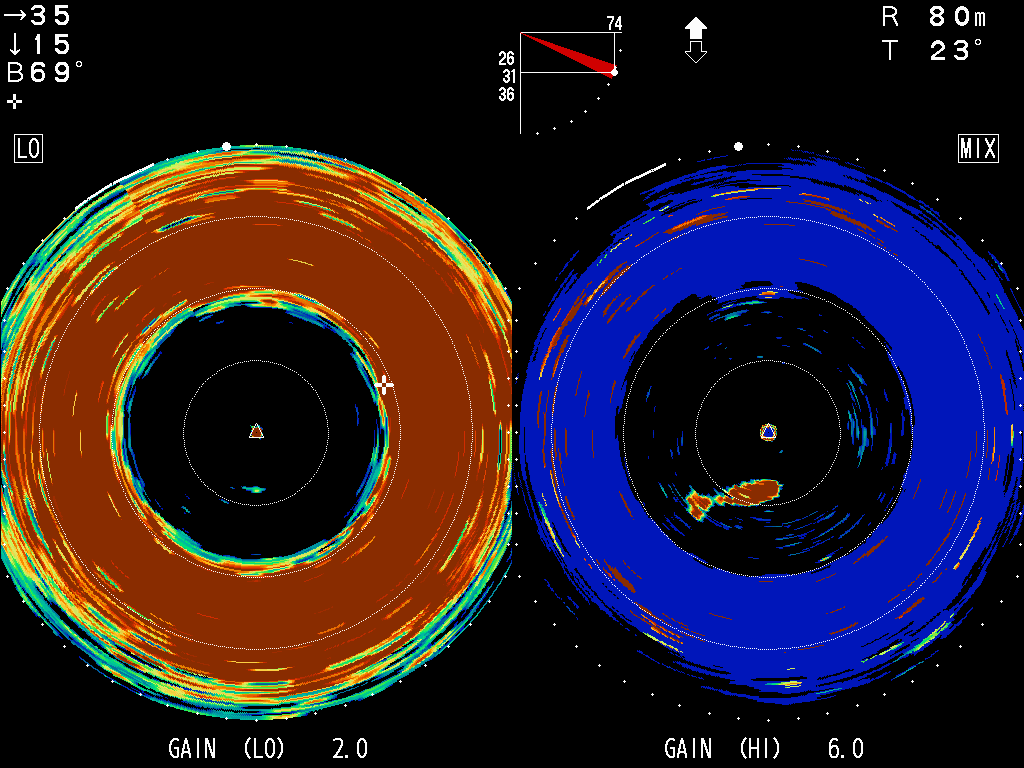

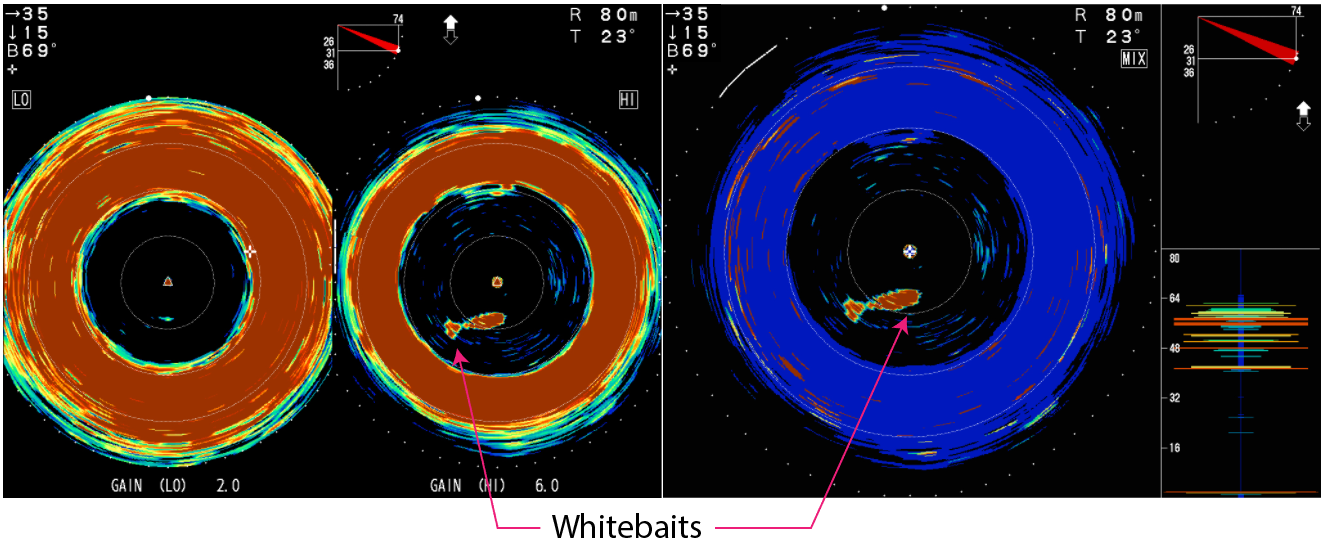

The use of both low and high frequencies shows the echoes that matter most to the fisherman. By comparing the two frequencies, or simply overlaying them, it becomes easy to locate and identify whitebaits.

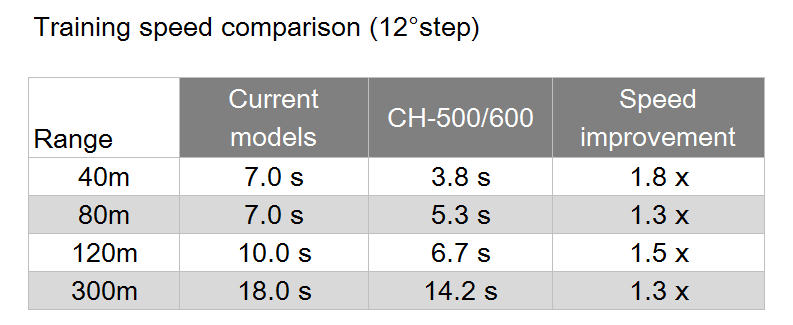

Quick train speeds allow the sonar display to be refreshed at a faster rate aiding in earlier detection of fish and obstructions.

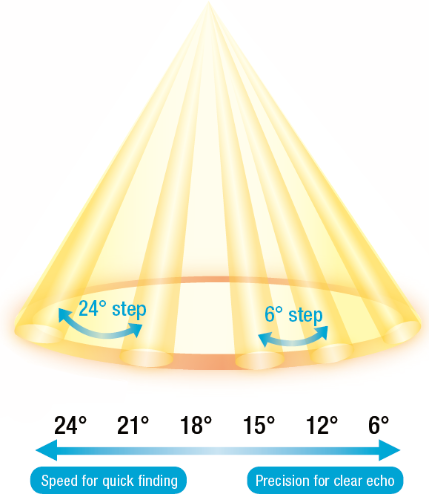

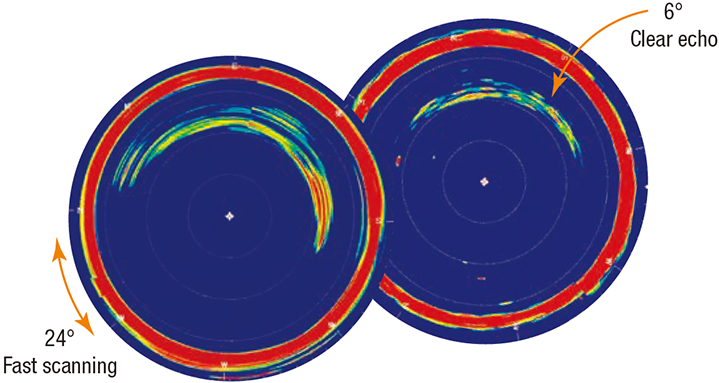

The CH-600 is one of the most comprehensive and fastest sonars of its kind. It provides 6 selectable step variations (6°, 12°, 15°, 18°, 21° or 24°) for high scanning speed that can cover sector widths from 24° to 360° in a couple of seconds. Thanks to its high training speeds, the CH-600 can rapidly scan a large area providing the ultimate fishing and navigational experience.

Expert tip: When moving fast, you can use a wider step angle in order to get a glimpse of the surrounding area. If you detect sonething interesting, slow down and switch to a decreased step angle for clearer echoes.

The CH-600 searchlight sonar is the first of its class to have integrated motion sensors.
In rough seas, vessels tend to move in every direction. This movement can cause inaccurate target information to be displayed. The role of the integrated motion sensors is to precisely compensate for those negative effects and provide accurate data to the user.

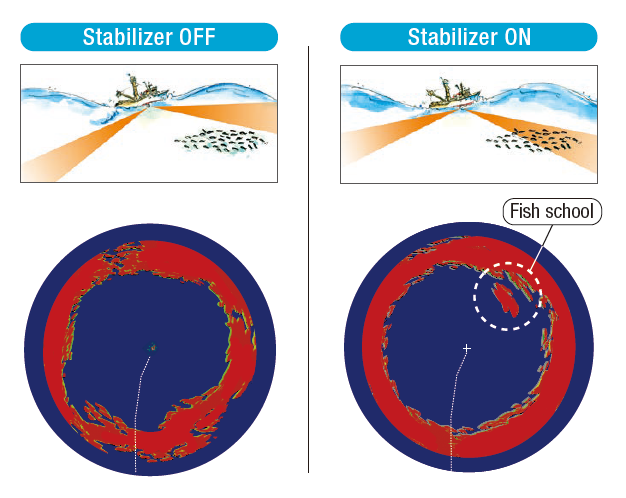

In the right hand picture above, you can see that once the stabilizer is activated, the bottom echo recovers its circular shape. The sonar is then able to provide accurate data in different sea conditions. Thanks to its integrated motion sensors, the CH-600 is able to detect fish that didn’t appear with the non-stabilized echo.

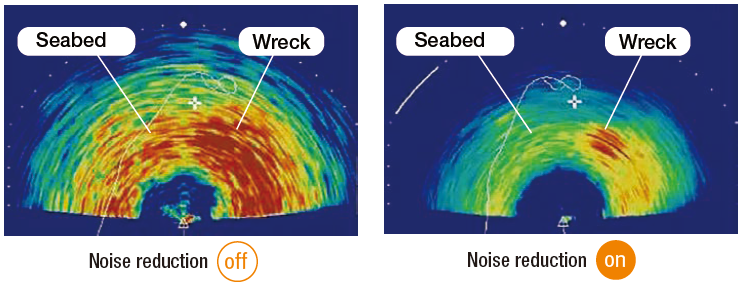

The reverberation reduction offers both better understanding and better appreciation of
the nature of detected echoes. Below is an example of how the Reverberation reduction function highlights the wreck from the surrounding seabed. .

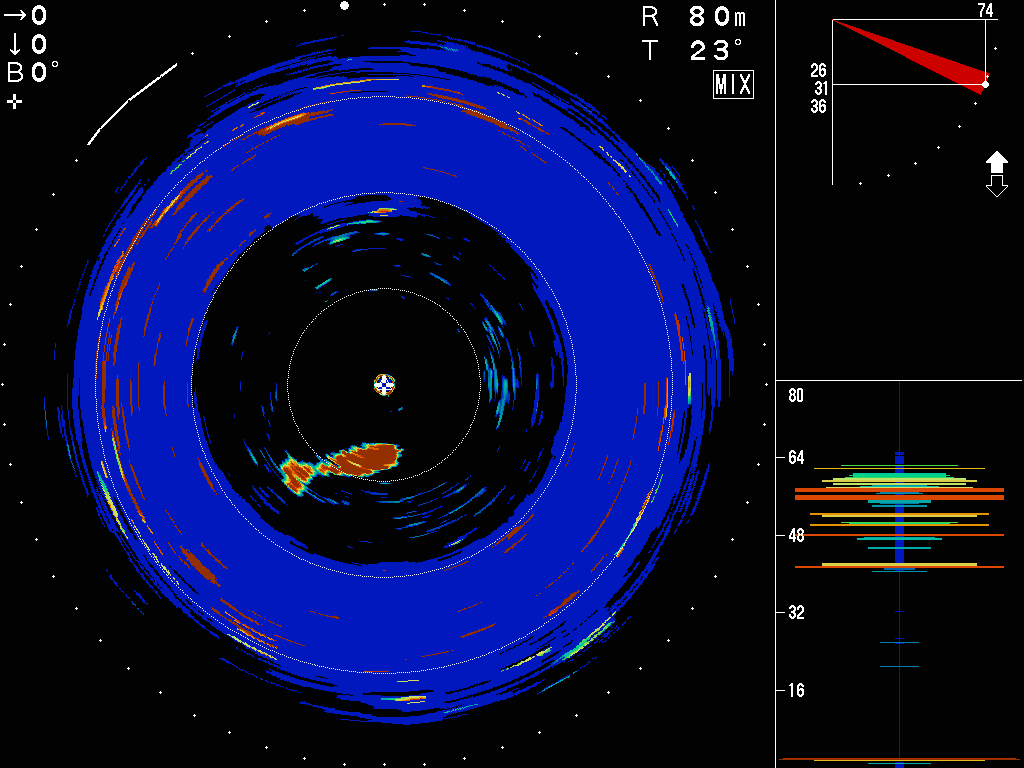

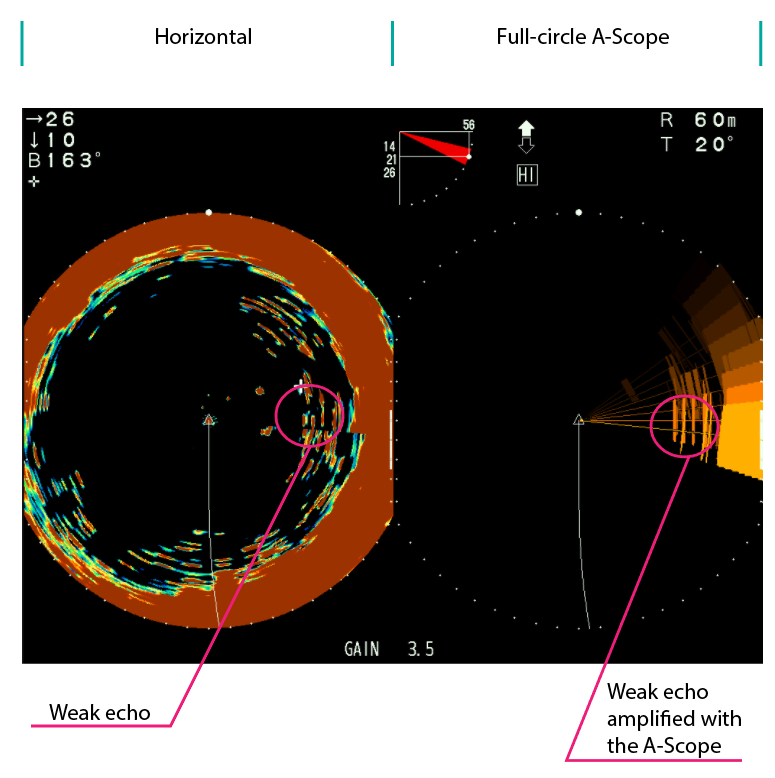

The A-Scope mode shows the last detected echoes with one single color. The nature of the target can be quickly understood as the size of the echo is greatly amplified and even the smallest echoes are shown.

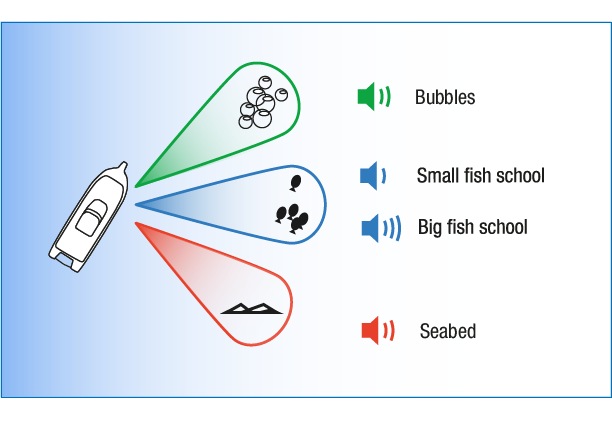

The CH-600 also features fish and obstacle audio signals depending on the nature and the size of the detected object. Whether there are air bubbles, big or small fish schools, and seabed, the emitted sound is different. This feature shows its usefulness when used with the Full-circle A-scope mode, our recommanded combination to know the nature of the target with precision, and during long sea trips, as it frees the user from continuously watching the screen.

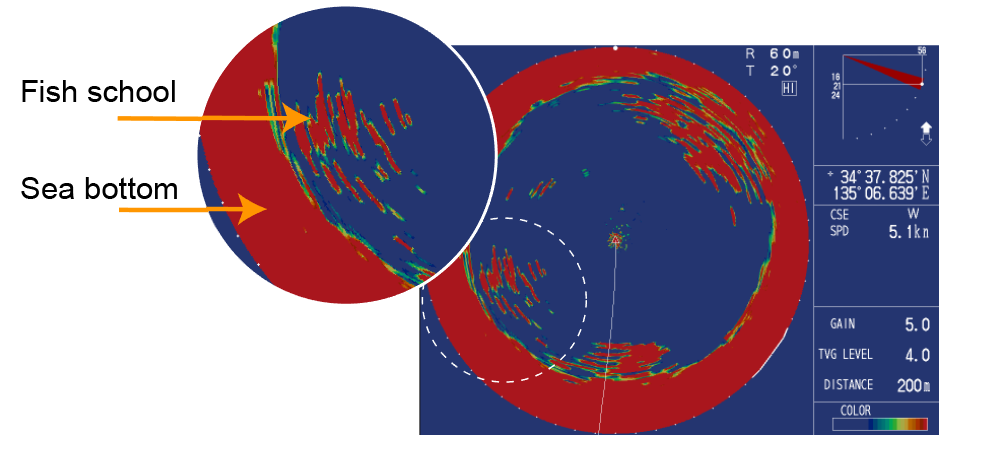

A powerful signal and image processing based on a unique interpolation technology provides images in high resolution. Even if the fish are located near the seabed, the different echoes are clearly shown and easy to understand. Additionally, the high resolution echo display gives crisp, clear echoes, which reduces stress on the eyes.

Keep an eye on the targets while changing the settings in the menu thanks to a semi-transparent window

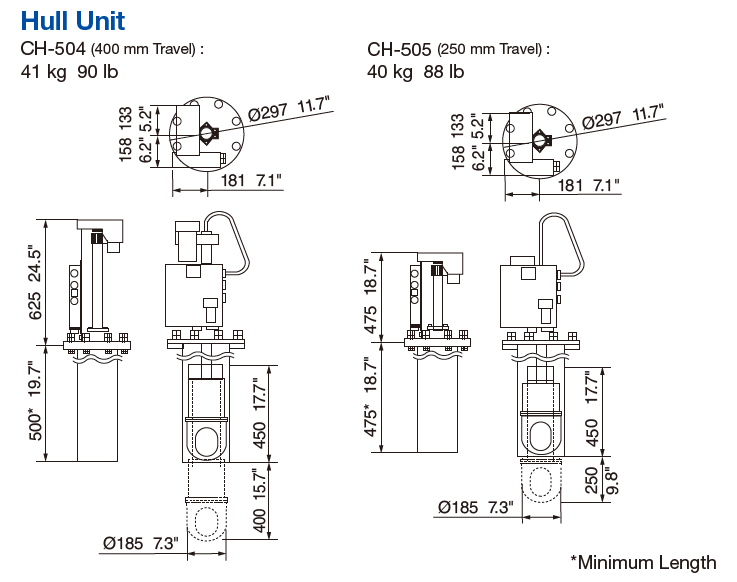

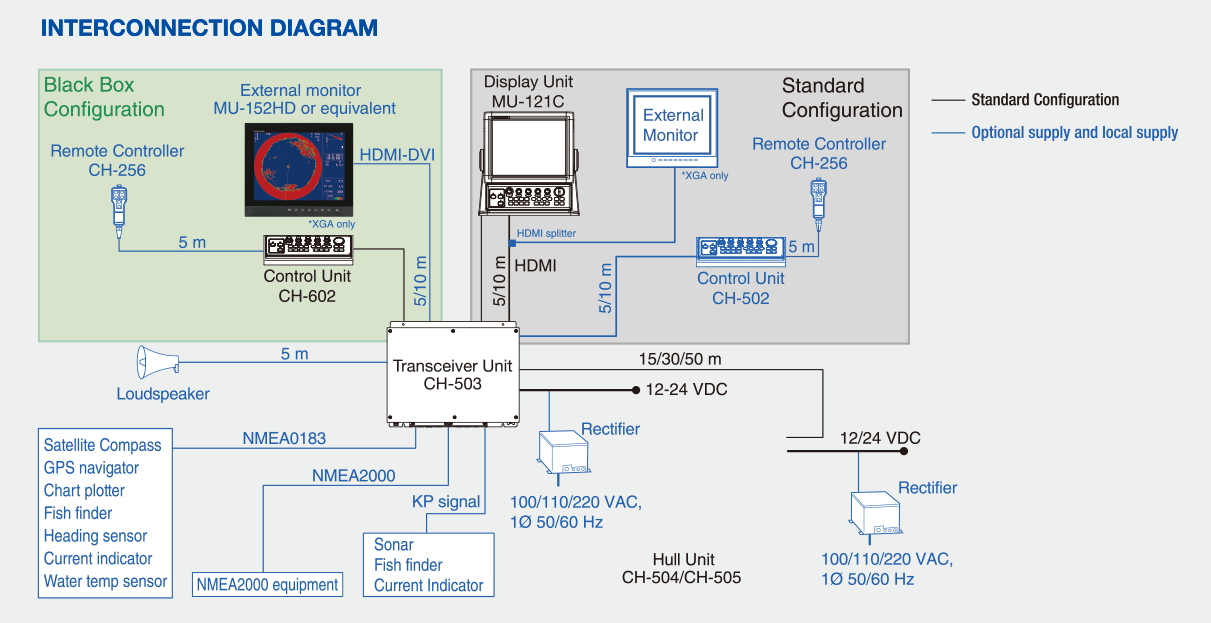

Display unit (MU-121) Control Unit (CH-502), Hull unit and Transceiver unit are all water-resistant (IP55)

Users can freely install their favorite monitor (local supply) if choosing the blackbox configuration

English, Thai, Vietnamese, Chinese, Spanish, Indonesian, Malay, Burmese, French, Norwegian, Italian, Japanese
