Sonar

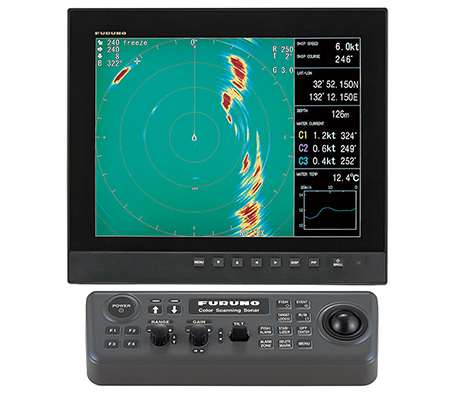

FULL-CIRCLE SCANNING SONAR

Model CSH-5L MARK-2

High power transmitter for long range fish detection and determining changing seabed conditions

Fishing Vessels、Workboats

Downloads

Features
Specifications
Equipment List
What is Scanning Sonar?

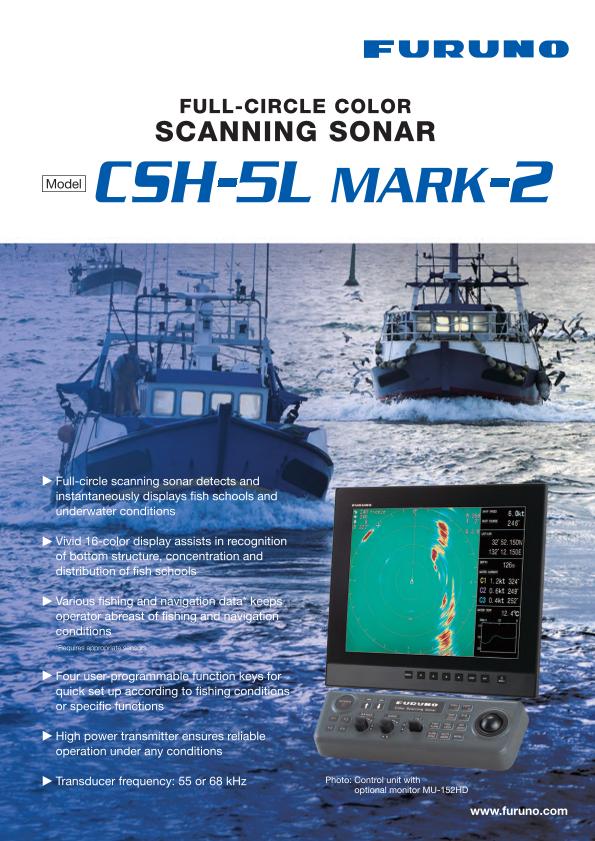

Downloads
Contact

Features

Full-circle scanning sonar detects and instantaneously displays fish schools and underwater conditions

Vivid 16-color display assists in recognition of bottom structure, concentration and distribution of fish schools

Various fishing and navigation data* keeps operator abreast of fishing and navigation conditions

Requires appropriate sensors

Four user-programmable function keys for quick set up according to fishing conditions or specific functions

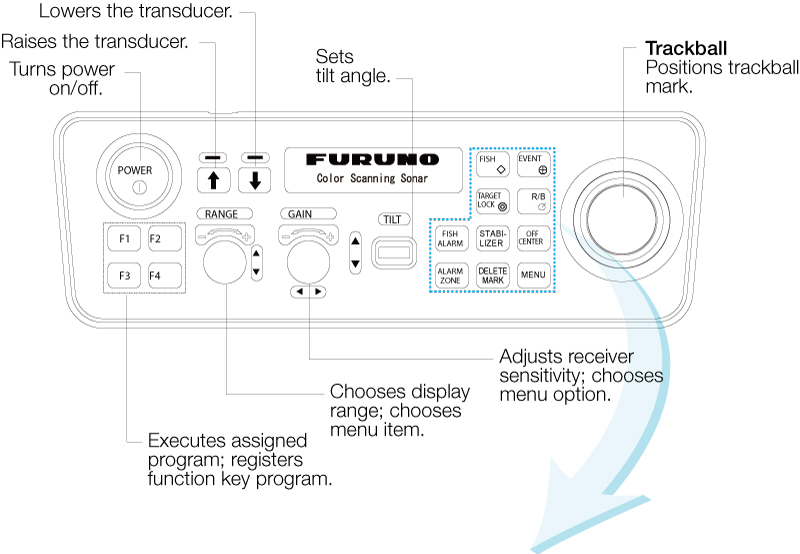

The control unit of CSH-5L MARK-2 combines ergonomics and functions in a user-friendly manner. All controls quickly respond to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation.

FISH:	Inscribes fish mark.	EVENT:	Inscribes event mark.
TARGET LOCK:	Tracks trackball-selected position.	R/B:	Displays range and bearing marks.
FISH ALARM:	Turns fish alarm on/off.	STABILIZER:	Compensates for affects of ship's pitching and rolling.
OFF CENTER:	Shifts the display.	ALARM ZONE:	Sets fish alarm zone.
DELETE MARK:	Deletes selected mark.	MENU:	Opens/closes menu.

High power transmitter ensures reliable operation under any conditions

Transducer frequency: 55 or 68 kHz

With the CSH-5L MARK-2 you can confidently fish in shallow areas and increase your catch

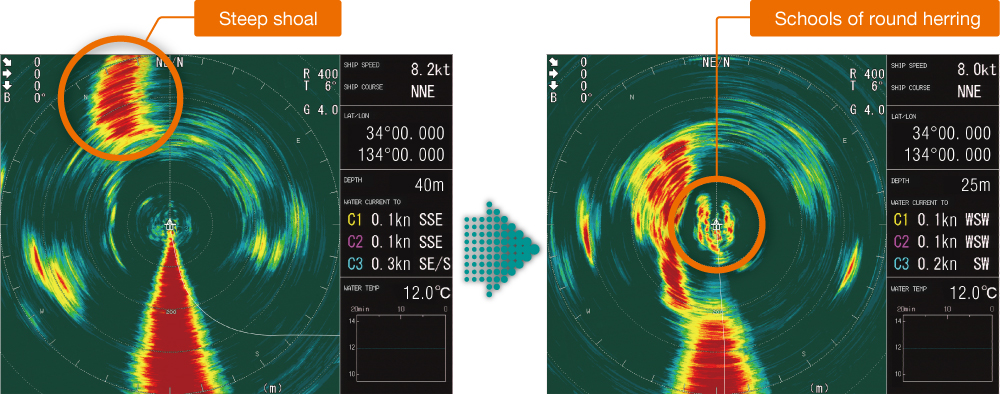

Left image: To the top left a steep shoal is visible. The vessel follows its structure in order to find fish close by.
Right image: Schools of round herring close to the shoal can be seen here. The vessel has turned on its lights to attract the fish.

Specifications

General

Frequency

55 or 68 kHz

Basic Range

50, 85, 100, 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200, 1600 m

Display

Display Unit

15" Color LCD MU-152HD, or PC monitor, 1024 x 768 pixels (XGA)

Pixel Number

XGA (1024 x 768)

Colors

Scan/echo: 16 colors, mark: 1color

Power Supply

Processor Unit

115/230 VAC, 50-60 Hz, 0.4 kVA (Raise 1 kVA)
24 VDC with optional DC-AC inverter

Others

Weight

Processor unit: 3.4 kg
Transceiver unit: 20 kg
Control Unit: 3.5 kg
Hull unit: 70 kg (400 mm travel), 75 kg (600 mm travel)

Equipment List

Standard

PROCESSOR UNIT

CSH-5210-A

CONTROL UNIT

CSH-5211 -A

TRANSCEIVER UNIT

CSH-5130-A-5L

PRE-AMP UNIT

CSH-5020-A

Hull Unit

400 mm or 600 mm travel

Installation Materials, Accessories and Spare Parts

Option

DC-AC Inverter

TR-2451

E/S Interface

VI-1100A

Retractable Tank

OP10-5

Speaker

SEM-21Q

Transducer Cable Extension Kit

Motion Sensor

MS-100

Remote Controller

CSH-7040

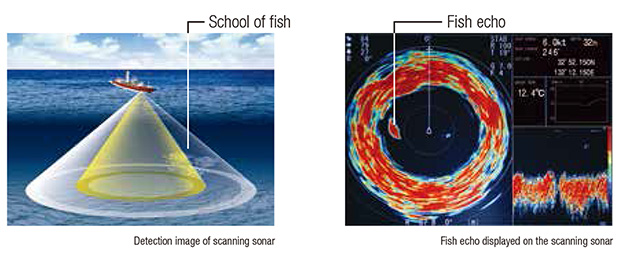

What is Scanning Sonar?

The transducer of a scanning sonar consists of many elements to transmit the echo in all directions simultaneously without rotating the transducer. The echo is redrawn on the display instantaneously according to the latest feedback from the transducer. Because this sonar scans quickly, it greatly improves the fishing operation, especially when searching for/following fast swimming fish.

Extremely Quick Scanning Speed

The CSH-5L MARK-2 completes a scan within 0.54 seconds/scan while the conventional PPI sonar*¹ takes 32 seconds to train full circle under the same range/conditions*².
About 60 times more information is provided compared to a PPI sonar.
Fast scanning lessens the chance of missing a small change in underwater conditions. This is especially helpful when range and tilt require frequent adjustment while fishing, offering no frustration on redrawing time.

CH-250 PPI sonar, training at 6° steps.
Based on 400 m range in combination display mode.

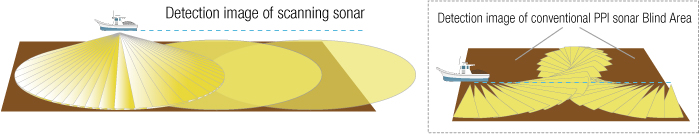

No Blind Area

Scanning Sonar shows the actual situation 360 degrees around the vessel, and gives all the necessary information as needed. No more blind areas to consider, allowing the operator to concentrate on the tilt, range, fishing area, etc.
