- Compass

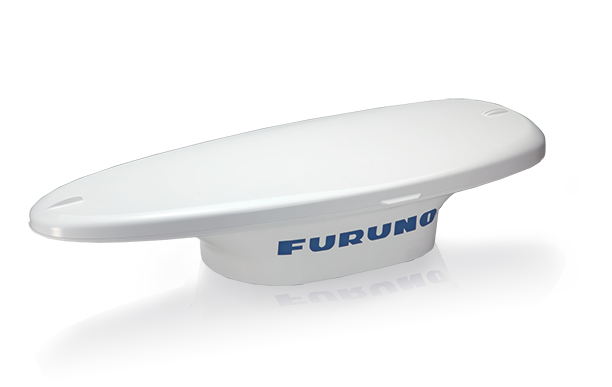

Model SC-33
Heading Accuracy of 0.4°, Strong against multipath, Multi-GNSS, NMEA2000 certified
Perfect for Radar, TT, AIS, Sonars and Autopilots
- Fishing Vessels、Workboats、Recreational Boats
Features
Heading Accuracy of 0.4°
3-AXIS speed monitoring
Strong against multipath, High reliability
Multi-GNSS with GPS, Galileo, GLONASS, QZSS satellite networks
NMEA2000 certified
NavNet TZtouch series compatible
Works perfectly with TIMEZERO software
Free from regular maintenance
Screenshots

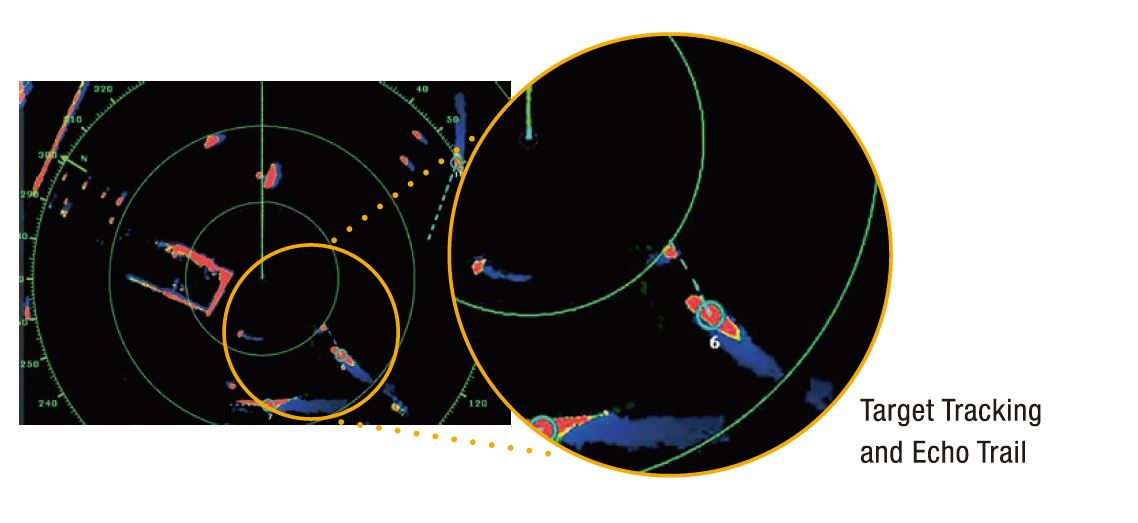

True Echo Trail & Target Tracking
AIS
Specifications
General
L1 1575.42 MHz (GPS/Galileo/QZSS),
1602.5625MHz (GLONASS)
C/A (GPS/QZSS), E1B (Galileo), 10F (GLONASS)
0.4° rms
0.1˚
45°/s
90 s approx.
GNSS 5m approx. (2DRMS, HDOP<4)
SBAS 4m approx. (2DRMS, HDOP<4)
WAAS 3m approx. (2DRMS, HDOP<4)
Port: NMEA2000
Input: 059392/904, 060160/416/928, 061184, 061184, 065240, 126208,
Output: 059392, 060928, 061184, 065280, 126208/464/992/993/996/998, 127250/251/252/257/258, 129025/026/029/033/538/539/540/547, 130310/312/314/316/577/578/816/817/818/819/820/822/823/826,130833/834/842/843845/846/847
-25°C to +55°C
IP56
12-24 VDC: 0.4-0.2 (LEN: 11 @9 VDC)
2.8 kg
Equipment List
Standard
SC-33
FRU-NMEA-PMMFF cable (6m) for NavNet Series or FRU-NMEA-NFF cable (15m) for IF-NMEASC
Option
IF-NMEASC/IF-NMEA2k2
FRU-NMEA-NFF 15/30m

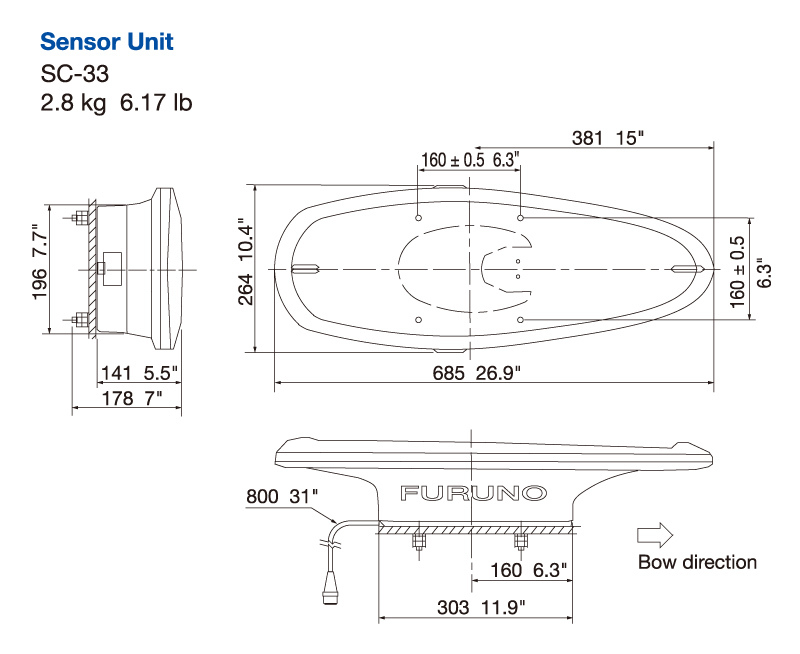

Drawing

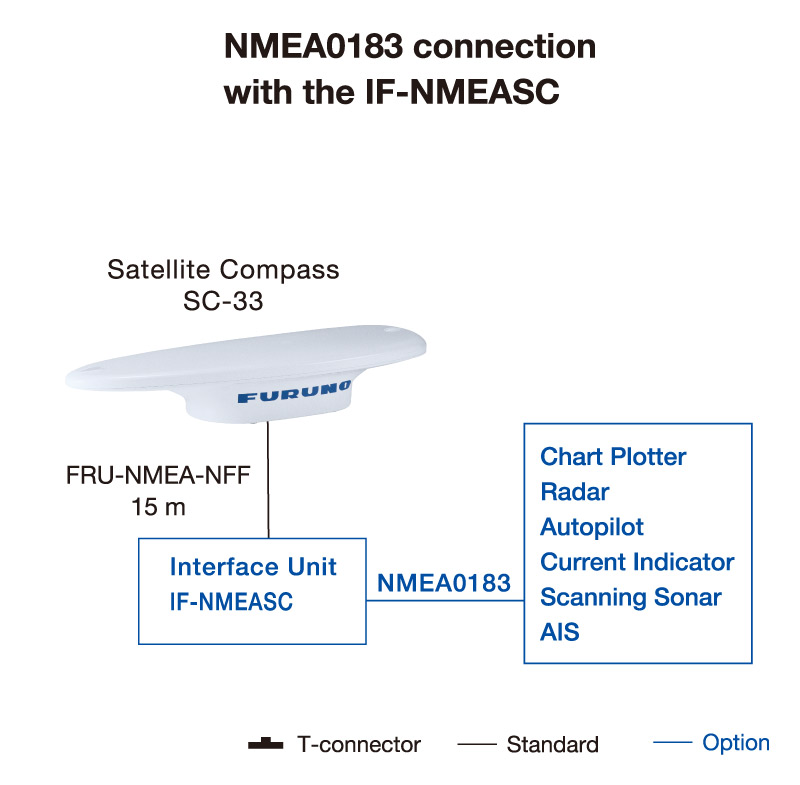

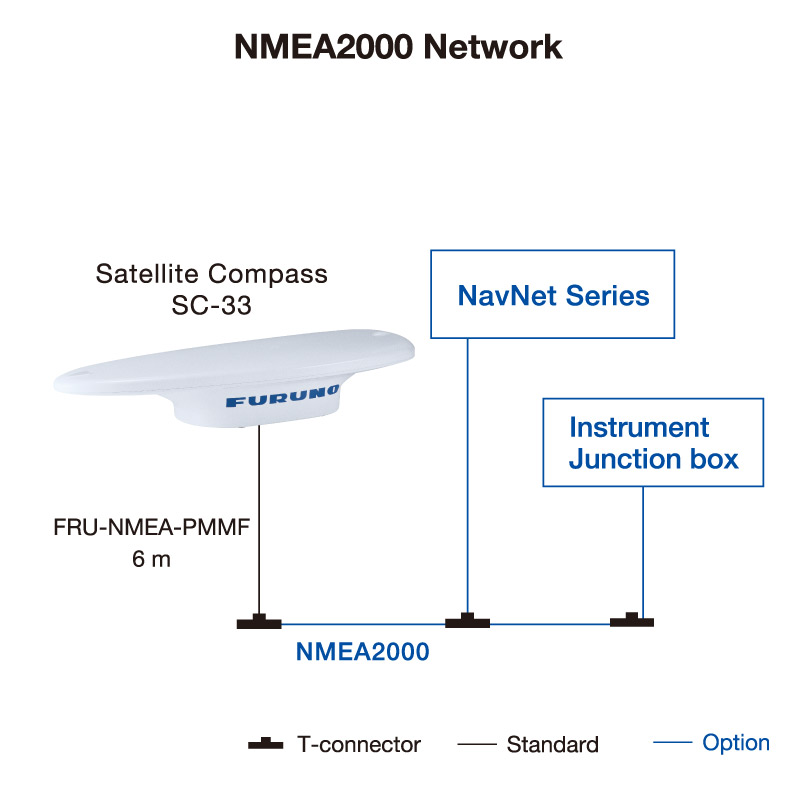

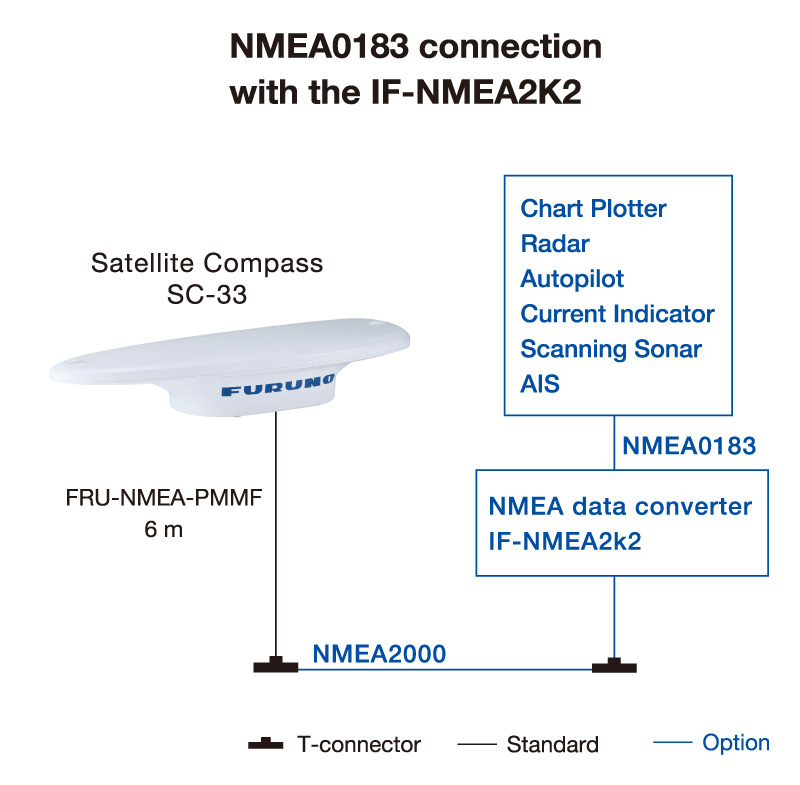

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Aug 18, 2025 |
| Name | Remarks |
|---|---|
|
|
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
