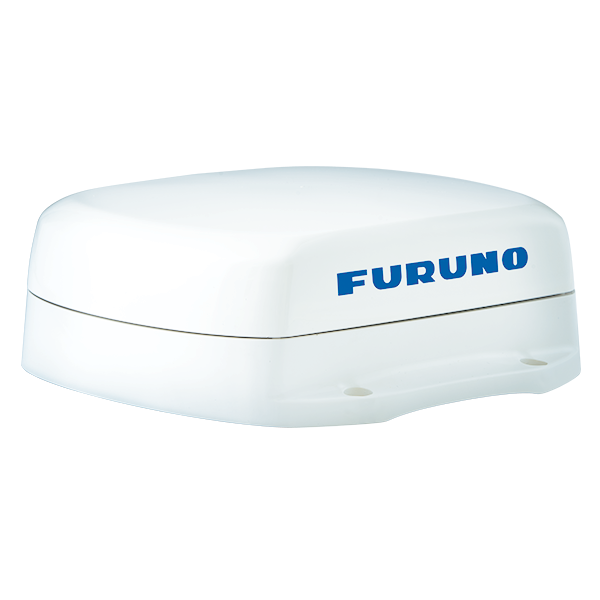

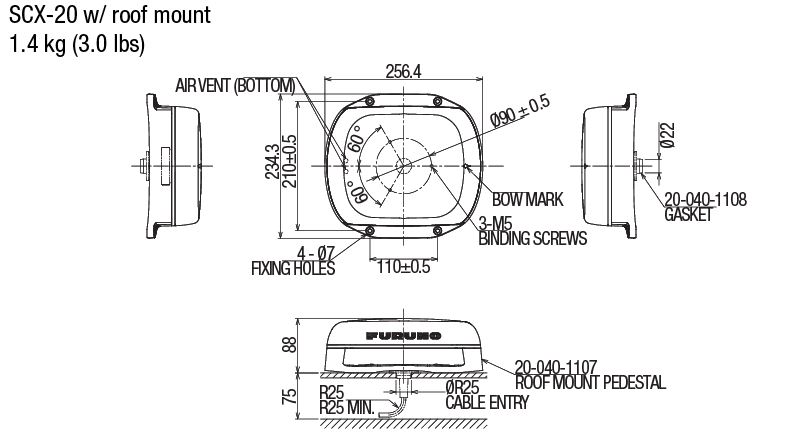

Model SCX-20

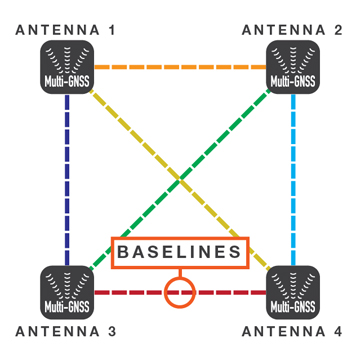

Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-20 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-20 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas. The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.

True echo trails are available when the SCX-20 or SCX-21 is connected to your Furuno Radar, helping to determine own ship’s movement as well as the movement of other vessels. Accurate speed and heading data ensures that target trails are displayed smoothly and accurately, without the jagged, zig-zag appearance common to compasses with a higher degree of devlation.

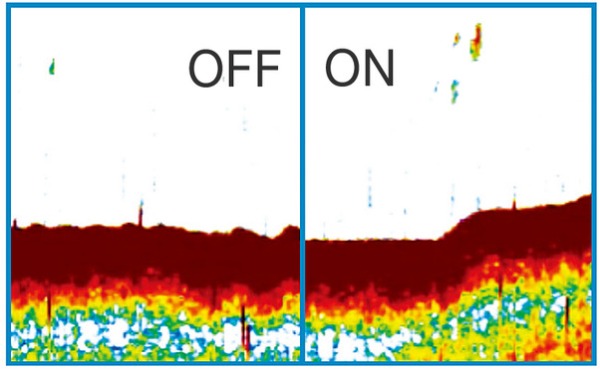

Even in heavy seas, accurate heave compensation from SCX-20 or SCX-21 enable Fish Finders such as the FCV-1150 or NavNet TZtouch/TZtouch2/TZtouch3 to show you an unwavering presentation of the seabed, without the undulations causes by sea conditions.

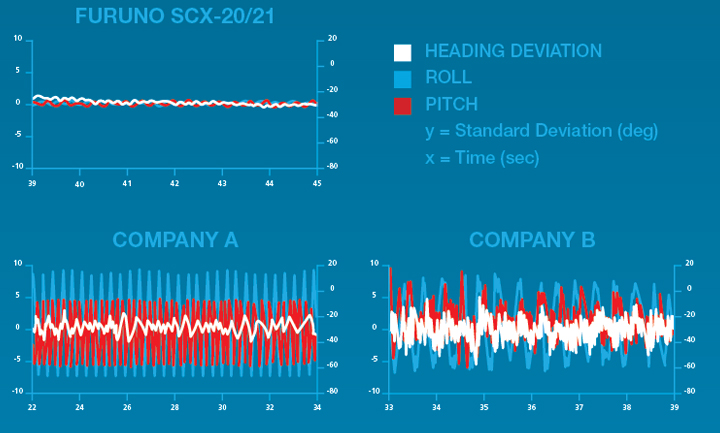

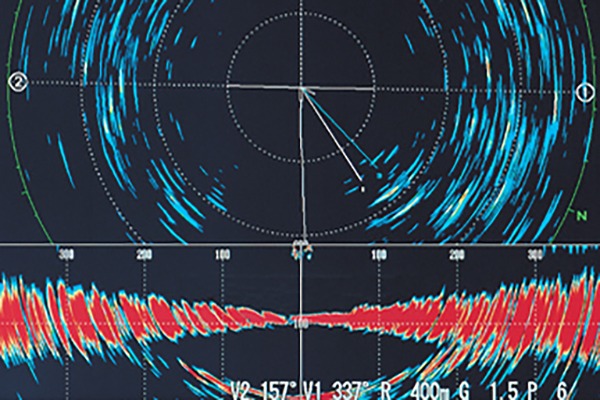

Accurate pitch and roll information allows Furuno Sonar systems to display a steady image on the screen, even in foul weather.

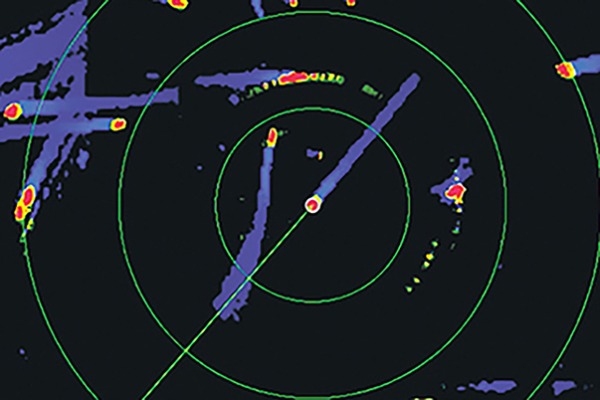

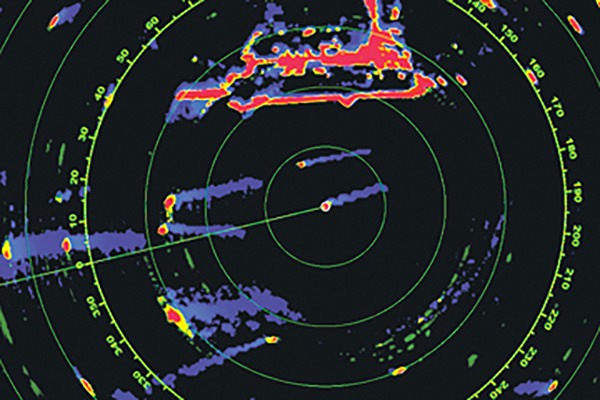

When connected to Furuno SCX-20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX-20/21’s amazing accuracy.

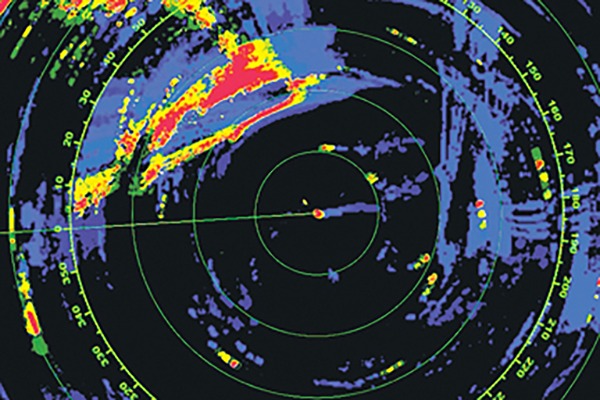

Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible.

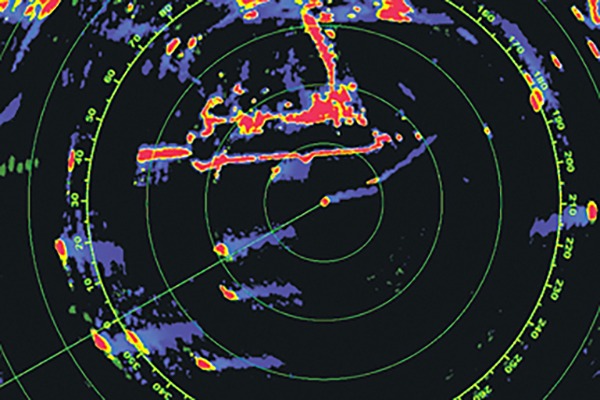

Company B’s heading accuracy fluctuates by +/- 3˚ with a slower update, causing an echo trail that has a wide zig-zag pattern.

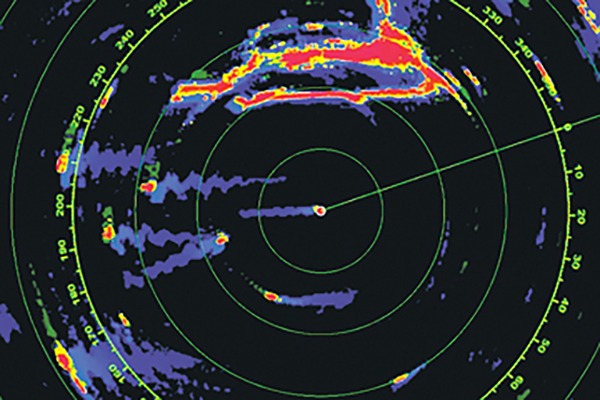

Company C’s heading accuracy fluctuates by +/- 5˚ with a faster update, causing an echo trail that is indistinguishable and confusing.
