- Compass

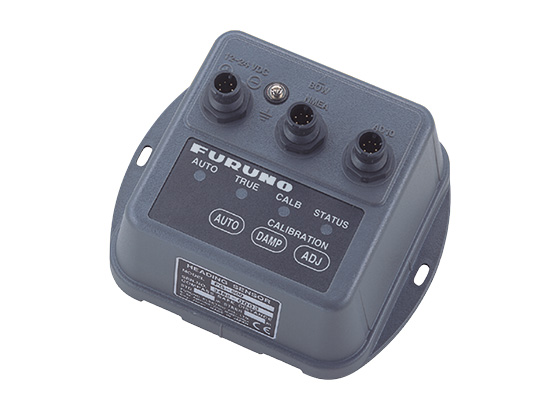

Model PG-500
The PG-500 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-500 virtually maintenance-free and easy to install.
- Fishing Vessels、Workboats、Recreational Boats
Features
Inexpensive heading sensor with the highest accuracy and stability in this class of equipment
Automatic correction for local magnetic variation with an appropriate GPS navigator or manual correction with an optional remote display RD-30
High stability by a solid-state rate gyroscope
Compact waterproof housing with visual status indicators for a simple installation
Three heading data output ports: two IEC/NMEA ports, one AD-10 port
High speed heading data output in IEC 61162-2 format
Specifications
General
±1.0° (horizontal)
0.1°
25°/s rate-of turn
I/O Port (Input): 1 port
I/O Port (Output): 2 ports (one port drives 3 outputs)
Output: FURUNO AD-10 format, IEC 61162-1 (NMEA0183 Ver2.0), HDG, HDT, HDM
Input: IEC 61162-1 (NMEA0183 Ver1.5/2.0), RMC, VTG
-15°C to 55°C
IPX5 (IEC 60529), CFR-46 (USCG standard)
12-24 VDC: 120-30 mA
0.3 kg
Equipment List
Standard
Option
5 M, 10 M
10 M (NMEA0183)
10 M

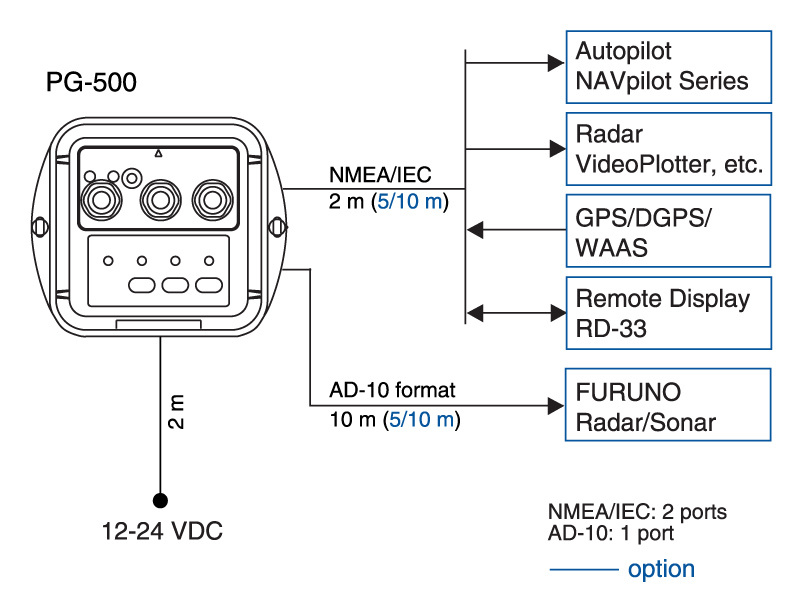

Interconnection Diagram

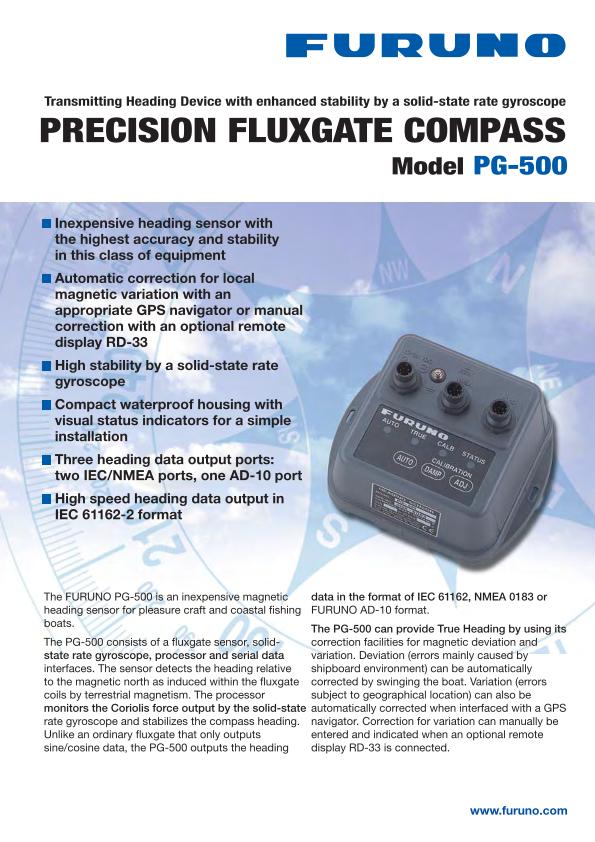

Downloads
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
