INTEGRATED HEADING SENSOR

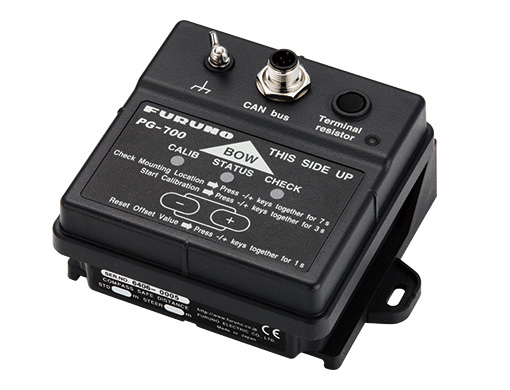

Model PG-700

Fluxgate magnetic sensor with enhanced stability by a solid-state rate gyroscope

The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.

  • Fishing Vessels、Workboats、Recreational Boats

Features

A fluxgate magnetic sensor in conjunction with a solid-state angular rate heading

Offers a high level of accuracy and stability : ±1.0°

Compact unit with L-bracket allows flexible installation

Automatic magnetic field distortion correction

Provides precision heading data to FURUNO CAN bus devices

Specifications

General

Heading Accuracy

±1.0° (horizontal)

Heading Resolution

0.1°

Follow-up

100°/s rate-of turn

Interface

CAN bus: 1

Temperature

-15°C to +55°C

Waterproofing

IP55

Power Supply

12 VDC (9-16 VDC)

Weight

floor mounting: 0.31 kg
bulkhead mounting: 0.35 kg

Equipment List

Standard

SENSOR UNIT PG-700-E
6M CABLE

FOR CAN bus AND INSALLATION MATERIALS

Option

JUNCTION BOX

FI-5002

DROP CABLE ASSY

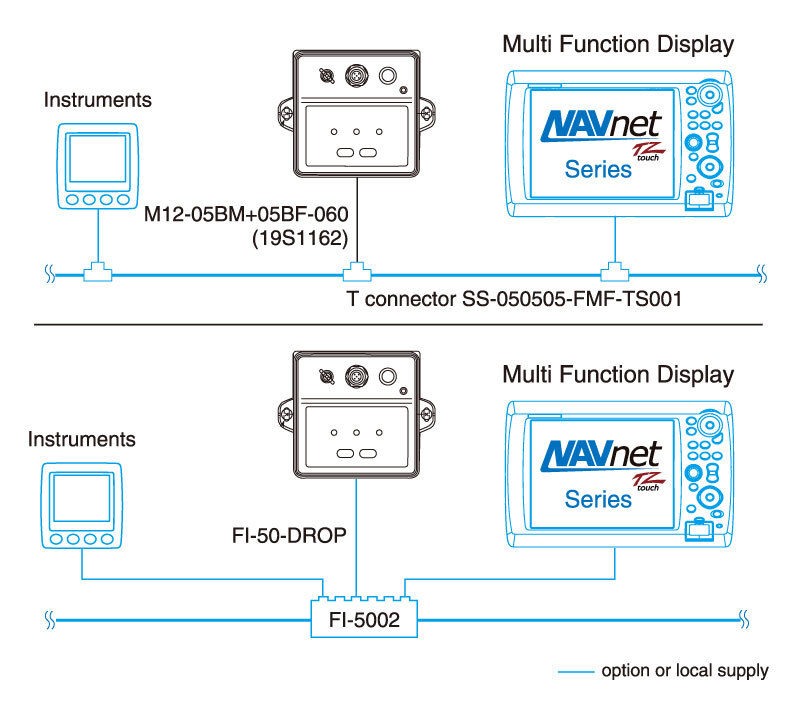

Interconnection Diagram

Downloads

PG-700 Brochure

PG-700 Brochure
(Last update: Mar 1, 2024)

GENERAL CATALOG 2025 (For Recreational Boats)

GENERAL CATALOG 2025 (For Recreational Boats)
(Last update: Apr 9, 2025)
