FISH SIZE INDICATOR Model FCV-2100-MARK-2 NEW

Experience a higher level of accuracy and clearer target images to make the most of your time fishing!
- Combining Split Beam and TruEcho CHIRP™ -

By combining Split Beam technology with FURUNO's TruEcho CHIRP™, we have simultaneously improved fish size measurement accuracy and achieved higher-resolution target images.
This makes it easier to discern fish outlines in order to detect fish size in densely packed schools within the mid-surface layer zone, or to discriminate single fish near the seabed.

Fishing Vessels Workboats
TruEcho CHIRP technology SPRIT BEAM FURUNO Digital Filter Auto Tuning (Sensitivity) Black Box

Related Contents

Features

  • Display remarkably accurate fish size measurements in easy-to-understand graph form*

    The FCV-2100-MARK-2 measures the size and distribution of fish in the selected school, and displays this information in a graph that can be understood at a glance. TruEcho CHIRP™ technology has improved the accuracy and reliability of fish size measurements and graphs.
    * Fish length is a reference value calculated from reflection intensity.

  • Accuracy of fish size measurement has been improved by implementing the Split Beam technology

    Size of fish is estimated from the reflection intensity of a single fish.
    To accurately measure the reflection intensity of a single fish, it is necessary to measure the direction and position of the single fish within the beam. The split beam method uses four transmitting and receiving channels to accurately identify the direction and position of a single fish within the beam angle, and provides more accurate size of fish than conventional methods.

  • Simultaneously displays fish size measurements in three specific areas

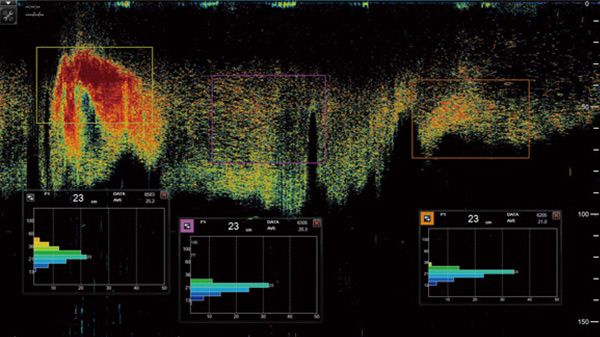

    The FCV-2100-MARK-2 can measure and display fish sizes in three locations at the same time. This allows you to compare and analyze fish size and school composition, which makes for more efficient fishing, such as aiming for fish of a particular size.


    Example of fish size graphs showing sardines at different school densities.

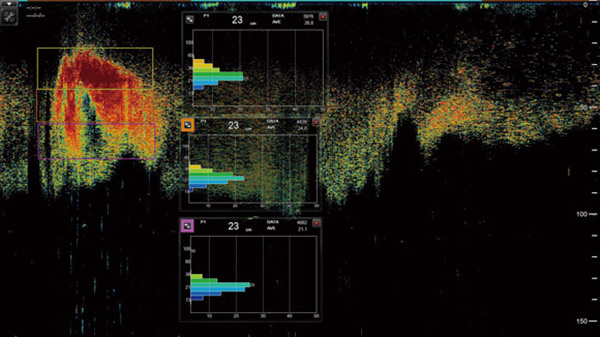

    Example of fish size graphs of sardines over time.
  • Simple operation with trackball and InstantAccess bar™

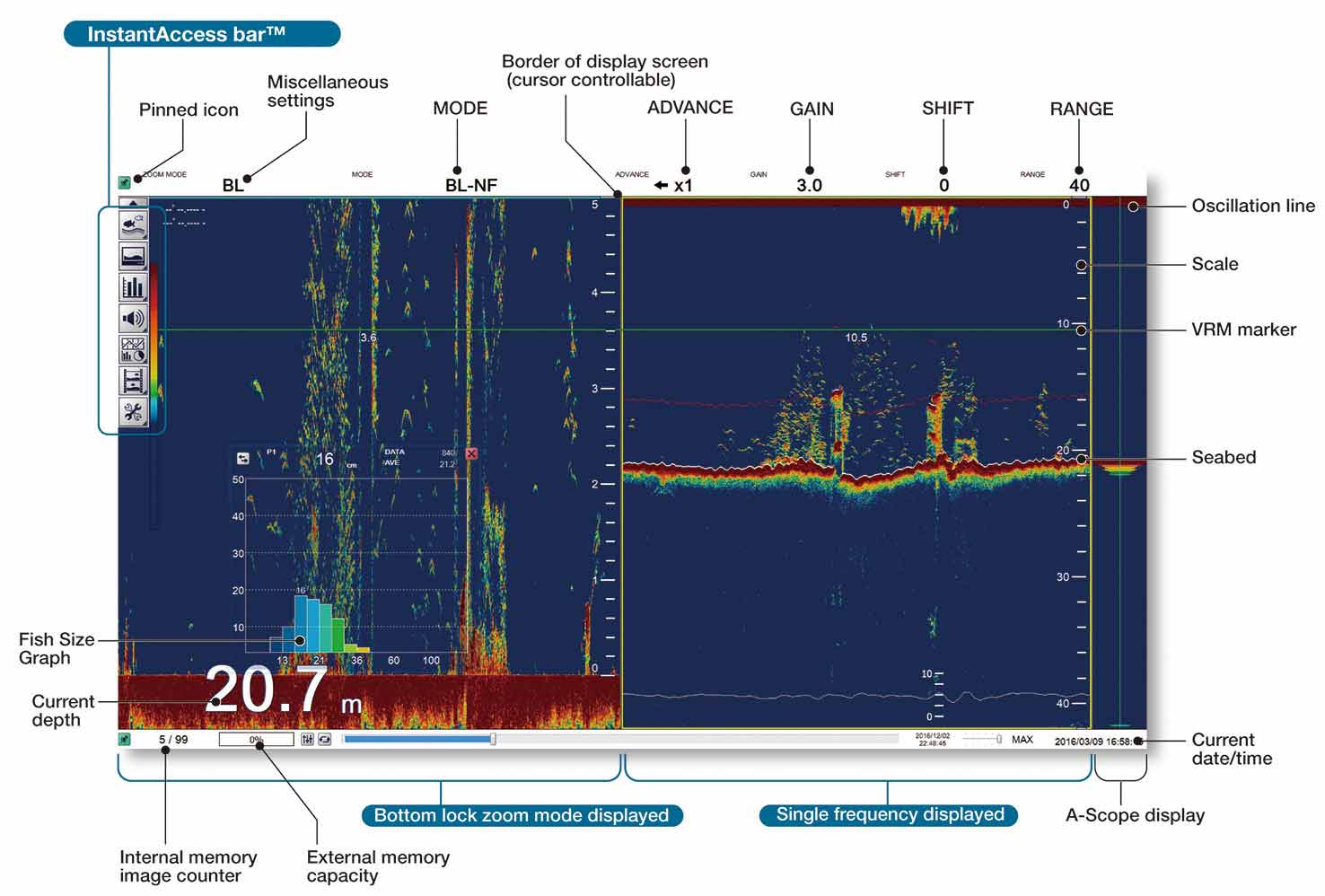

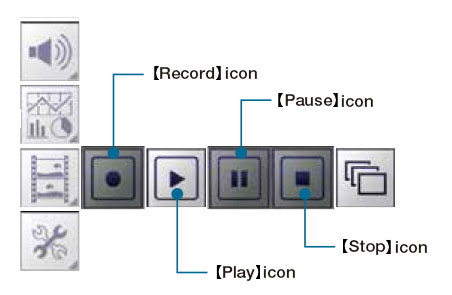

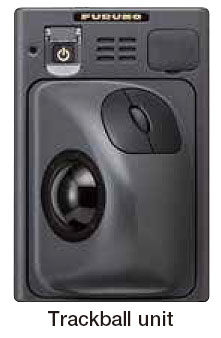

    The FCV-2100-MARK-2 can be operated easily and quickly with its trackball. The screen header also contains Range, Shift, Sensitivity, Image Feed, and Display Mode menus that can be immediately accessed when required. Other functions can also be accessed immediately by setting them in the InstantAccess bar™ as desired*.
    * Up to 10 icons can be set in the InstantAccess bar™

  • Echo data can be recorded and played back

    A maximum of 99 still images can be saved on the processor unit. The maximum number that can be saved externally depends on the capacity of the external recording medium*. Echo data can also be saved to an external medium with a capacity of 500 GB or more*.
    * Local Supply

  • Checking past images with the convenient scroll-back mode

    By scrolling the screen back, you can review past images. A very useful feature for when you want to see a school of fish that has passed by.

  • Makes your fishing operation more efficient

    By identifying the approximate size of the targeted fish beforehand, the FCV-2100-MARK-2 enables selective fishing, making fishing operations more efficient.

  • Connect to High-Power DFF3-UHD Network Fish Finder* for greater depths

    Up to three echo images at different frequencies can be displayed in one screen.
    The differences in responses for each fish species are clearly visible at a glance, which helps in identifying and estimating the species.
    * DFF3-UHD network Capitalize Fish Finder are sold separately.
    DFF3-UHD operating at 2kW or 3kW for detecting fish in deeper water.
    Only one can be connected.

  • Stable searching with heave correction function*

    The heave correction function enables the ability to show you an unwavering presentation of the seabed, without undulations caused by sea conditions.
    * Requires connection to Satellite Compass™.

Specifications

FISH FINDER

Frequency
100 kHz nominal
Transducer
1 kW, FM transmission
Range Scale
10 to 800 m
Pulselength & PRR
800 pulse/min or less
Display Mode
Single mode, Zoom, External sounder display, Bottom-lock expansion, Bottom zoom, Marker zoom, Discrimination zoom
Range Shift
800 m max.

OTHERS

Power Supply
Transceiver unit : 24 VDC, 1.6 A
Processor unit : 12-24 VDC, 4.0-2.0 A
Size
Processor unit : 449 (H) x 376 (W) x 98 (D)
Transceiver unit : 364 (H) x 390 (W) x 75 (D)
Transducer : 135 (H) x 160 (W)
Weight
Processor unit : 8 kg
Transceiver unit : 5.2 kg
Transducer : 7 kg

Equipment List

Standard

  • Processor Unit (FCV-2101-MK2) 1 UNIT
  • Trackball Control Unit (RCU-026 with 5 m cable) 1 SET
  • Transceiver Unit (FCV-2102-MK2) 1 UNIT
  • Transducer (FCV-2103 with 30 m cable) 1 SET
  • Spare Parts, Installation Materials 1 SET

Option

  • Rectifier Unit PR-62
  • AC/DC Power Supply Unit PR-241
  • HDMI/DVI Cable
  • LAN Cable
  • Flush Mount Kit for Trackball Control Unit OP24-27
  • Ferrite Core
  • Installation Materials

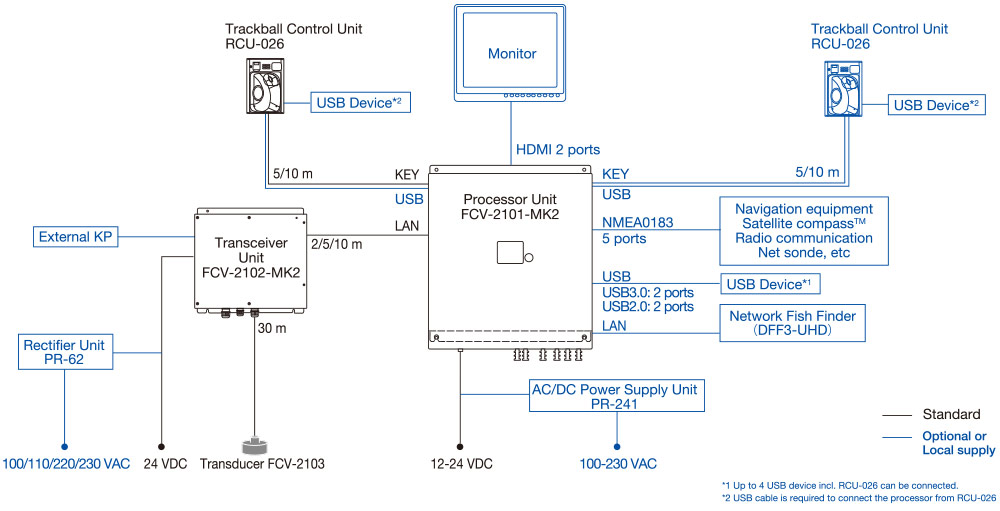

Interconnection Diagram

Documentation

* Specifications subject to change without notice.
