Fish Finder

10.4" COLOR LCD SOUNDER Model FCV-295

New digital fish finder delivers crystal clear image of fish targets and bottom structure

The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.

Recreational Boats Fishing Vessels Workboats
Auto Tuning (Sensitivity)

Related Contents

Features

  • 10.4"bonded color LCD provides clear view in any weather conditions

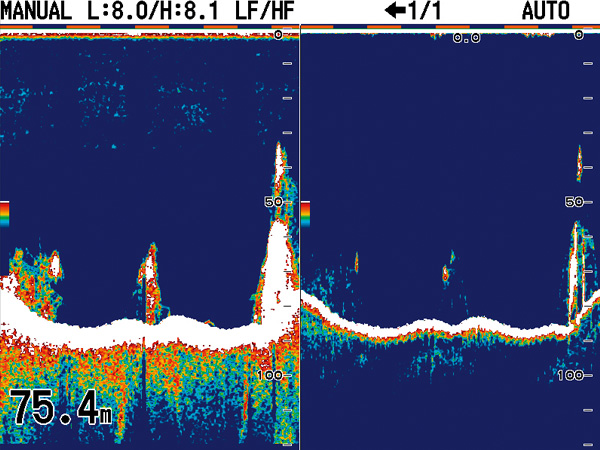

  • Post-processing gain control applies to all existing returns on the display

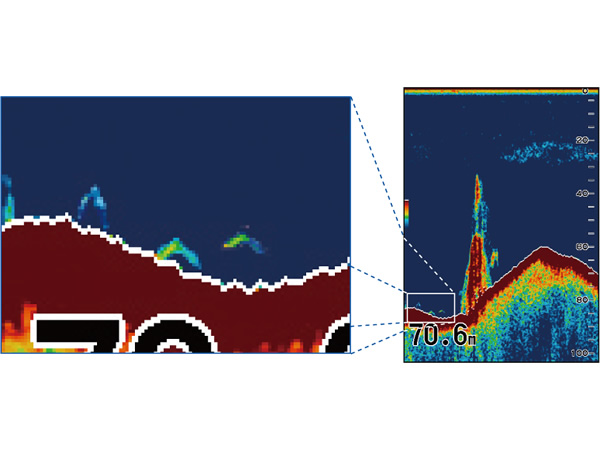

  • White Edge function trace the bottom contour with a thin white line

  • FURUNO Digital Filter delivers crystal clear target presentation

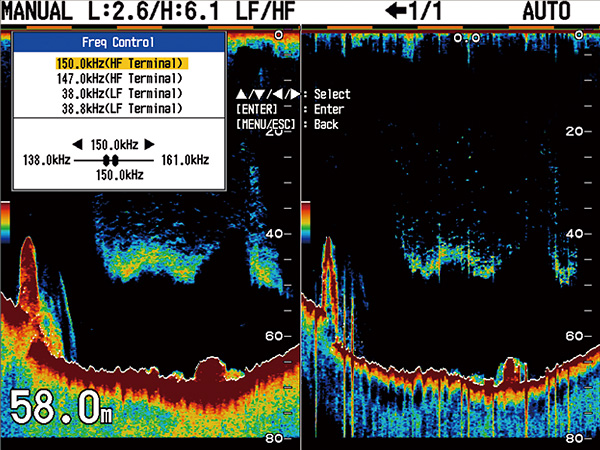

  • FURUNO Free Synthesizer transceiver allows adjustable operating frequency

Specifications

DISPLAY

Display unit
10.4" TFT color LCD
Pixel number
640 x 480

FISH FINDER

Frequency
The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer
1, 2 or 3 kW
Range Scale
5-3000 m
Pulselength & PRR
20-3000 pulse/min
Display Mode
Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing
IP55 (When flush mounted)
Power Supply
12-24 VDC: 2.6-1.3 A
100/110/220/230 VAC, optional rectifier required
Size
306 (H) x 323 (W) x 185 (D)
Weight
7.0 kg

Equipment List

Standard

  • DISPLAY UNIT FCV-295-E 1 UNIT
  • STANDARD SPARE PARTS, INSTALLATION MATERIALS,
    ACCESSORIES AND MANUALS
    1 SET

Option

  • 1 KW TRANSDUCER 200B-5S (10 M)
    28F-8
    50B-6 (10 M)
    50B-6B (15 M)
    50B-9B
    88B-8
  • 2 KW TRANSDUCER 200B-8
    200B-8B
    28BL-6HR
    28F-18
    38BL-9HR
    50B-12
    50BL-12
    50BL-12HR
    82B-35R
    88B-10
  • 3 KW TRANSDUCER 28BL-12HR
    28F-24H
    38BL-15HR
    50BL-24H
    50BL-24HR
    50F-24H
    68F-30H
  • 5 KW
    TRANSDUCER
    200B-12H
    88F-126H
  • DUAL FREQUENCY TRANSDUCER
    50/200-1T (RUBBER)
    1 KW
  • 2P TWISTED PAIR CABLE 5M、10M、15M
  • SIGNAL CABLE ASSEMBLY 5M
  • ADAPTOR CABLE ASSY
  • THRU-HULL PIPE NO.4
    NO.5
    NO.6 (2 holes)
    NO.7 (2 holes)
    NO.11 (2 holes)
  • RECTIFIER (CHINA) PR-62
    (100 VAC/220 VAC)
  • SPEED/TEMPERATURE SENSOR
    ST-02MSB (USA)
    10M
  • SPEED/TEMPERATURE SENSOR
    ST-02PSB (USA)
    10M
  • TEMPERATURE SENSOR
    T-02MSB
    10M
  • TEMPERATURE SENSOR
    T-02MTB
    10M
  • TEMPERATURE SENSOR
    T-03MSB
    10M

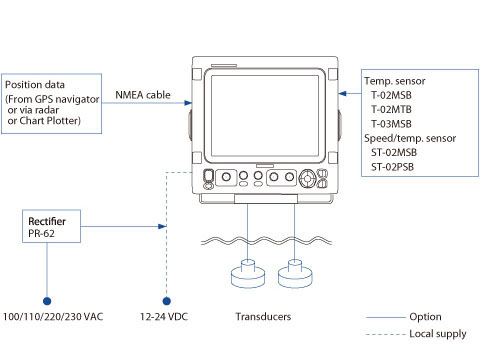

Interconnection Diagram

Documentation

  • FCV-295 Brochure
    (Last update: Mar 23, 2023)

* Specifications subject to change without notice.
